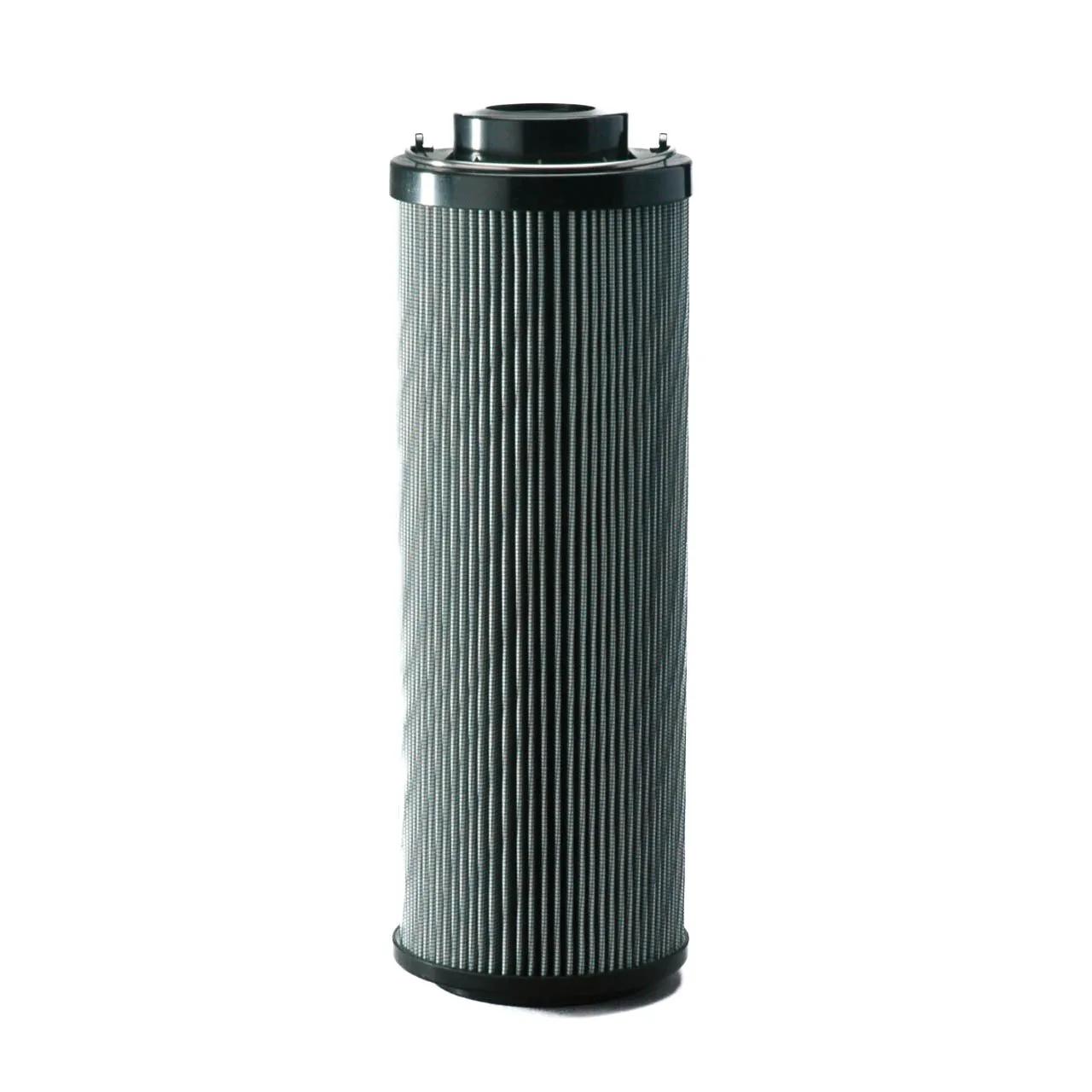

Hydraulic, Cartridge L: 16,22 in, OD: 4,47 in, ID: 2,54 in
#DONP566992
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar |
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.54 in (64.6 mm) |
| Length | 16-7/32 in (41.2 cm) |
| Outer Diameter | 4-15/32 in (11.35 cm) |
| Overall Length | 16.17 in (410.8 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP66RNL1825MB |
| HP66RNL1825MV |
| P566992 |
| DT0850R25UM |
| RHR850G20B |
| RHR850G20V |
| ST1153 |
| SH74040 |
| 0850R020PHC |
| 1262348 |
| 0850R020BN3HC |
| 0850R020BN4HC |
| 0850R020BNHC |
| 1263034 |
| 2069832 |
| 0850R020BN3HCV |
| 0850R020BN4HCV |
| 0850R020BNHCV |
| 0850R020ONV |
| 0850R020PHCV |
| 0850R020BNHC2 |
| 020850R20VG30HCSV |
| MP4745 |
| HC2285FDT15H |
| HC2286FDT15H |
| HC2286FDT15H50 |
| HC2286FDT15Z |
| HC2286FDT15Z50 |
| HC2285FMT15H |
| HC2286FMT15H |
| HC2286FMT15H50 |
| HC2286FMT15Z |
| HC2286FMT15Z50 |
| HC2286FKT15H50 |
| 0850EAR202F1 |
| SBF0850RZ25B |
| SBF0850RZ25V |
| RE200G20B |
| RE200G20V |
| RE200N20V |
| 850R020NV |
| 14931825V |
| ER852V2C20 |
| VR852V2C20 |
| R52D20GV |
| DER852V2C20 |
| BE66RNL1825MV |
| HC2285FKT15H |
| HC2286FKT15H |
| HC2286FKT15Z |
| HC2285FCT15H |
| HC2286FCT15H |
| HC2286FCT15Z |
| HC2286FCT15H50 |
| HC2285FCT15Z |
| HC2285FDT15Z |
| HC2285FKT15Z |
| HC2285FMT15Z |
| HC2285FUT15Z |
| HC2286FCT15Z50 |
| HC2286FKT15Z50 |
| H0850R025EB3V |
| HC2285FRT15H |
| HC2285FRT15Z |
| HC2286FRT15H |
| HC2286FRT15H50 |
| HC2286FRT15Z |
| HC2285FHT15H |
| HC2285FHT15Z |
| HC2286FHT15H |
| HC2286FHT15H50 |
| HC2286FHT15Z |
| HC2286FHT15Z50 |
| 0850R0 |
