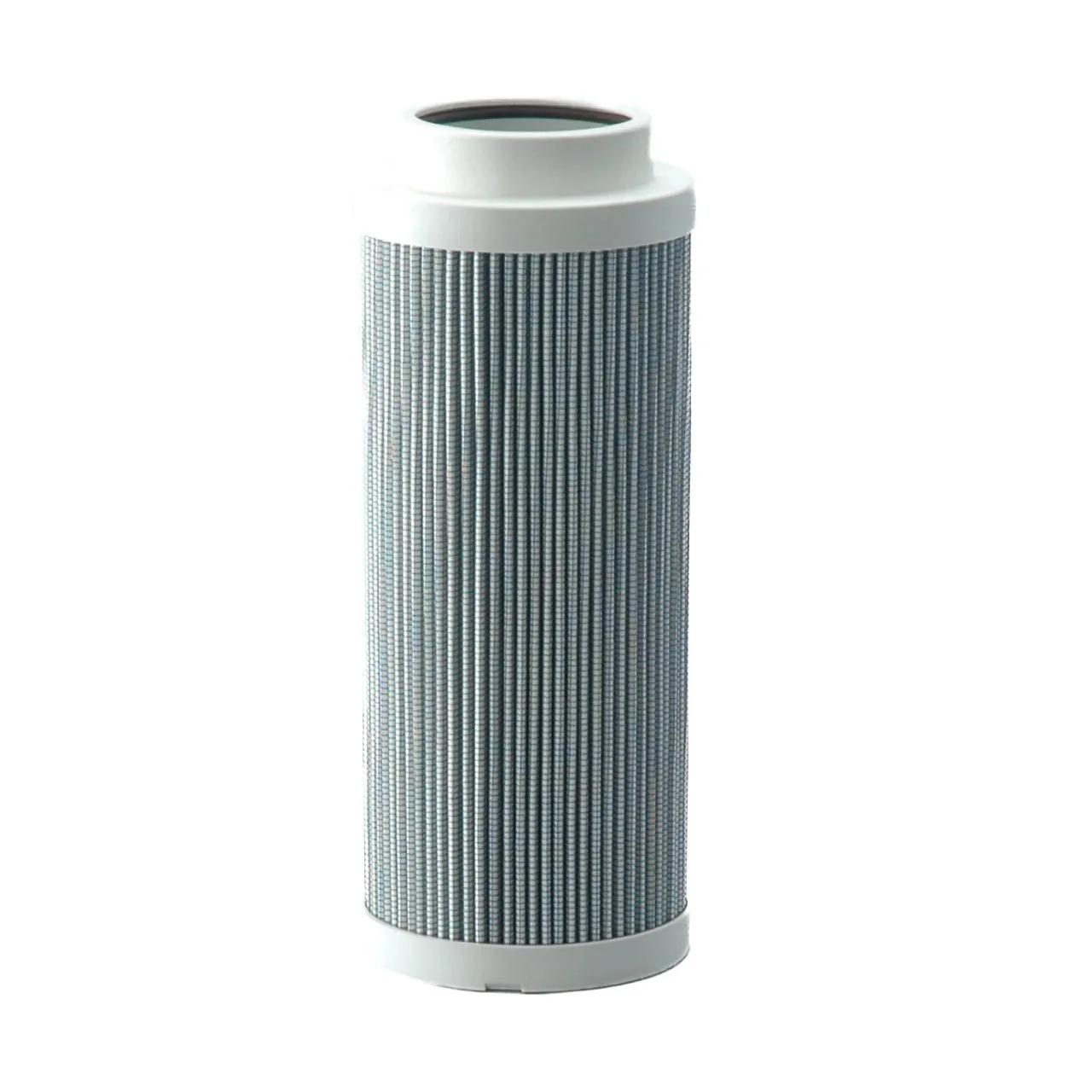

Hydraulic, Cartridge L: 16,57 in, OD: 3,2 in, ID: 2,01 in
#DONP566386
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.01 in (51.1 mm) |
| Length | 16-9/16 in (42.06 cm) |
| Outer Diameter | 3-13/64 in (8.13 cm) |
| Overall Length | 16.56 in (420.7 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566386 |
| C26A25GV |
| DT96041625UM |
| HP9616MFVL |
| C343G25 |
| C343G25V |
| HF30924 |
| FC343G25V |
| HC9604FDT16H |
| HC9604FDT16Z |
| HC9604FMT16H |
| 937206Q |
| SBF960416Z25V |
| SBF9604M16Z25V |
| 96051625UM |
| 96051625UMV |
| 15931625V |
| BE964L1625MV |
| HC9604FKT16H |
| HC9604FKT16Z |
| HC9604FCT16H |
| HC9604FCT16Z |
| HC9604FMT16Z |
| PC96060JFV |
| C3960ZGMV16 |
| HC9604FRT16H |
| HC9604FRT16Z |
| HC9604FHT16H |
| HC9604FHT16Z |
| KMP9604AKR16B |
| KMP9604AKR16V |
| HP964L1625MB |
| HP964L1625MV |
