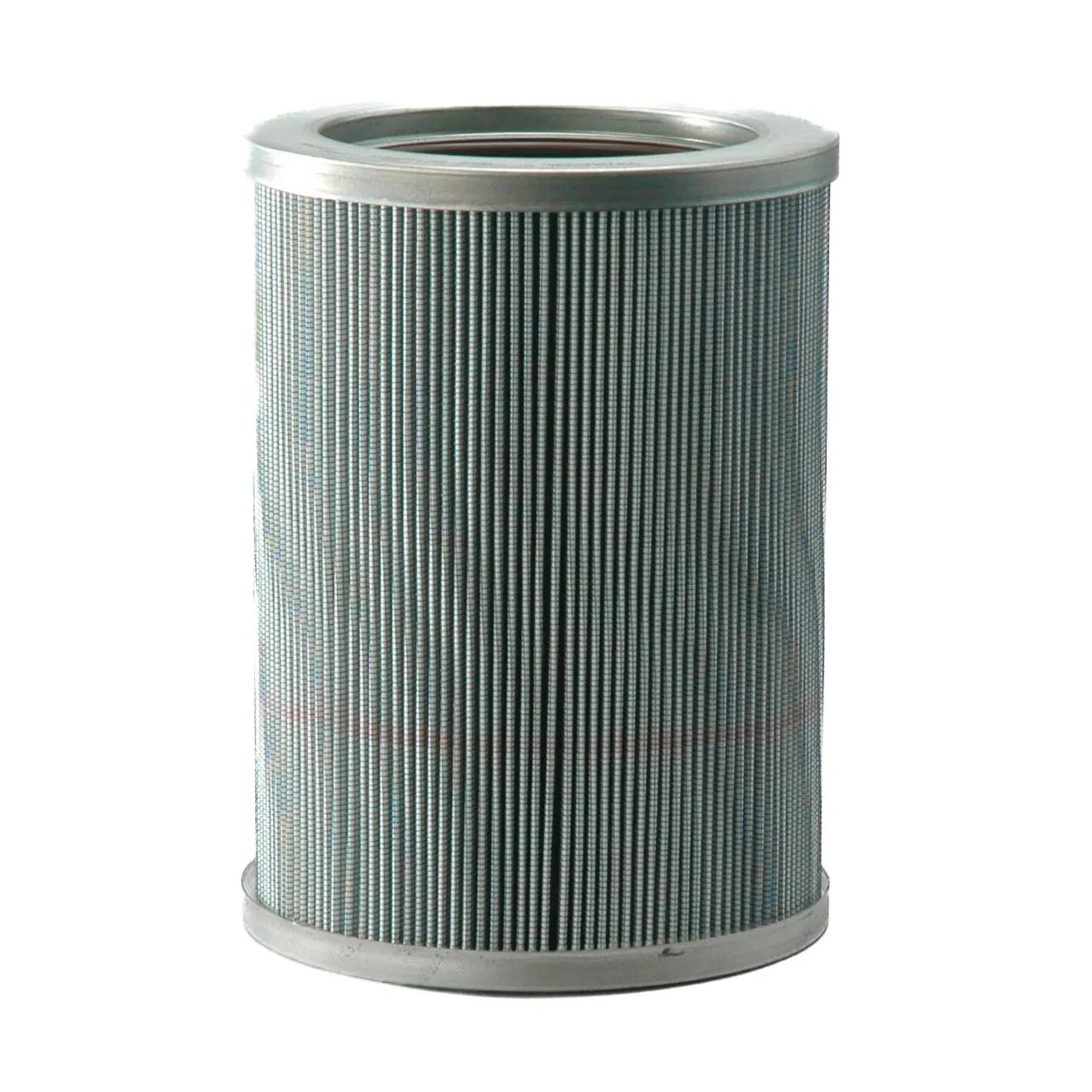

Hydraulic, Cartridge L: 16,72 in, OD: 5,97 in, ID: 4,1 in
#DONP566241
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 4.1 in (104.2 mm) |
| Length | 16-23/32 in (42.47 cm) |
| Outer Diameter | 5-31/32 in (15.16 cm) |
| Series | W041 |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP83L166MB |
| HP83L166MV |
| P566241 |
| 7086 |
| 57086 |
| P171058 |
| DT8300168UM |
| 168300UH6SLS000V |
| 168300UH6XLS000V |
| R830H1606A |
| F830016K6V |
| H8316MCV |
| H8316MCVL |
| M68316MCV |
| M68316MCVL |
| R432G06 |
| R432G06V |
| FC1302F005VS |
| HF7005F |
| FR432G06V |
| 52YT49 |
| SH87024V |
| SH87024 |
| 10616D06BN |
| H830016005BN |
| 10616D06BNV |
| H830016005BN3V |
| 0583006VG10BV16 |
| A912050 |
| KMP8300A06V16 |
| LH95066 |
| LH95066V |
| MP5209 |
| HC8300FDN16HX321 |
| HC8300FDN16ZX321 |
| HC8300FMN16H |
| HC8300FMN16HX321 |
| HC8300FMN16ZX321 |
| HC8300FKN16HX321 |
| HC8300FKN16ZX321 |
| 933045 |
| FC1302Q005VS |
| R830H1606H |
| SBF830016Z5V |
| 16QS3V |
| SBF830016S3V |
| SP200E05V |
| 8300166UM |
| 8300166UMV |
| 15021606V |
| V0411V5C05 |
| V0411V5V05 |
| E0411B5C05 |
| E0411V5C05 |
| Y1606LN |
| R928016704 |
| DE0411V5C05 |
| 03138J1300002 |
| 165A908CR61 |
| 386012038C |
| BE83L166MV |
| 78382038 |
| 891029SM6 |
| 891029SMX6 |
| P8300D16N6FPM |
| HC8300FDN16H |
| HC8300FDN16Z |
| HC8300FKN16H |
| HC8300FKN16Z |
| HC8300FUN16H |
| HC8300FUN16Z |
| HC8300FCN16H |
| HC8300FCN16Z |
| HC8300FMN16Z |
| HE8316LL06V |
| HE8316LS06V |
| HE8316MS06V |
| LE8316LS06V |
| LE8316MS06V |
| 2830L06V16 |
| 3830DGEV16 |
| 8830DGGV16 |
| 8830L06V16 |
| SF8300166UMV |
| HC8300FRN16ZX321 |
| HC8300FR |
| 2060877 |
