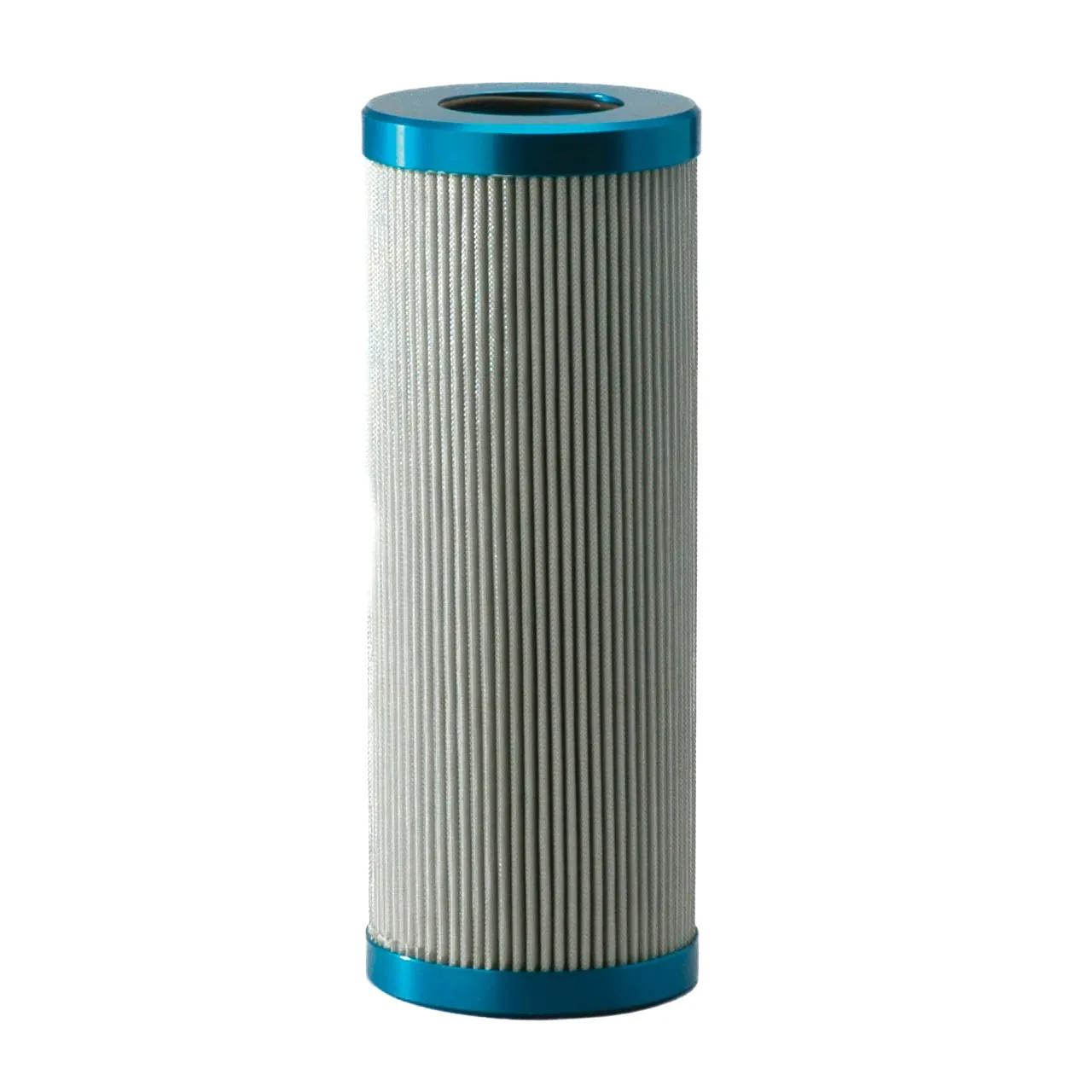

Hydraulic, Cartridge L: 16,81 in, OD: 3,13 in, ID: 1,7 in
#DONP566390
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 1.7 in (43.2 mm) |
| Length | 16-13/16 in (42.7 cm) |
| Outer Diameter | 3-1/8 in (7.95 cm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566390 |
| DT96511614UM |
| R951H1615A |
| HF30651 |
| 11816D17BH |
| H965116020BH |
| LH95057 |
| LH95057V |
| 928154Q |
| SBF965116Z10B |
| SBF965116Z10V |
| 96511615UM |
| 96511615UMV |
| E2054B5H10 |
| HC9651FDT16H |
| HC9651FDT16Z |
| HC9651FUT16H |
| HC9651FUT16Z |
| SF96511615UM |
| 02060818 |
| SBF-9651-16Z10B |
| SBF9651-16Z10B |
| SBF9651-16Z10V |
| 2060818 |
