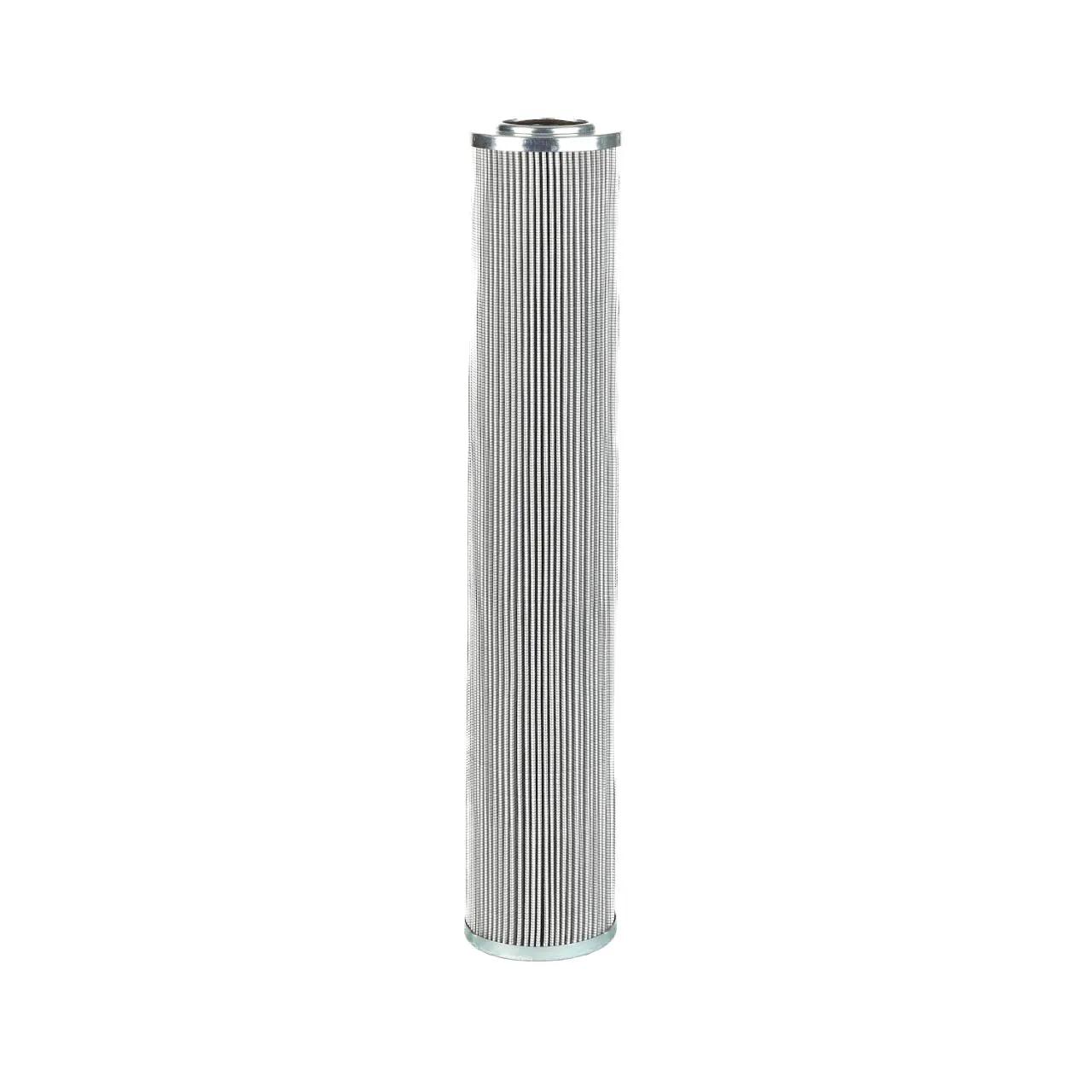

Hydraulic, Cartridge L: 16,85 in, OD: 3,1 in, ID: 1,62 in
#DONP566219
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Gasket ID | 1.65 in (42 mm) |
| Gasket OD | 1.89 in (48.1 mm) |
| Inner Diameter | 1.62 in (41.2 mm) |
| Length | 16-27/32 in (42.77 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 16.79 in (426.5 mm) |
| Series | HPK04. W620 |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP60L161MB |
| HP60L161MV |
| P566219 |
| DT9600162UM |
| F960016K1V |
| H9616MAAVL |
| A912405 |
| KMP9600A01V16 |
| 9600L012F4 |
| SBF960016Z1B |
| SBF960016Z1V |
| 9600161UMV |
| 14841601V |
| V6021V5C01 |
| E6021B5C01 |
| E6021V5C01 |
| BE96001601AV |
| 383016003C |
| BE60L161MV |
| HC9600FDZ16H |
| HC9600FDZ16Z |
| HC9600FKZ16H |
| HC9600FKZ16Z |
| HC9600FUZ16H |
| HC9600FUZ16Z |
| HC9600FCZ16H |
| HC9600FCZ16Z |
| HC9600FMZ16Z |
| HE9616LL01V |
| HE9616LS01V |
| HE9616MS01V |
| 2960L01V16 |
| 3960GGBV16 |
| HC9600FRZ16H |
| HC9600FHZ16H |
| HC9600FHZ16Z |
| P567877 |
| SBF9600-16Z1B |
| SBF9600-16Z1V |
| H9616MAAV |
| M69616MAAV |
| M69616MAAVL |
| KMP9600AKC16B |
| KMP9600AKC16V |
| D54A01GAV |
