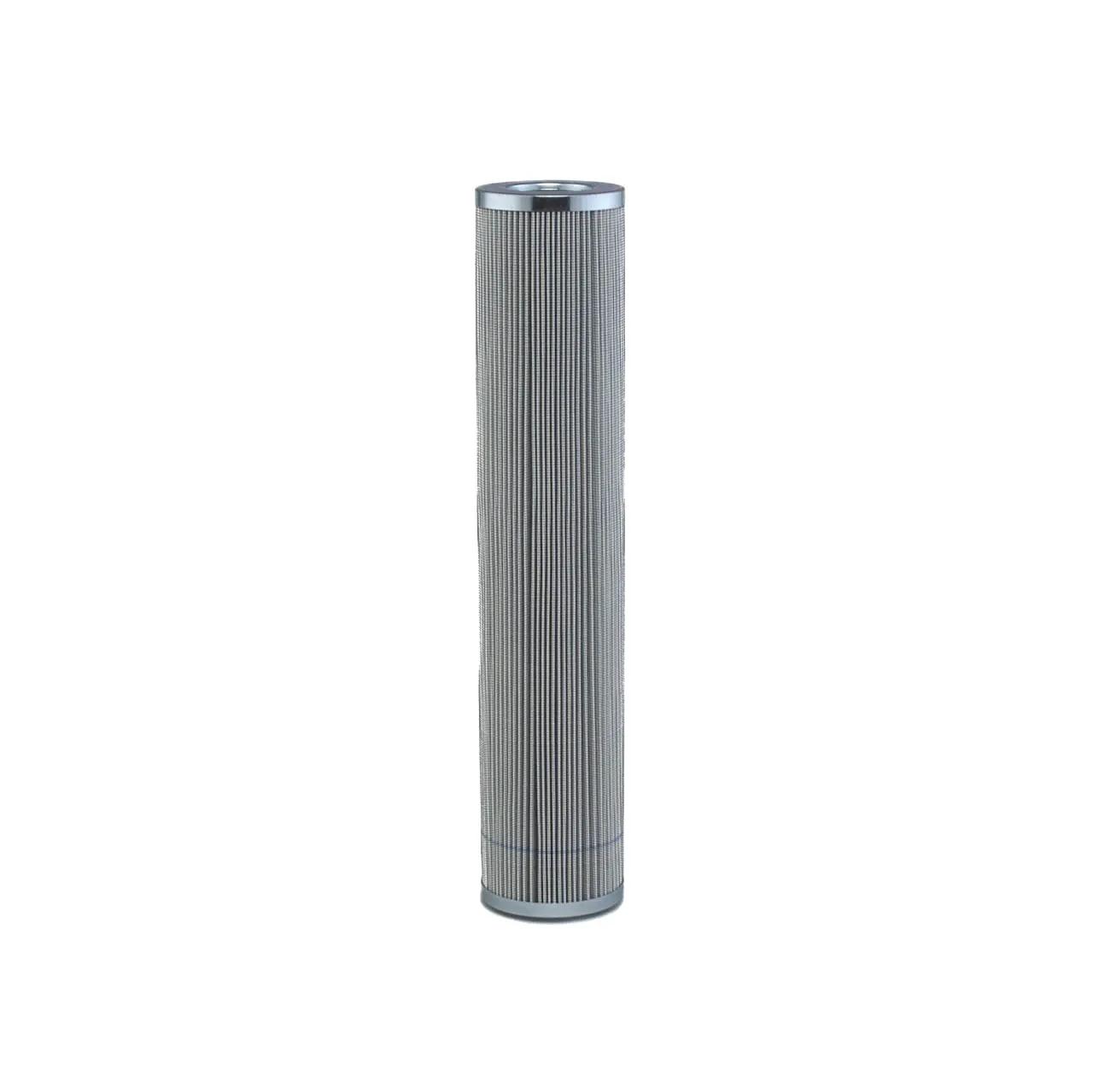

Hydraulic, Cartridge L: 16,85 in, OD: 3,4 in, ID: 1,94 in
#DONP566484
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Inner Diameter | 1.94 in (49.3 mm) |
| Length | 16-27/32 in (42.77 cm) |
| Outer Diameter | 3-13/32 in (8.66 cm) |
| Overall Length | 16.87 in (428.5 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566484 |
| DT8800162UM |
| SBF880016Z1B |
| SBF880016Z1V |
| HC8800FDZ16H |
| HC8800FDZ16Z |
| HC8800FKZ16H |
| HC8800FKZ16Z |
| HC8800FUZ16H |
| HC8800FUZ16Z |
| HC8800FCZ16H |
| HC8800FCZ16Z |
| HC8800FRZ16H |
| HC8800FHZ16H |
| HC8800FHZ16Z |
| SBF8800-16Z1B |
| SBF8800-16Z1V |
