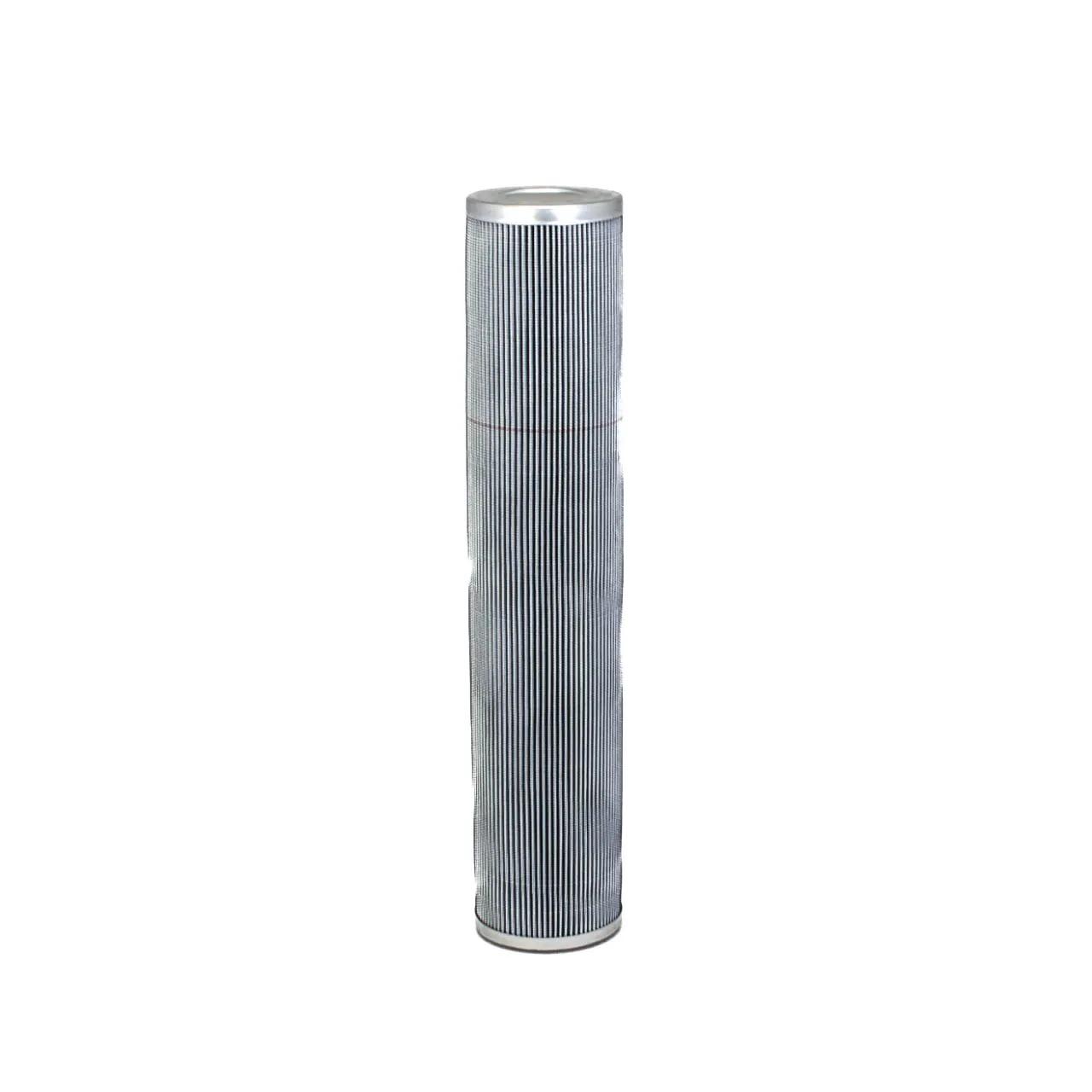

Hydraulic, Cartridge L: 16,85 in, OD: 3,4 in, ID: 1,94 in
#DONP566485
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 1.94 in (49.3 mm) |
| Length | 16-27/32 in (42.77 cm) |
| Outer Diameter | 3-13/32 in (8.66 cm) |
| Overall Length | 16.87 in (428.5 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP88L163MV |
| P566485 |
| HP88L163MB |
| DT8800165UM |
| R880H1603A |
| F880016K3V |
| H8816MAV |
| H8816MAVL |
| M68816MAV |
| M68816MAVL |
| D193G03AV |
| HF7129 |
| HF7530 |
| HF30573 |
| HF30753 |
| P03316705S62V |
| 11716D03BN |
| 2060969 |
| H880016003BN |
| 11716D03BNV |
| H880016003BN3V |
| H880016003BNV |
| A912177 |
| KMP8800A03V16 |
| LH95990V |
| MF0489796 |
| 930226Q |
| PR3943 |
| R880H1603H |
| 8800EAL032F3 |
| SBF880016S1 |
| SBF880016Z3B |
| SBF880016Z3V |
| HY20920 |
| 8800163UM |
| 8800163UMV |
| 15081603V |
| V2681B5C03 |
| V2681B5V03 |
| V2681V5C03 |
| V2681V5V03 |
| E2681B5C03 |
| E2681V5C03 |
| BE88001603AV |
| DE2681V5C03 |
| 750592001 |
| 75059201 |
| BE88L163MV |
| 101730 |
| HC8800FDP16H |
| HC8800FDP16Z |
| HC8800FKP16H |
| HC8800FKP16Z |
| HC8800FUN16Z |
| HC8800FUP16H |
| HC8800FUP16Z |
| HC8800FCP16H |
| HC8800FCP16Z |
| HC8800FMP16Z |
| P88150GFV |
| 2880L03V16 |
| 3880DGCV16 |
| 8880DGDV16 |
| 8880L03V16 |
| HC8800FRP16H |
| HC8800FRP16Z |
| HC8800FHP16H |
| HC8800FHP16Z |
| 0750592001 |
| DONP174535 |
| H880016003B |
| LH95990 |
| PT23402-MPG |
