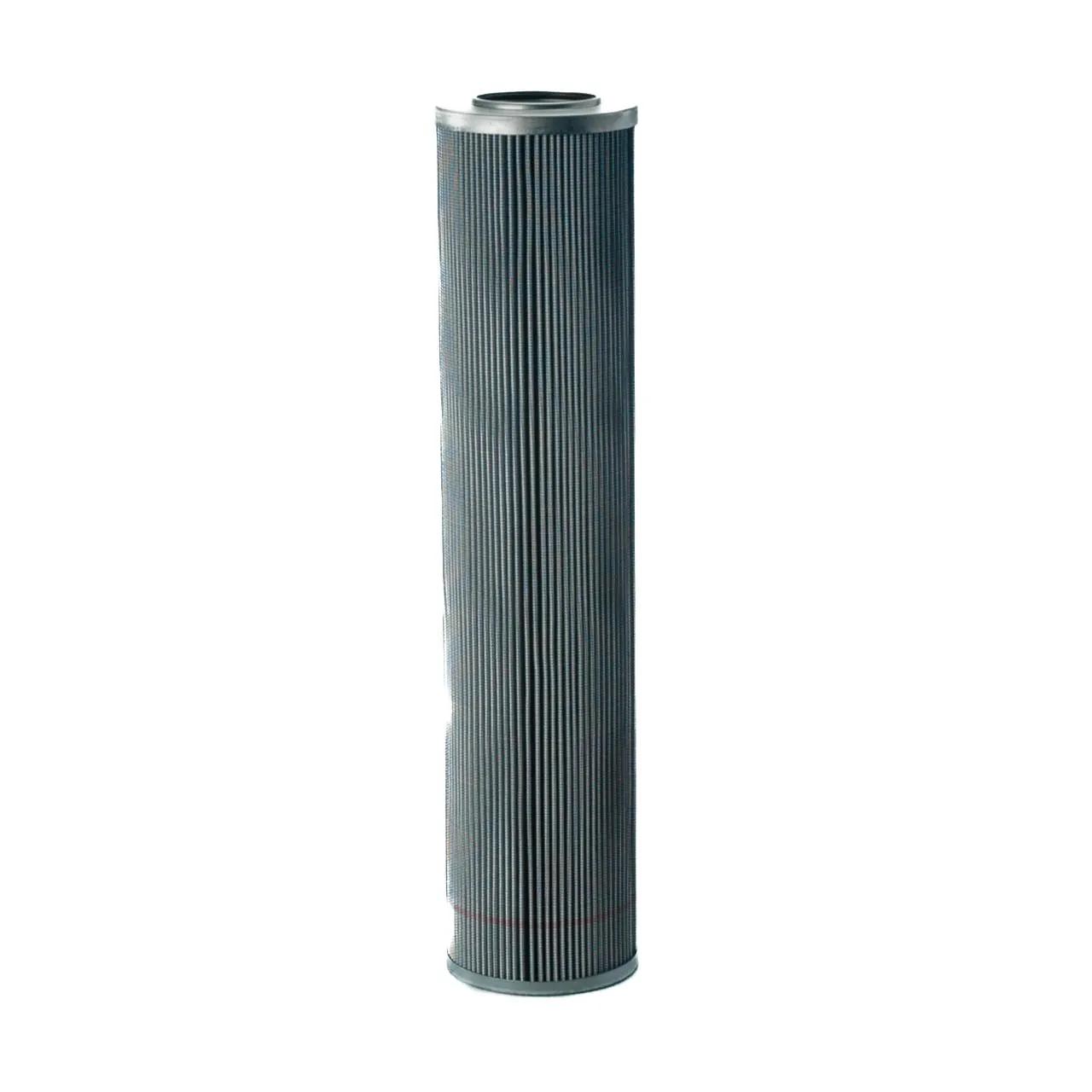

Hydraulic, Cartridge L: 16,85 in, OD: 3,79 in, ID: 2,11 in
#DONP566500
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2.11 in (53.6 mm) |
| Length | 16-27/32 in (42.77 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 16.85 in (428 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566500 |
| 1698 |
| 51698 |
| DT8900165UM |
| R890H1603H |
| SH87099 |
| SH87099V |
| 2062445 |
| 10816D03BN |
| H890016003BN |
| 933210Q |
| SBF890016Z3B |
| SBF890016Z3V |
| 8900163UM |
| 8900163UMV |
| E2691B5C03 |
| HC8900FDP16H |
| HC8900FDP16Z |
| HC8900FKP16H |
| HC8900FKP16Z |
| HC8900FUP16H |
| HC8900FUP16Z |
| HC8900FCP16H |
| HC8900FCP16Z |
| HC8900FHP16Z |
| HC8900FRP16H |
| HC8900FRP16Z |
| HC8900FHP16H |
| HP89L163MB |
| KMP8900AKF16B |
| KMP8900AKF16V |
| 02062445 |
| DONP174525 |
| SBF-8900-16Z3V |
| SBF8900-16Z3B |
| SBF8900-16Z3V |
