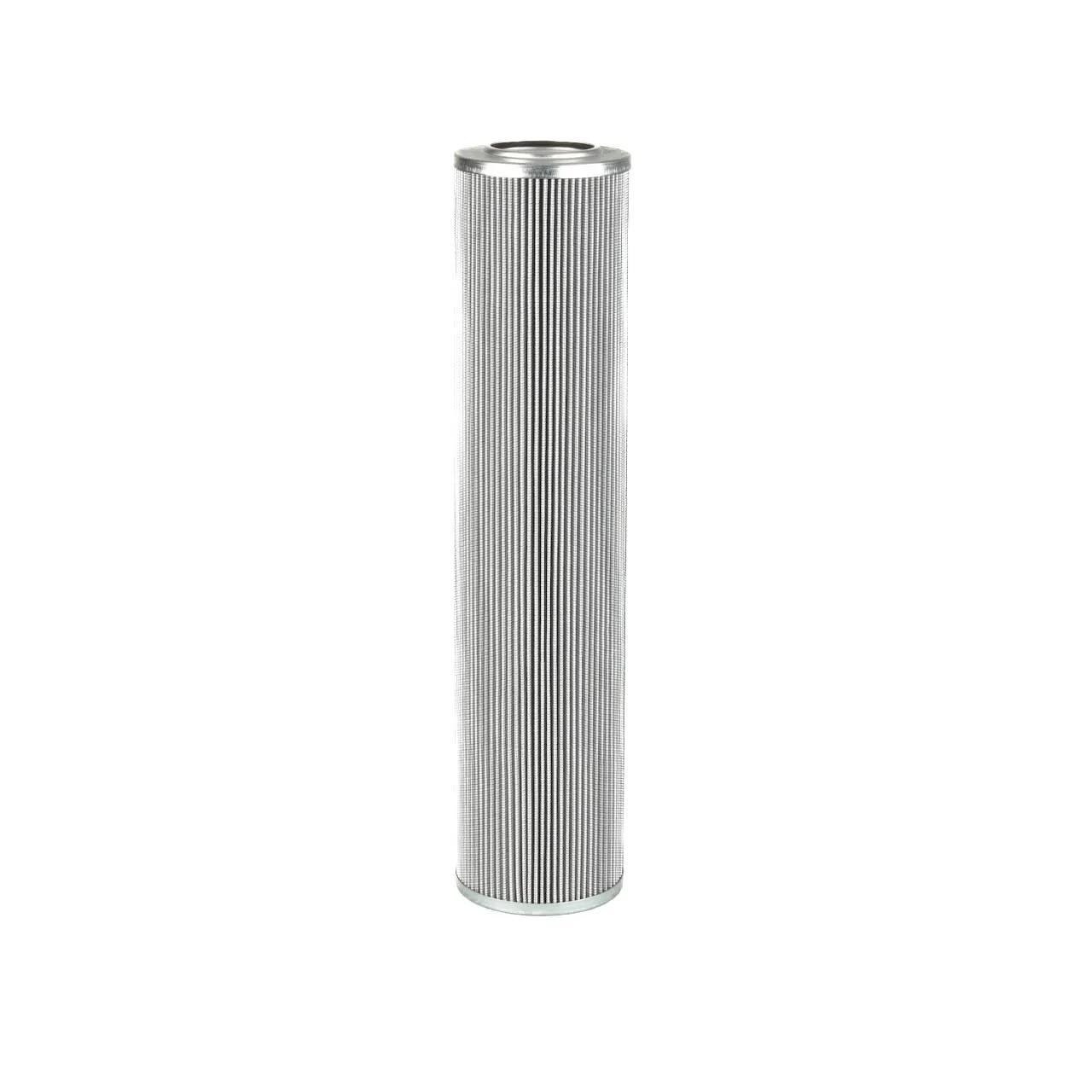

Hydraulic, Cartridge L: 16,85 in, OD: 3,79 in, ID: 2,11 in
#DONP566502
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 2.11 in (53.6 mm) |
| Length | 16-27/32 in (42.77 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 16.85 in (428 mm) |
| Length Range | 16 to 16.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP89L1612MV |
| P566502 |
| 1693 |
| 51693 |
| DT89001614UM |
| R890H1612H |
| 1269902 |
| 10816D12BN4 |
| 10816D12BN |
| 2062447 |
| H890016010BN |
| 933212Q |
| SBF890016Z10B |
| SBF890016Z10V |
| 89001612UM |
| 89001612UMV |
| E2691B5C10 |
| HC8900FDS16H |
| HC8900FKS16Z |
| HC8900FUS16Z |
| HC8900FCS16H |
| HC8900FDS16Z |
| HC8900FKS16H |
| HC8900FUS16H |
| HC8900FCS16Z |
| HC8900FRS16Z |
| HC8900FHS16Z |
| KMP8900AKM16V |
| 1.08.16D12BN |
| SBF-8900-16Z10B |
| SBF8900-16Z10B |
| SBF8900-16Z10V |
