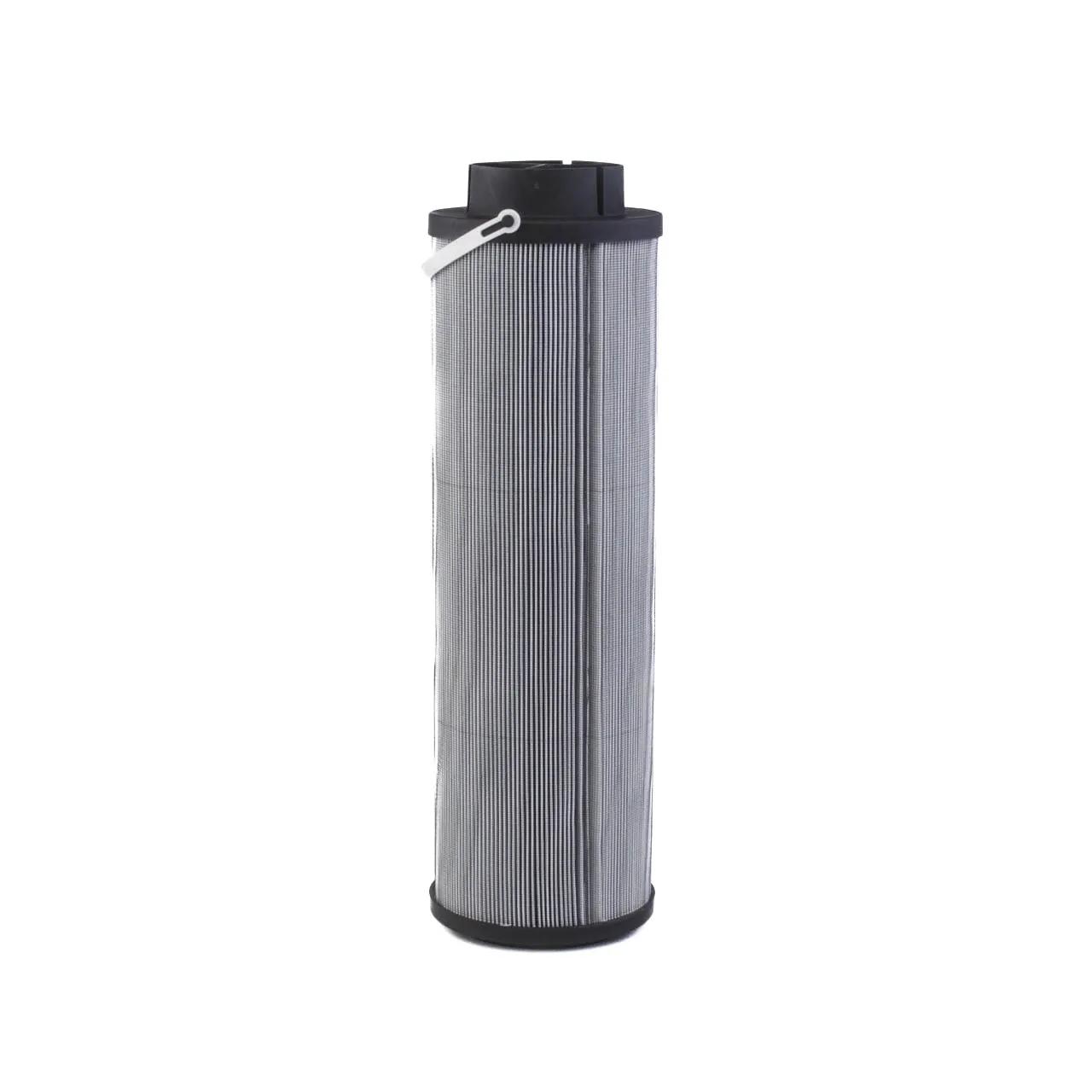

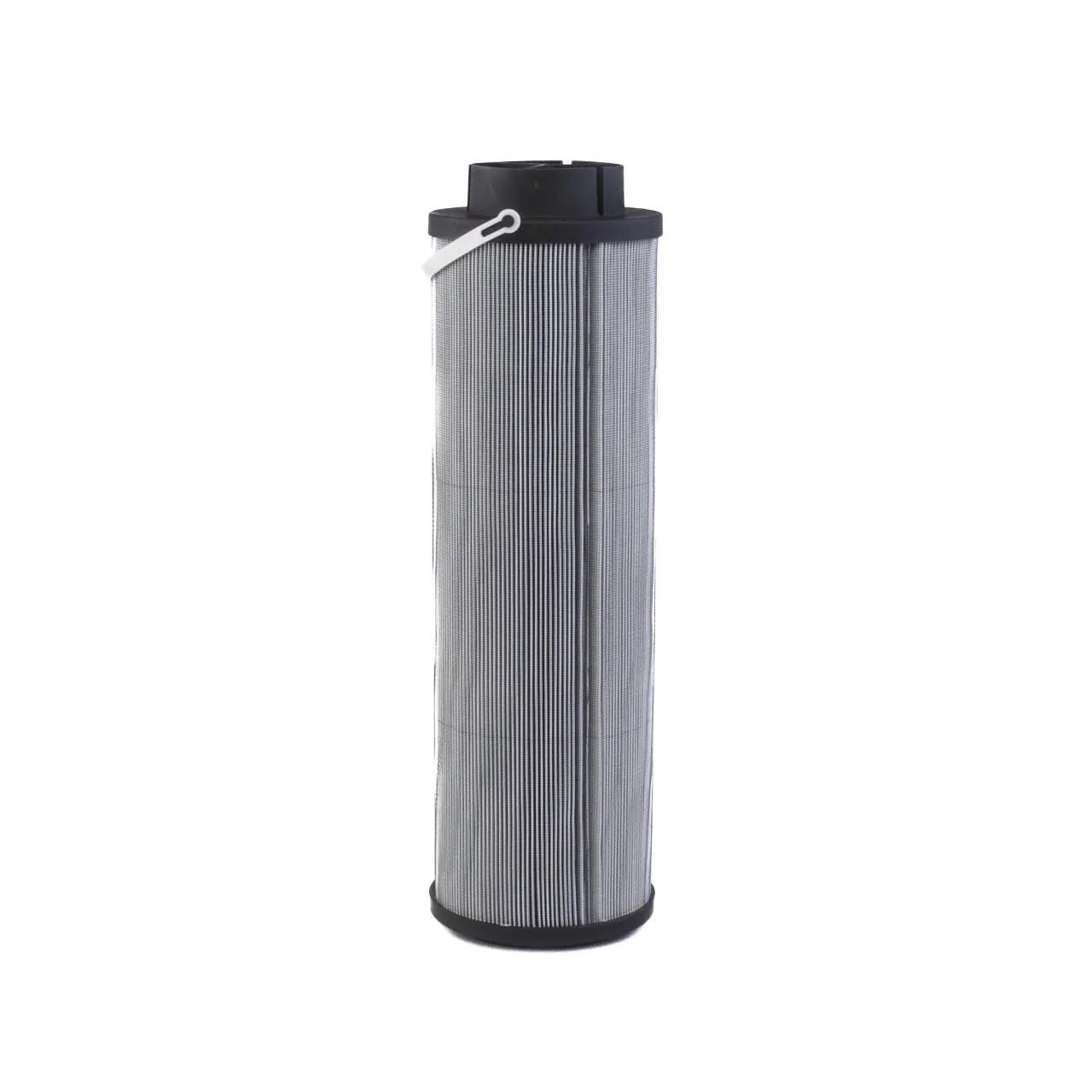

Hydraulic, Cartridge L: 17,23 in, OD: 5,72 in, ID: 3,77 in
#DONP570861
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 58.02 psi (4 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Efficiency Beta 1000 (Micron) | 11 Micron |
| Inner Diameter | 3.77 in (95.8 mm) |
| Length | 17-15/64 in (43.76 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 18.96 in (481.6 mm) |
| Length Range | 17 to 17.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570861 |
| 2087458 |
| 1284461 |
| 1300R010BN4HCB4KE50 |
| MF0505182 |
| 107W2148P001 |
| HC2296FKT18H50 |
| 1300R010BN3HCB4KE50 |
| 02087458 |
| 01297473 |
| 60076343 |
| 1300R101BN4HC |
| W75E10GV |
| HPQ260292L1810HB |
