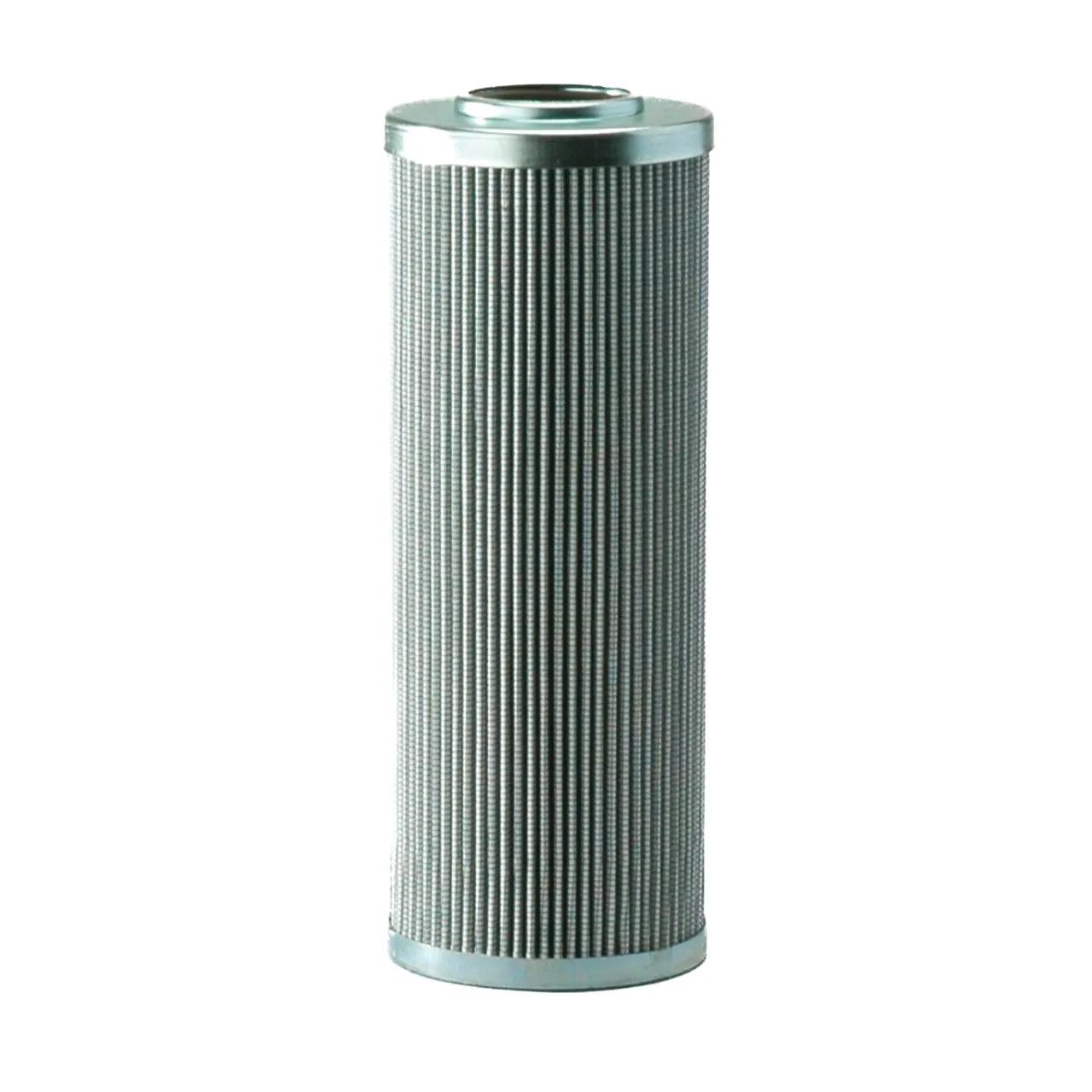

Hydraulic, Cartridge L: 17 in, OD: 3,1 in, ID: 1,7 in
#DONP566231
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.7 in (43.2 mm) |
| Length | 17 in (43.18 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Length Range | 17 to 17.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566231 |
| DT9650168UM |
| R950H1606A |
| 2060869 |
| 11816D05BN |
| LH95051 |
| LH95051V |
| 926994Q |
| 926998 |
| 926999 |
| SBF965016Z5B |
| SBF965016Z5V |
| 9650166UM |
| 9650166UMV |
| E2051B5C05 |
| HC9650FDN16H |
| HC9650FDN16Z |
| HC9650FKN16H |
| HC9650FKN16Z |
| HC9650FUN16H |
| HC9650FUN16Z |
| HC9650FCN16H |
| HC9650FCN16Z |
| HC9650FRN16H |
| HC9650FRN16Z |
| KMP9650AKH16V |
| HC9650FHN16H |
| HC9650FHN16Z |
| KMP9650AKH16B |
| D99A06GAV |
| 02060869 |
| MF0059580 |
| DONP165587 |
| P165587 |
| R950-H-1606A |
| SBF-9650-16Z5B |
| SBF-9650-16Z5V |
| SBF9650-16Z5B |
| SBF9650-16Z5V |
