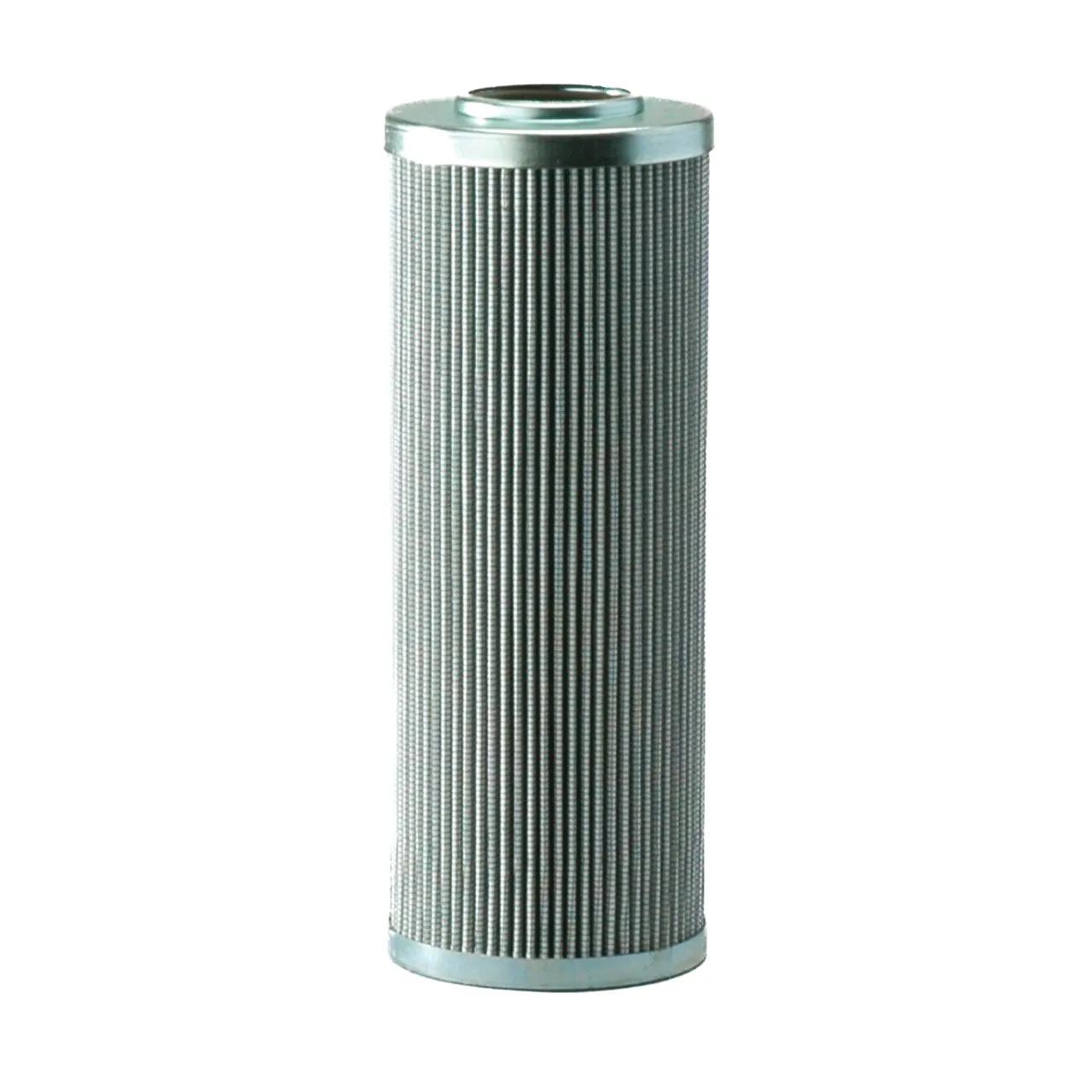

Hydraulic, Cartridge L: 17 in, OD: 3,1 in, ID: 1,7 in
#DONP566233
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 1.7 in (43.2 mm) |
| Length | 17 in (43.18 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Length Range | 17 to 17.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566233 |
| DT96501625UM |
| R950H1625A |
| HF30800 |
| 11816D25BN |
| LH95053 |
| LH95053V |
| 933302Q |
| SBF965016Z25B |
| SBF965016Z25V |
| 96501625UM |
| 96501625UMV |
| HC9650FDT16H |
| HC9650FDT16Z |
| HC9650FKT16H |
| HC9650FKT16Z |
| HC9650FUT16H |
| HC9650FUT16Z |
| HC9650FCT16H |
| HC9650FCT16Z |
| HC9650FRT16H |
| HC9650FRT16Z |
| HC9650FHT16H |
| 02060871 |
| HC9650FHT16Z |
| KMP9650AKR16B |
| KMP9650AKR16V |
| SBF-9650-16Z25V |
| SBF9650-16Z25B |
| SBF9650-16Z25V |
| 2060871 |
