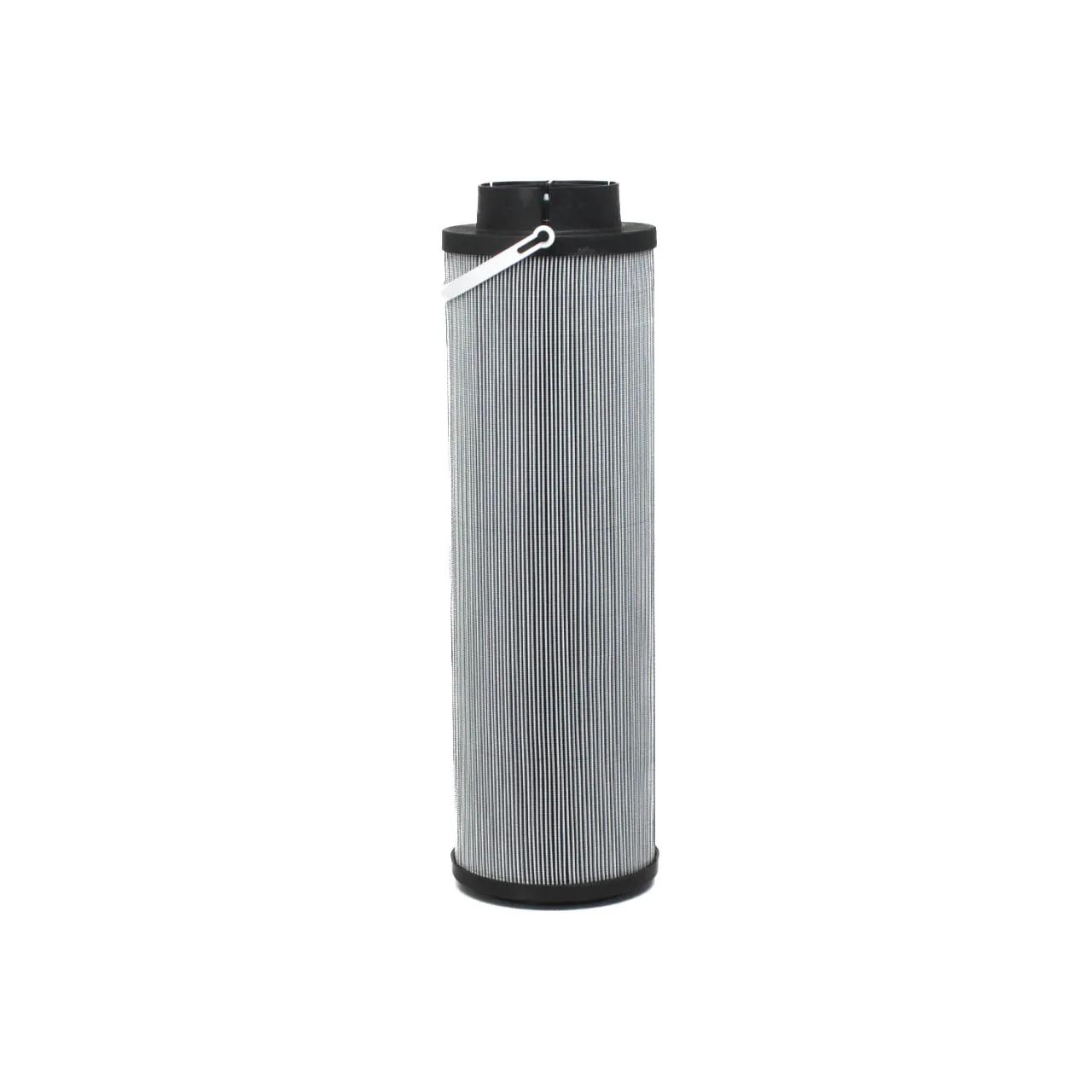

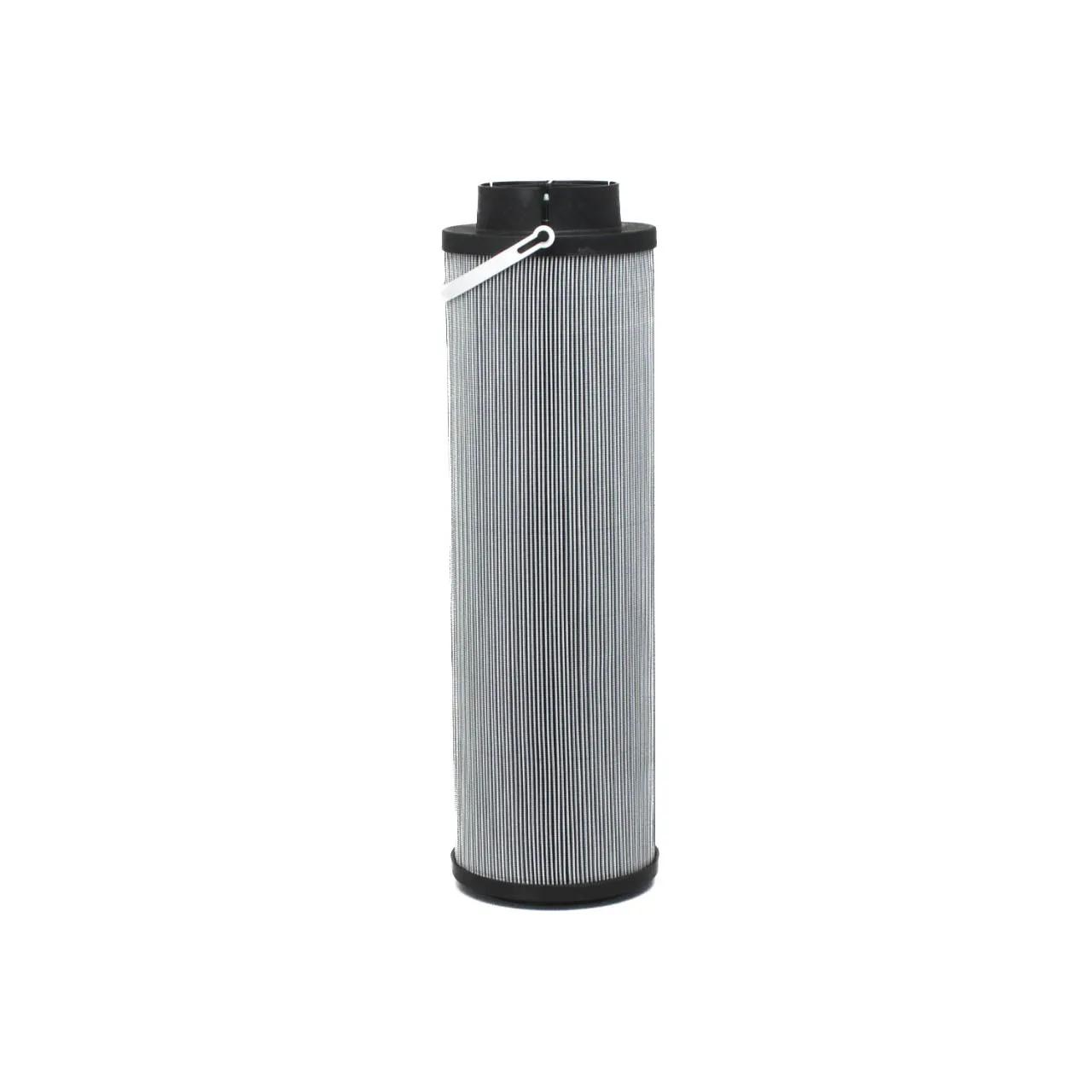

Hydraulic, Cartridge L: 18,98 in, OD: 5,72 in, ID: 3,77 in
#DONP570860
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 58.02 psi (4 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 6 Micron |
| Efficiency Beta 1000 (Micron) | 6 Micron |
| Inner Diameter | 3.77 in (95.8 mm) |
| Length | 18-63/64 in (48.21 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 18.96 in (481.6 mm) |
| Length Range | 18 to 18.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570860 |
| DT1300R6XP45UM |
| 1297473 |
| 1300R005BN4HCB4KE50 |
| 1300R005BN3HCB4KE50 |
| 1300R005ONB4KE50 |
| 7242612 |
| 51055694 |
| P568761 |
| W75E10GV |
| HPQ260292L186HB |
