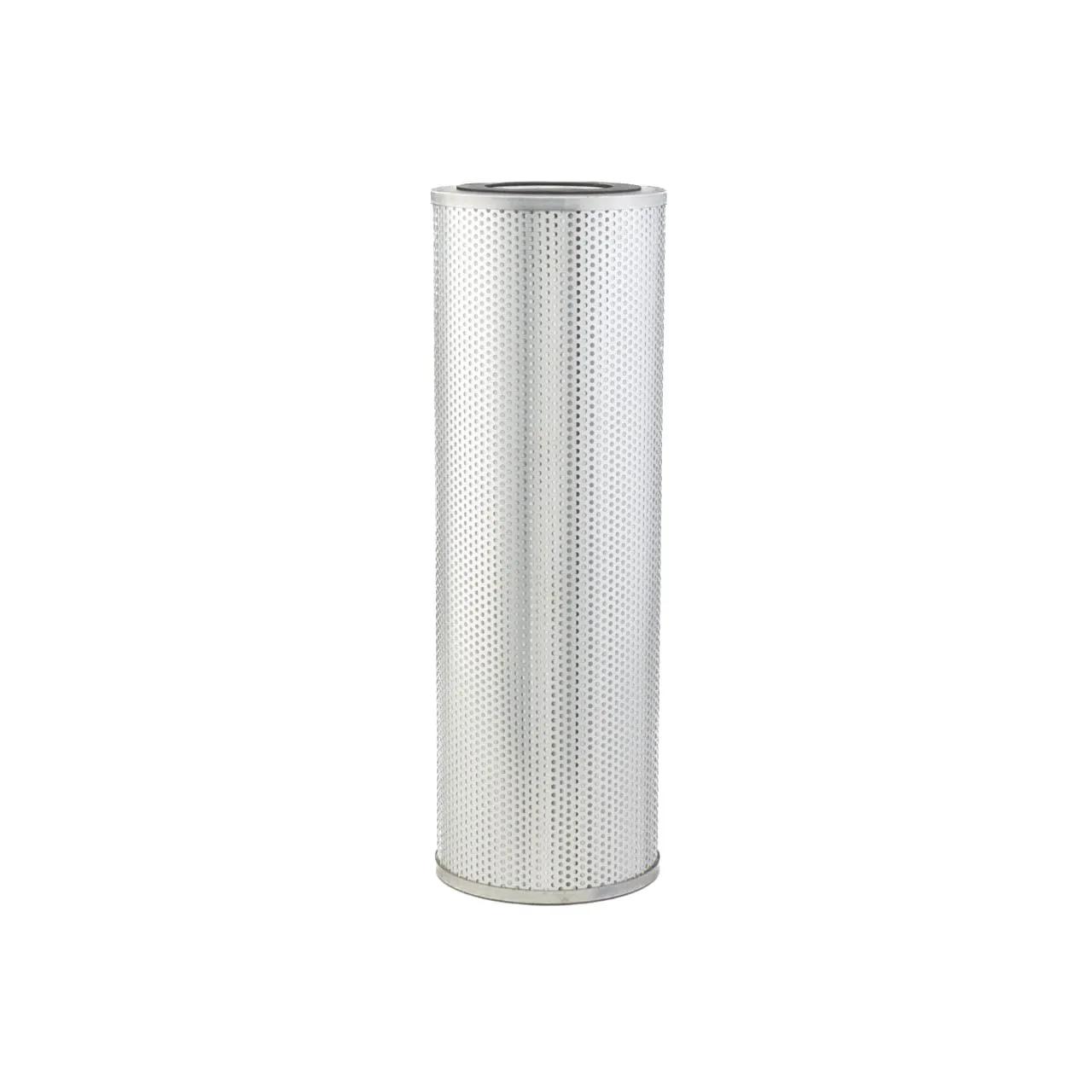

Hydraulic, Cartridge L: 18 in, OD: 6 in, ID: 3,19 in
#DONP176205
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 6 to 6.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 3.19 in (81.1 mm) |
| Length | 18 in (45.72 cm) |
| Outer Diameter | 6 in (15.24 cm) |
| Overall Length | 18.12 in (460.3 mm) |
| Length Range | 18 to 18.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P176205 |
| HP101318L1825MB |
| R320G25P |
| HC0101FDS18HY514 |
| HC0101FDT18HY514 |
| HC0101FMS18HY514 |
| HC0101FMT18HY514 |
| PH71810 |
| PL71805 |
| PL71810 |
| HC0101FKS18HY514 |
| HC0101FKT18HY514 |
| HC0101FRS18HY514 |
| HC0101FRT18HY514 |
| HC0101FCS18HY514 |
| HC0101FCT18HY514 |
| HC0101FHS18HY514 |
| HC0101FHT18HY514 |
| DN P176205 |
| DN P176205 |
| 2191-P176205 |
| DONP176205 |
| R32F30C |
