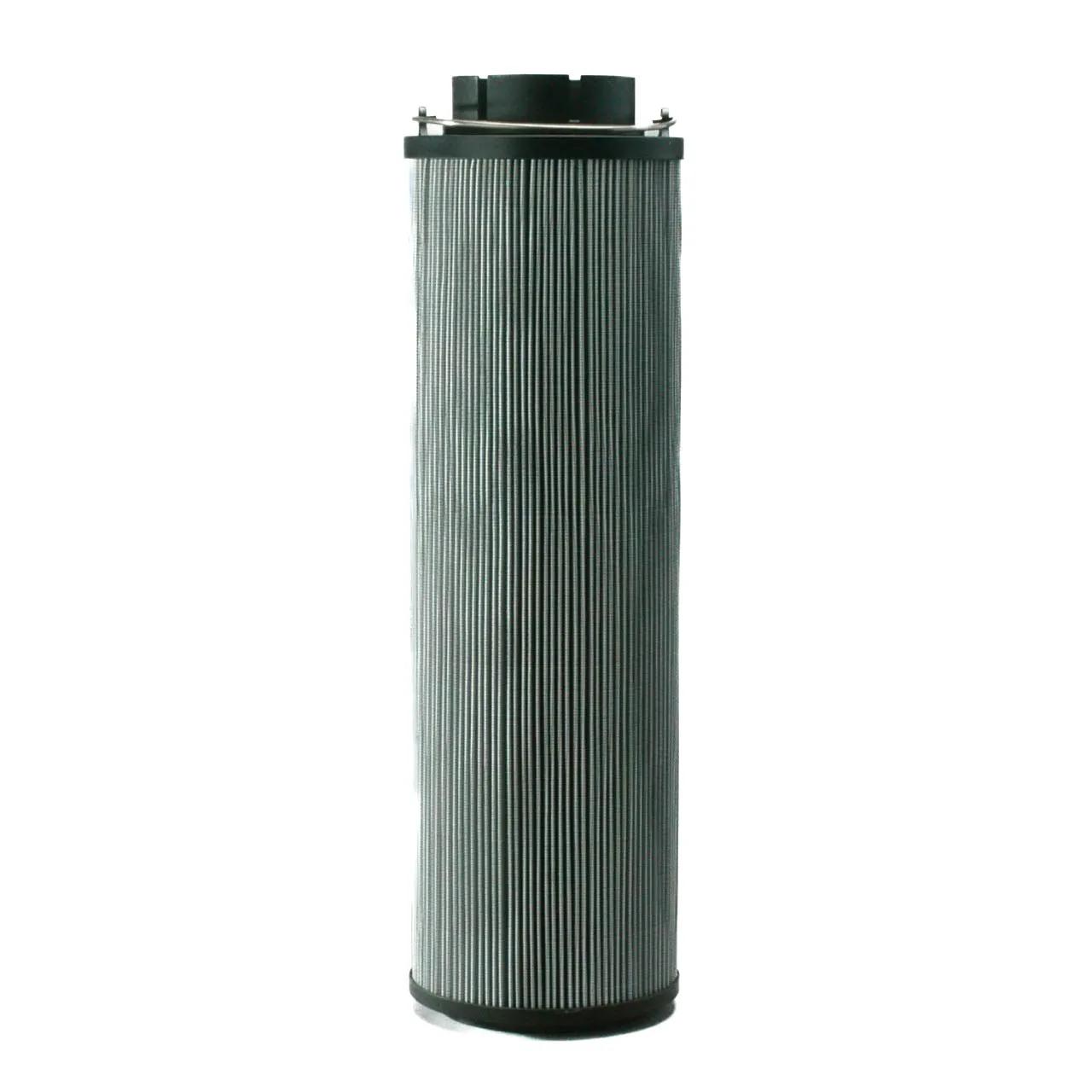

Hydraulic, Cartridge L: 19,02 in, OD: 5,72 in, ID: 3,78 in
#DONP566998
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 bar |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 19-1/64 in (48.31 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 18.96 in (481.6 mm) |
| Length Range | 19 to 19.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566998 |
| PT23360MPG |
| DT1300R8UM |
| RHR1300G05B |
| RHR1300G05V |
| HF6857 |
| 1300R005BN3HCV |
| HP95RNL186MB |
| HP95RNL186MV |
| 2059110 |
| 1300R005BNHC2 |
| 1300R005BN3HC |
| 1300R005BN4HC |
| 1300R005BNHC |
| 1263056 |
| 2067417 |
| 1300R005BN4HCV |
| 1300R005BNHCV |
| 1300R005ONV |
| 021300R6VG30HCSP |
| 310558 |
| 021300R6VG30HCSV |
| MF0063938 |
| HC2296FDN18Z50 |
| MP5486 |
| HC2295FDN18H |
| HC2296FDN18H |
| HC2296FDN18H50 |
| HC2296FDN18Z |
| HC2295FMN18H |
| HC2296FMN18H |
| HC2296FMN18H50 |
| HC2296FMN18Z |
| HC2296FMN18Z50 |
| 1300EAR062F1 |
| SBF1300RZ5B |
| SBF1300RZ05V |
| RE300G05B |
| RE300G05V |
| RE300N05V |
| 1300R005N |
| 1300R005NV |
| 15121806V |
| E1302V6C05 |
| V1302V6C05 |
| R71E05GV |
| BE1300R06A43V |
| DE1302V6C05 |
| BE95RNL186MV |
| HC2296FCN18H |
| 934478 |
| HC2295FKN18H |
| HC2296FKN18H |
| HC2296FKN18Z |
| HC2295FCN18H |
| HC2296FCN18Z |
| HC2296FCN18H50 |
| HC2295FDN18Z |
| HC2295FMN18Z |
| HC2295FUN18Z |
| HC2296FCN18Z50 |
| HC2296FKN18Z50 |
| H1300R006EB3V |
| HC2295FRN18H |
| HC2296FRN18Z50 |
| HC2296FRN18H |
| HC2295FHN18H |
| HC2295FHN18Z |
| HC2296FHN18H |
| HC2296FHN18H50 |
| HC2296FHN18Z |
| HC2296FHN18Z50 |
| HC2295FRN18Z |
| HC2296FRN18H50 |
| 1300 R005 BN3HC |
| 02130 |
