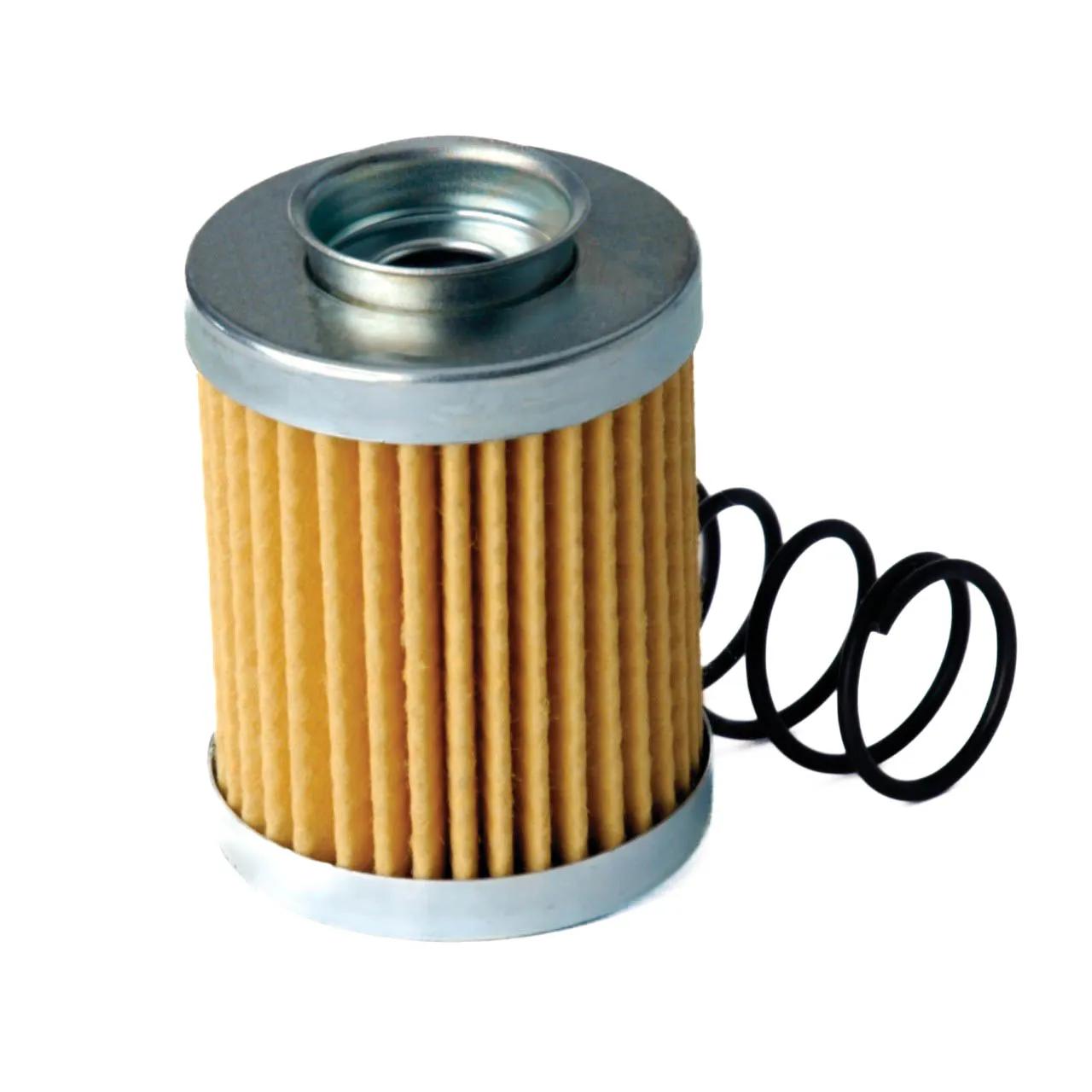

Hydraulic, Cartridge L: 2,64 in, OD: 2,05 in, ID: 1 in
Specifications
| Application | F.B.O. CR30 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 2 to 3 in |
| Efficiency Beta 2 | 27 Micron |
| Efficiency Beta 2 (Micron) | 27 Micron |
| Inner Diameter | 1 in (25.4 mm) |
| Length | 2.64 in (67.1 mm) |
| Outer Diameter | 2.05 in (52.07 mm) |
| Series | FIK |
| Standard Length | 2 to 3 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
HF35200, 06569550, 1511006, 2191-P171504, 6569550, 7602200, B110-25B, BD7-1504, CR30/3, DN P171504, DN P171504, DONP171504, DRE1B, F3M20A, F3P20A, HF35200FLG, LI3415, PT9179, RE8CV1, TE843, TR1231, P171504, 3TAS15, 3TAZ215, 48151, 7685845, 852315MIC25, 943706Q, CR3003, CR303, ERA21NCD, ERA21NFD, HP907RNL325MB, K030211, K030217, K030229, K030235, K030331, K030336, K030342, K030345, K030354, MF0301A25HBP01, MF0301A25NBP01, MF0301P25HB, MF0301P25NB, MF0301P25NBP01, P171502, R110C25B, RE8FV1, TIE0820, TIE0825, TIE0825A, K030245, TR1231, B110-25B, HF35200FLG, DRE1B, LI3415, RE8CV1, 1511006, BD7-1504, DN P171504, 7602200, F3M20A, TE843, PT9179, 06569550, CR30/3, 6569550, DONP171504, F3P20A, DN P171504, 2191-P171504, HF35200, ERA21NCD, K030331, 943706Q, K030345, K030211, MF0301P25NBP01, 48151, HP907RNL325MB, K030336, 7685845, K030217, K030235, CR303, 852315MIC25, 3TAZ215, TIE0825A, R110C25B, 3TAS15, MF0301P25NB, RE8FV1, MF0301A25HBP01, TIE0825, TIE0820, MF0301A25NBP01, CR3003, MF0301P25HB, K030354, ERA21NFD, P171502, K030342, K030229, P171504, K030245, 133800, SH63301, HD5009X, MF0301P25HBP01, HY12044, HY18210, HY18413, NR10C025, HID18234, R16C25CB, 140029, CR091C25R, CR40B, CR40H, PF15825, 607279, HF171504, WGH9500
