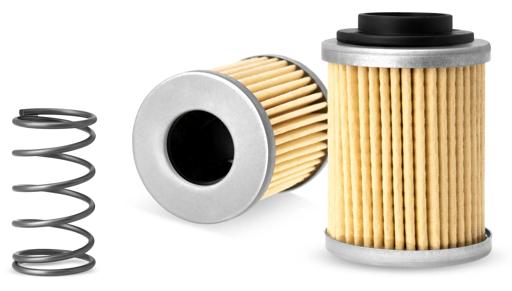

Hydraulic, Cartridge L: 2,64 in, OD: 2,05 in, ID: 1 in
#DONP171504
Product Overview
HYDRAULIC FILTER, CARTRIDGE
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 2 | 27 Micron |
| Efficiency Beta 2 (Micron) | 27 Micron |
| Inner Diameter | 1 in (25.4 mm) |
| Length | 2-41/64 in (6.71 cm) |
| Outer Diameter | 2-3/64 in (5.21 cm) |
| Series | FIK |
| Length Range | 2 to 2.99 in |
| Style | Cartridge |
| Vehicle Make | F.B.O. |
Interchanges & Equivalent parts:
| P171504 |
| 133800 |
| PT9179 |
| K030211 |
| K030217 |
| K030229 |
| K030235 |
| K030245 |
| K030331 |
| K030336 |
| K030342 |
| K030345 |
| K030354 |
| CR3003 |
| P171502 |
| CR303 |
| R110C25B |
| HF35200 |
| SH63301 |
| TIE0820 |
| TIE0825 |
| TIE0825A |
| HD5009X |
| MF0301P25HBP01 |
| F3M20A |
| F3P20A |
| MF0301P25HB |
| MF0301P25NB |
| MF0301A25HBP01 |
| MF0301A25NBP01 |
| MF0301P25NBP01 |
| 943706Q |
| LI3415 |
| 3TAS15 |
| 3TAZ215 |
| HY12044 |
| HY18210 |
| HY18413 |
| NR10C025 |
| HID18234 |
| 7602200 |
| ERA21NCD |
| ERA21NFD |
| R16C25CB |
| 6569550 |
| DRE1B |
| 140029 |
| 7685845 |
| 852315MIC25 |
| RE8CV1 |
| CR091C25R |
| CR40B |
| CR40H |
| PF15825 |
| 1511006 |
| 48151 |
| RE8FV1 |
| TE843 |
| TR1231 |
| HF171504 |
| WGH9500 |
| 607279 |
| 06569550 |
| 2191-P171504 |
| B110-25B |
| BD7-1504 |
| CR30/3 |
| DONP171504 |
| HF35200FLG |
| R16C25GB |
