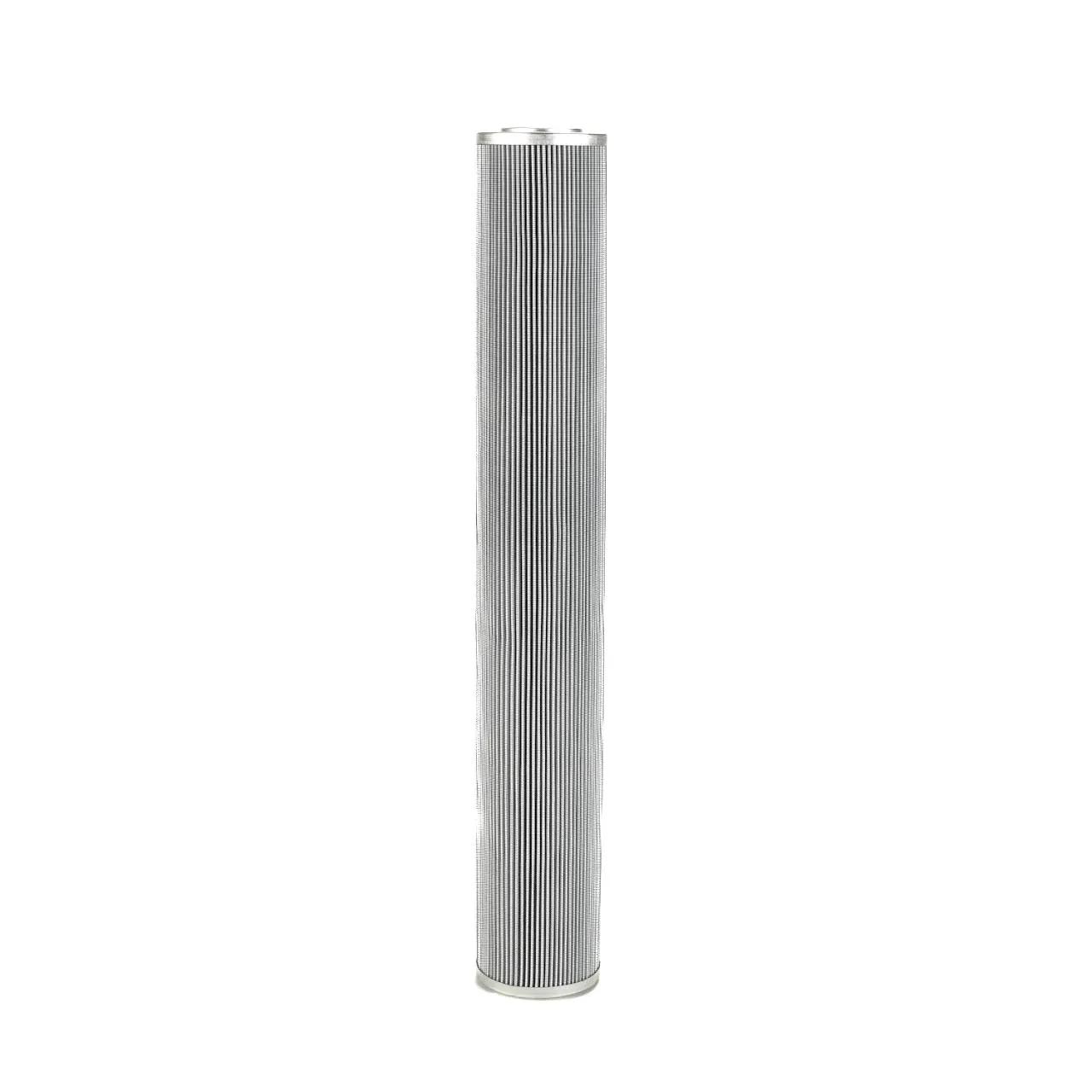

Hydraulic, Cartridge L: 25,91 in, OD: 3,79 in, ID: 2,17 in
#DONP566451
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 2.17 in (55.2 mm) |
| Length | 25-7/8 in (65.74 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Overall Length | 25-7/8 in (65.71 cm) |
| Series | HPK05 |
| Length Range | 25 to 25.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566451 |
| DT9400268UM |
| R940H2606H |
| 11026D06BN |
| 2060657 |
| H940026005BN |
| LH95027 |
| LH95027V |

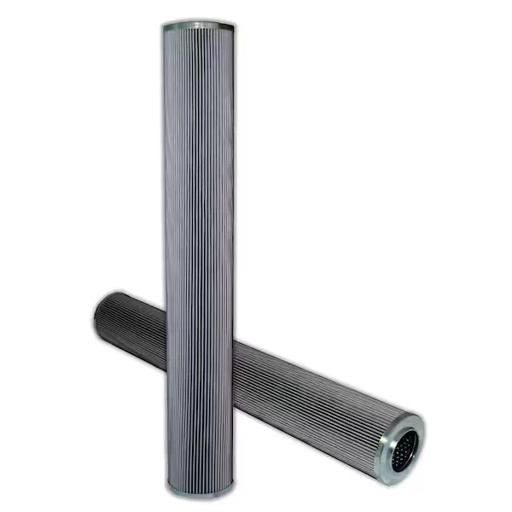

| 929892Q |
| 929893Q |
| SBF940026S3 |
| SBF940026Z5B |
| SBF940026Z5V |
| 9400266UM |
| 9400266UMV |
| HC9400FDN26H |
| HC9400FDN26Z |
| HC9400FKN26H |
| HC9400FKN26Z |
| HC9400FUN26H |
| HC9400FUN26Z |
| HC9400FCN26H |
| HC9400FCN26Z |
| 1.10.26D06BN |
| SBF-9400-26Z5B |
| SBF9400-26Z5B |
| SBF9400-26Z5V |
