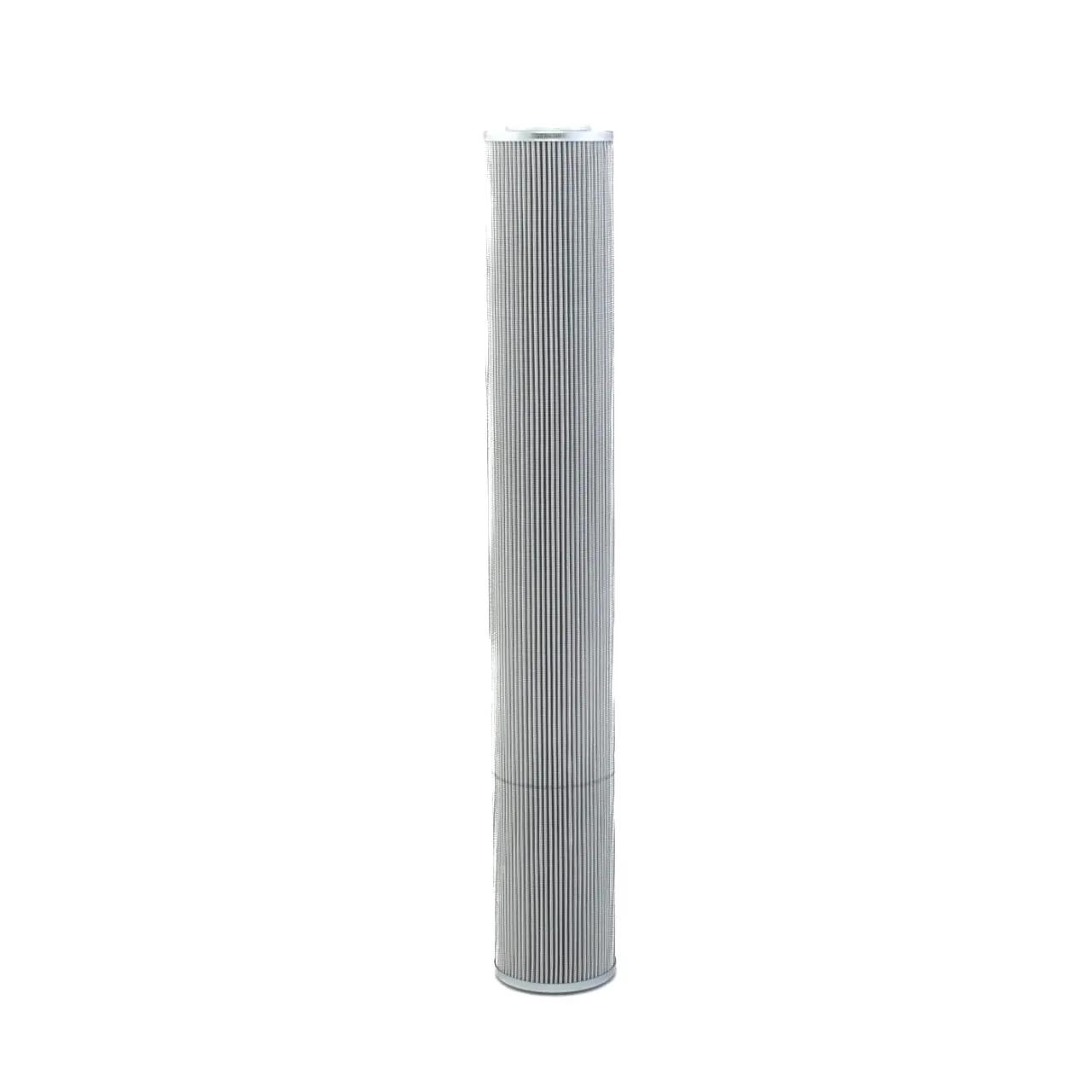

Hydraulic, Cartridge L: 25,91 in, OD: 3,79 in, ID: 2,17 in
#DONP566453
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.17 in (55.2 mm) |
| Length | 25-29/32 in (65.81 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 25.88 in (657.4 mm) |
| Series | HPK05 |
| Length Range | 25 to 25.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| DT94002625UM |
| R940H2625H |
| HC9400FDT26H |
| HC9400FDT26Z |
| HC9400FKT26H |
| HC9400FKT26Z |
| HC9400FUT26H |
| HC9400FUT26Z |
| HC9400FCT26H |
| HC9400FCT26Z |
| HP94L2625MB |
| P566453 |
| 11026D26BN |
| 2060659 |
| H940026020BN |
| LH95084V |
| 933258Q |
| PR2786 |
| SBF940026S1 |
| SBF940026Z2B |
| SBF940026Z2V |
| 94002625UM |
| 94002625UMV |
| HC9400FRT26Z |
| HC9400FHT26Z |
