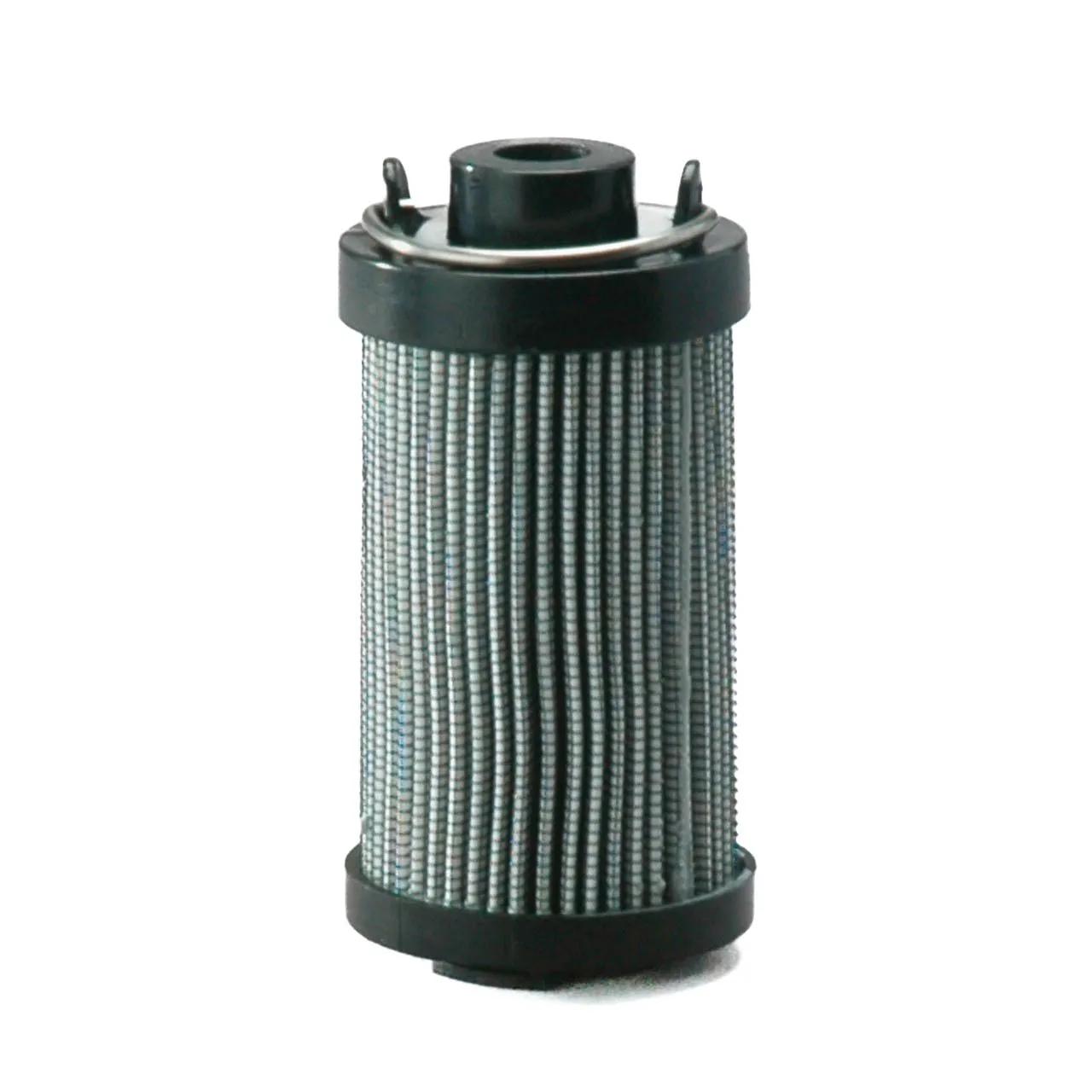

Hydraulic, Cartridge L: 3,31 in, OD: 1,88 in, ID: 0,87 in
#DONP566962
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 0.87 in (22.1 mm) |
| Length | 3-5/16 in (8.41 cm) |
| Outer Diameter | 1-7/8 in (4.78 cm) |
| Overall Length | 3.89 in (98.9 mm) |
| Length Range | 3 to 3.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP06RNL46MV |
| P566962 |
| DT0060R8UM |
| RHR60G05B |
| RHR60G05V |
| ST1248 |
| SH74059 |
| 1262932 |
| 1262936 |
| 0060R005BN3HC |
| 0060R005BN4HC |
| 0060R005BNHC |
| 0060R005BN3HCV |
| 0060R005BN4HCV |
| 0060R005BNHCV |
| 0060R005ONV |
| 0060R005PHCV |
| 0060R005BNHC2 |
| 020060R6VG3 |
| HC2196FDN4H |
| HC2196FDN4H50 |
| HC2196FDN4Z |
| HC2196FDN4Z50 |
| HC2208FDN4H |
| HC2196FMN4H |
| HC2196FMN4H50 |
| HC2196FMN4Z |
| HC2196FMN4Z50 |
| HC2208FMN4H |
| HC2196FKN4H50 |
| HC2208FKN4H |
| PR3240 |
| SBF0060RZ5B |
| SBF0060RZ5V |
| SBF0060RZ05V |
| RE014E05B |
| RE014G05B |
| RE014G05V |
| 060R005NV |
| 15250406V |
| ER602V1C05 |
| VR602V1C05 |
| R49D05GV |
| R49D05EV |
| DER602V1C05 |
| BE06RNL46MV |
| HC2196FKN4H |
| HC2196FKN4Z |
| HC2196FCN4H |
| HC2196FCN4Z |
| HC2196FCN4Z50 |
| HC2196FKN4Z50 |
| HC2196FRN4H |
| HC2196FRN4H50 |
| HC2196FRN4Z |
| HC2196FHN4H |
| HC2196FHN4H50 |
| HC2196FHN4Z |
| HC2196FHN4Z50 |
| HC2208FHN4H |
| HC2196FCN4H50 |
| HC2196F |
