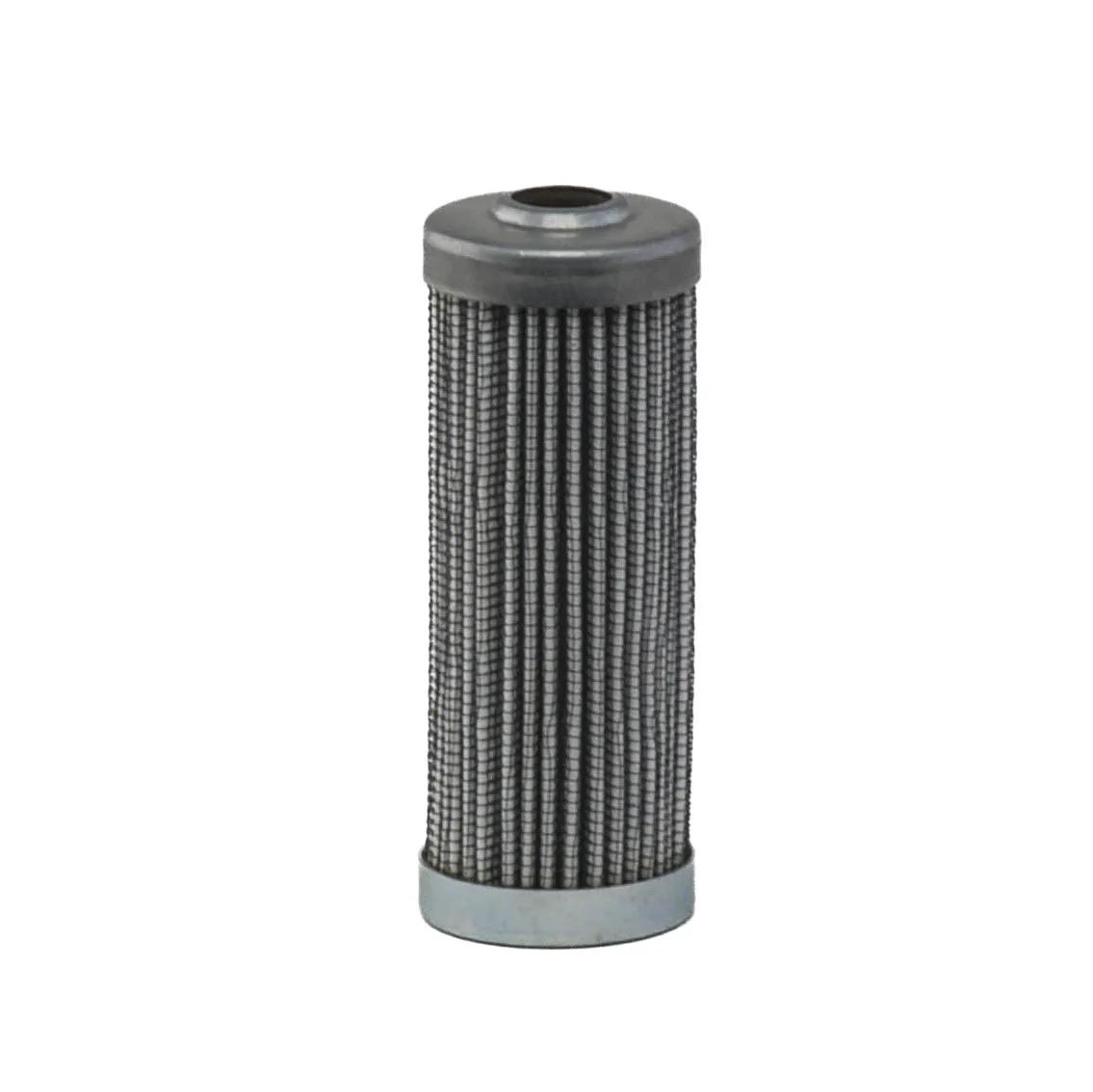

Hydraulic, Cartridge L: 3,66 in, OD: 1,38 in, ID: 0,49 in
#DONP566646
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 0.49 in (12.5 mm) |
| Length | 3-21/32 in (9.3 cm) |
| Outer Diameter | 1-3/8 in (3.51 cm) |
| Overall Length | 3.68 in (93.5 mm) |
| Length Range | 3 to 3.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566646 |
| DT0030D5UM |
| 50057 |
| FDHD30G03V |
| 0030D003BNHC |
| HP03DNL43MB |
| HP03DNL43MV |
| 1260900 |
| 0030D003BN |
| 0030D003BN3HC |
| 0030D003BN4HC |
| 2056541 |
| 1263404 |
| 2059909 |
| 0030D003BN3HCV |
| 0030D003BN4HCV |
| 0030D003BNHCV |
| 0030D003BNV |
| 0030D003ONV |
| MP3134 |
| PR3031 |
| 0030EAM032F1 |
| SBF0030DS1B |
| SBF0030DS1V |
| SBF0030DZ3B |
| SBF0030DZ3V |
| SBF0030DZ03V |
| SE008E03V |
| SE008G03V |
| 0030D003N |
| 0030D003NV |
| 14120403V |
| BE03DNL43MV |
| H0030D003EV |
| SBF-0030D-Z3B |
| SBF0030D-Z3B |
| SBF0030D-Z3V |
| 0030 D003 BN3HC |
| 0030D003 BNHC |
