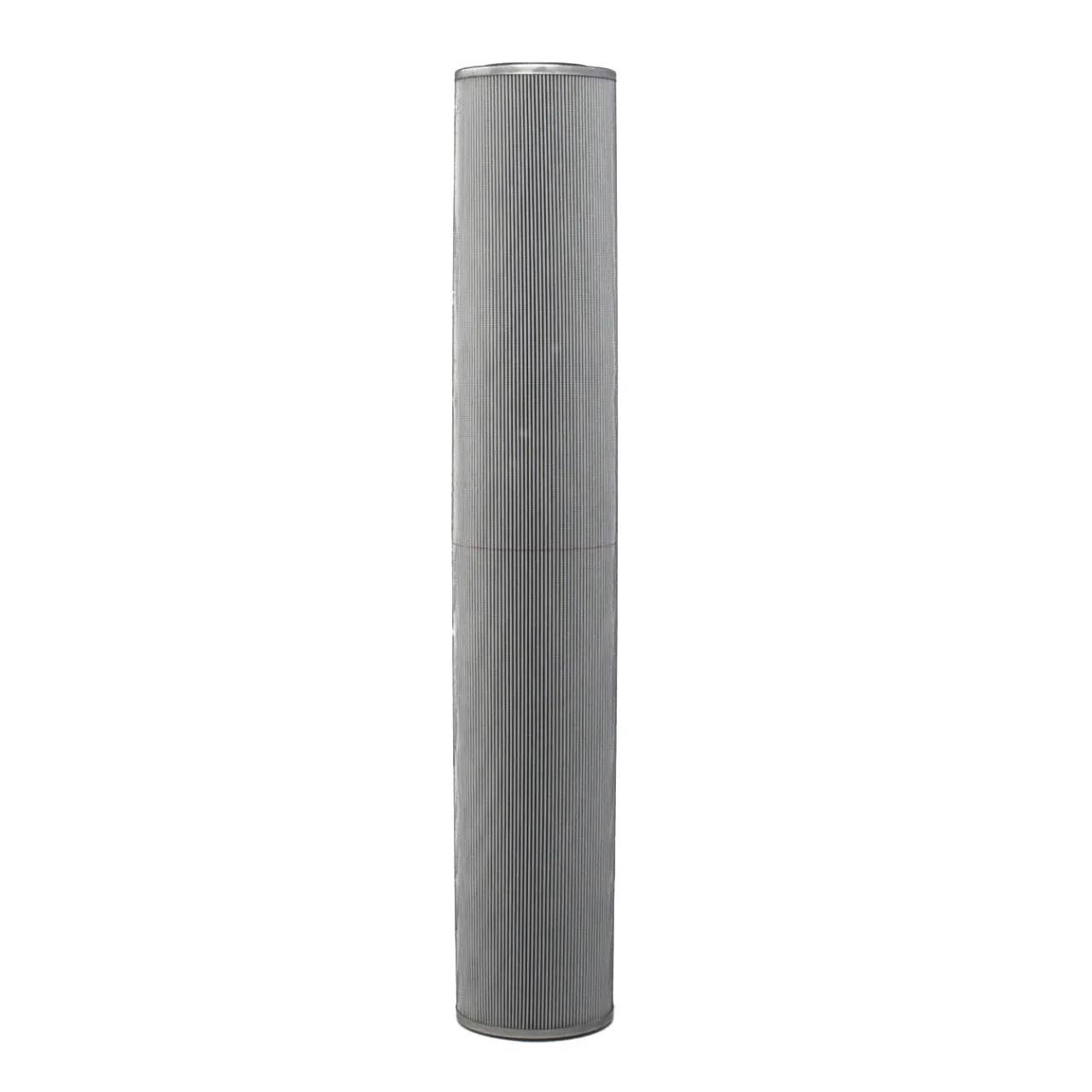

Hydraulic, Cartridge L: 35,59 in, OD: 6,02 in, ID: 2,87 in
#DONP566710
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 6 to 6.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2.87 in (72.9 mm) |
| Length | 35-19/32 in (90.4 cm) |
| Outer Diameter | 6-1/64 in (15.29 cm) |
| Overall Length | 35.94 in (912.9 mm) |
| Length Range | 35 to 35.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566710 |
| R48C03GP |
| 70136R03BN2625 |
| HC0101FDP36HX321 |
| HC0101FMP36H |
| HC0101FMP36HX321 |
| HC0101FMP36Z |
| HC0101FKP36HX321 |
| HP101L363MB |
| HP101L363MV |
| HC0101FRP36H |
| HC0101FRP36Z |
| HC0101FHP36H |
| HC0101FHP36HX321 |
| HC0101FHP36Z |
| R321G03P |
| 2068335 |
| 2063373 |
| 02063373 |
| 02068335 |
| BE1013603A |
| OFS8403B |
| DE0101B8C03 |
| SBF600036S1B |
| K4100 |
| A910269 |
| A910204 |
| H83250GDB |
| K1000 |
| DE0101V8C03 |
| E0101V8C03 |
| H83250GDV |
| KF603605 |
| KM603605 |
| LH95387 |
| HC0101FKP36Z |
| HC0101FDP36H |
| HC0101FDP36Z |
| HC0101FKP36H |
| HC0101FUP36H |
| HC0101FUP36Z |
| 934180Q |
| SBF600036Z3B |
| SBF600036Z3V |
| HC0101FCP36H |
| 6X363UM |
| 6X363UMV |
| E0101B8C03 |
| HC0101FCP36Z |
| DT6365UM |
| HC0101FCP36HX321 |
| TT626365B |
| TT626366B |
| LEX6363M |
| 7228580 |
| MF0062696 |
| V0101B8C03 |
| BE101L363MB |
| 7228581 |
| V0101V8C03 |
| BE101L363MV |
| HC2618FKP36H |
| HC2618FKP36Z |
| SBF6000-36Z3B |
| SBF6000-36Z3V |
