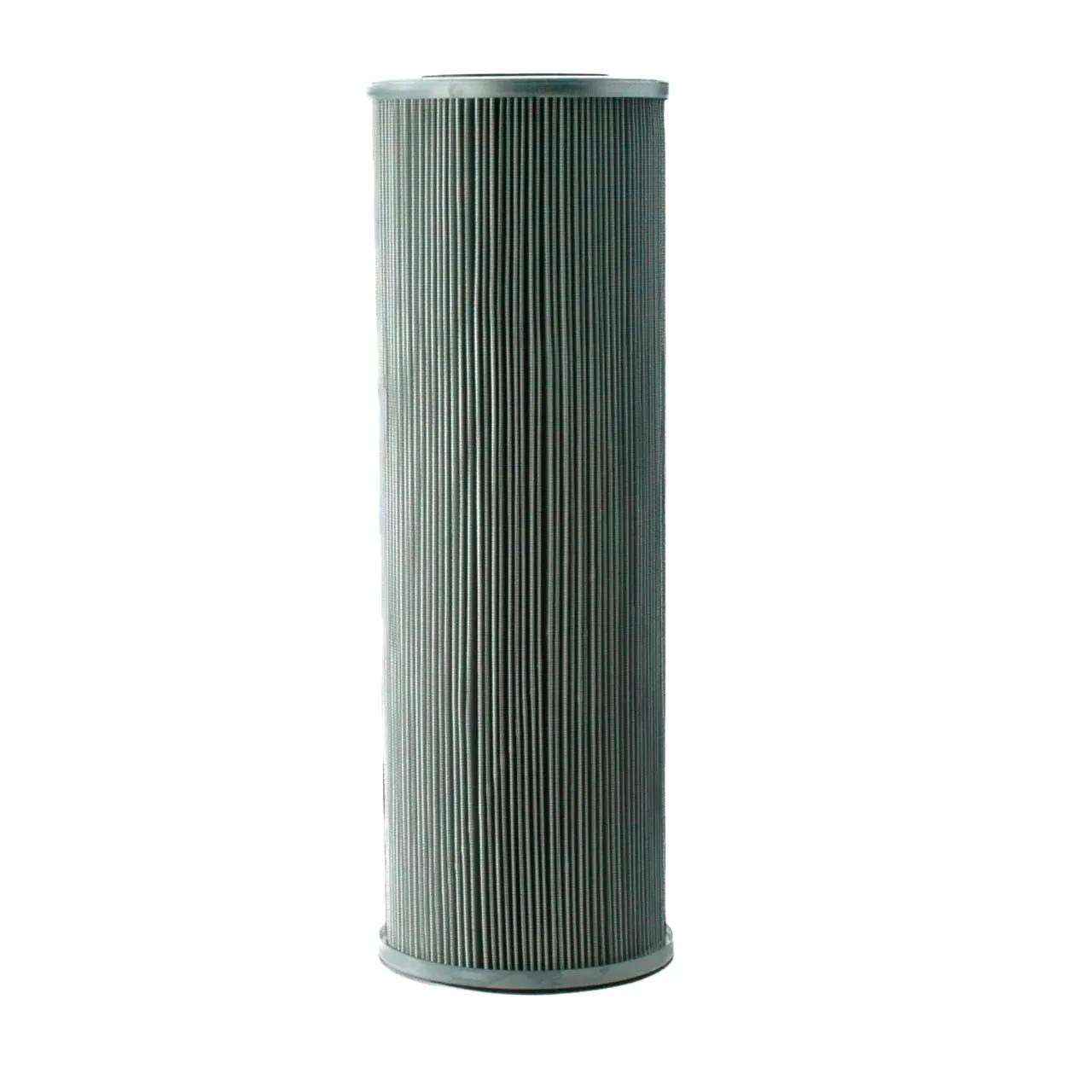

Hydraulic, Cartridge L: 35,59 in, OD: 6,02 in, ID: 2,87 in
#DONP566711
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 6 to 6.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 2.87 in (72.9 mm) |
| Length | 35-19/32 in (90.4 cm) |
| Outer Diameter | 6-1/64 in (15.29 cm) |
| Overall Length | 35.94 in (912.9 mm) |
| Length Range | 35 to 35.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP101L366MB |
| HP101L366MV |
| P566711 |
| R48C06GP |
| HC0101FDN36HX321 |
| HC0101FDN36ZX321 |
| HC0101FKN36HX321 |
| HC0101FMN36H |
| HC0101FMN36HX321 |
| HC0101FMN36ZX321 |
| HC0101FKN36ZX321 |
| HC0101FRN36H |
| HC0101FRN36Z |
| HC0101FRN36ZX321 |
| HC0101FHN36H |
| HC0101FHN36HX321 |
| SBF600036S3B |
| HC0101FHN36Z |
| HC0101FHN36ZX321 |
| BE1013606A |
| 2068345 |
| R321G06P |
| 02068345 |
| OFS8406B |
| HF35038 |
| DE0101B8C05 |
| A910201 |
| K1100 |
| A910266 |
| H83250HDB |
| KM60362 |
| KM60363 |
| HC0101FKN36H |
| LH95388 |
| HC0101FDN36H |
| HC0101FDN36Z |
| HC0101FKN36Z |
| HC0101FUN36H |
| 6X366UM |
| HC0101FUN36Z |
| SBF600036Z5B |
| SBF600036Z5V |
| 6X366UMV |
| E0101B8C05 |
| HC0101FCN36H |
| HC0101FCN36Z |
| DE0101V8C05 |
| DT6368UM |
| E0101V8C05 |
| H83250HDV |
| HC0101FMN36Z |
| HC0101FCN36HX321 |
| HC0101FCN36ZX321 |
| MF0062697 |
| TT6263610B |
| LEX6366M |
| V0101B8C05 |
| 7228582 |
| BE101L366MB |
| 7228583 |
| BE101L366MV |
| V0101V8C05 |
| 933919Q |
| HC2618FKN36H |
| HC2618FKN36Z |
| KM60182 |
| SBF6000-36Z5B |
| SBF6000-36Z5V |
| HP101L3610MV |
