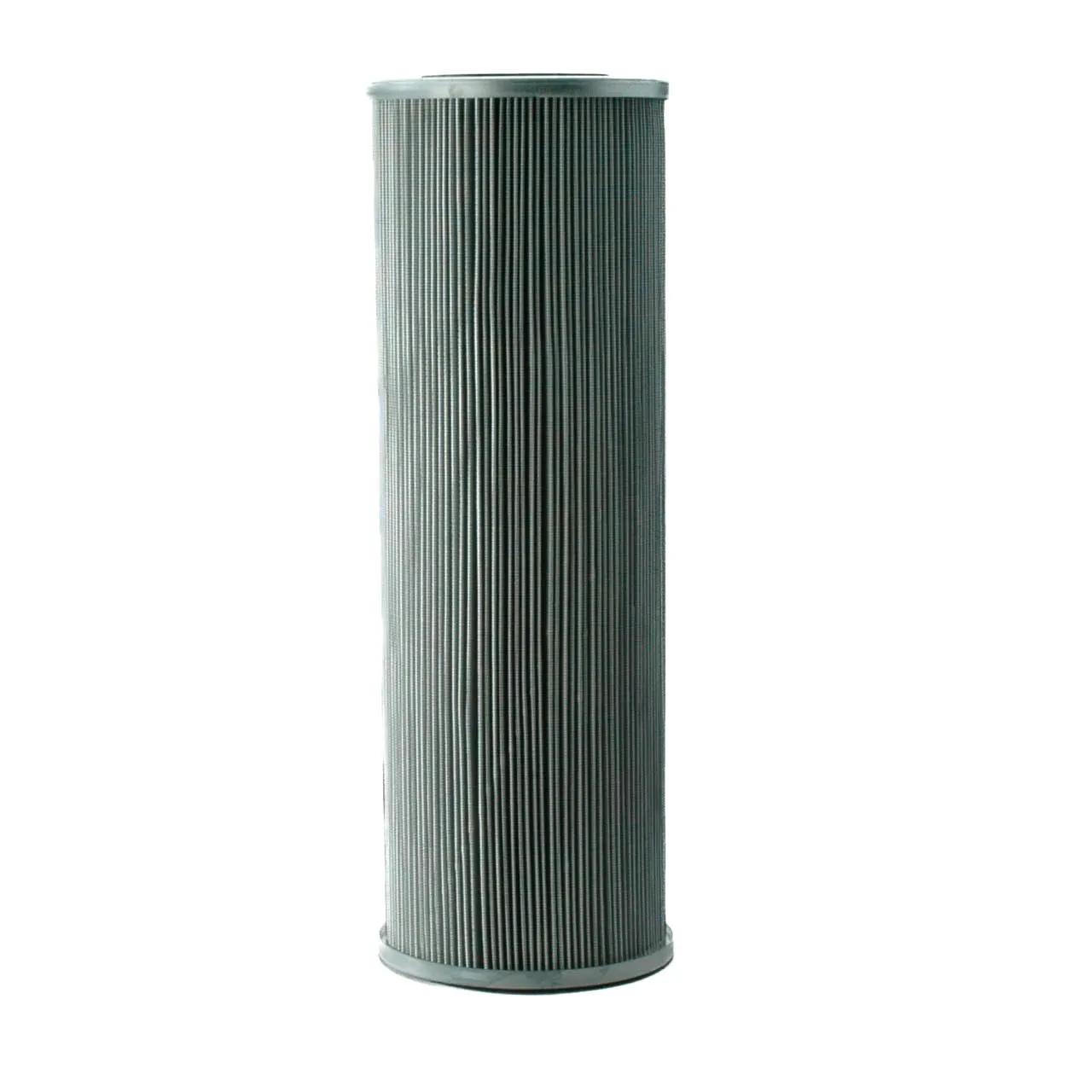

Hydraulic, Cartridge L: 35,59 in, OD: 6,02 in, ID: 2,87 in
#DONP566713
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 6 to 6.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.87 in (72.9 mm) |
| Length | 35-19/32 in (90.4 cm) |
| Outer Diameter | 6-1/64 in (15.29 cm) |
| Overall Length | 35.94 in (912.9 mm) |
| Length Range | 35 to 35.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP101L3625MB |
| HP101L3625MV |
| P566713 |
| DT63625UM |
| KM603615 |
| LH95386 |
| HC0101FDT36HX321 |
| HC2618FDT36H |
| HC2618FDT36HX321 |
| HC0101FMT36H |
| HC0101FMT36HX321 |
| HC2618FMT36H |
| HC2618FMT36HX321 |
| HC0101FKT36HX321 |
| HC2618FKT36H |
| HC2618FKT36HX321 |
| 933921Q |
| SBF600036Z25B |
| SBF600036Z25V |
| 6X3625UM |
| 6X3625UMV |
| V0101V8C20 |
| E0101V8C20 |
| R48C25GP |
| DE0101V8C20 |
| BE101L3625MV |
| HC0101FDT36H |
| HC0101FDT36Z |
| HC0101FKT36H |
| HC0101FKT36Z |
| HC0101FUT36H |
| HC0101FUT36Z |
| HC0101FCT36H |
| HC0101FCT36Z |
| HC2618FCT36H |
| HC0101FMT36Z |
| H83250JDV |
| TT6263625B |
| HC0101FHT36H |
| HC0101FRT36H |
| HC0101FRT36Z |
| HC2618FRT36H |
| HC0101FHT36HX321 |
| HC0101FHT36Z |
| HC2618FHT36H |
| R321G25P |
| HC2618FHT36HX321 |
| 2059293 |
| 02059293 |
| OFS84025B |
| DE0101B8C20 |
| E0101B8C20 |
| SBF600036S15B |
| BE1013625A |
| H83250JDB |
| LEX63625M |
| 7228578 |
| V0101B8C20 |
| MF0062699 |
| BE101L3625MB |
| 7228579 |
| HC0101FCT36HX321 |
| HC2618FCT36HX321 |
| SBF |
