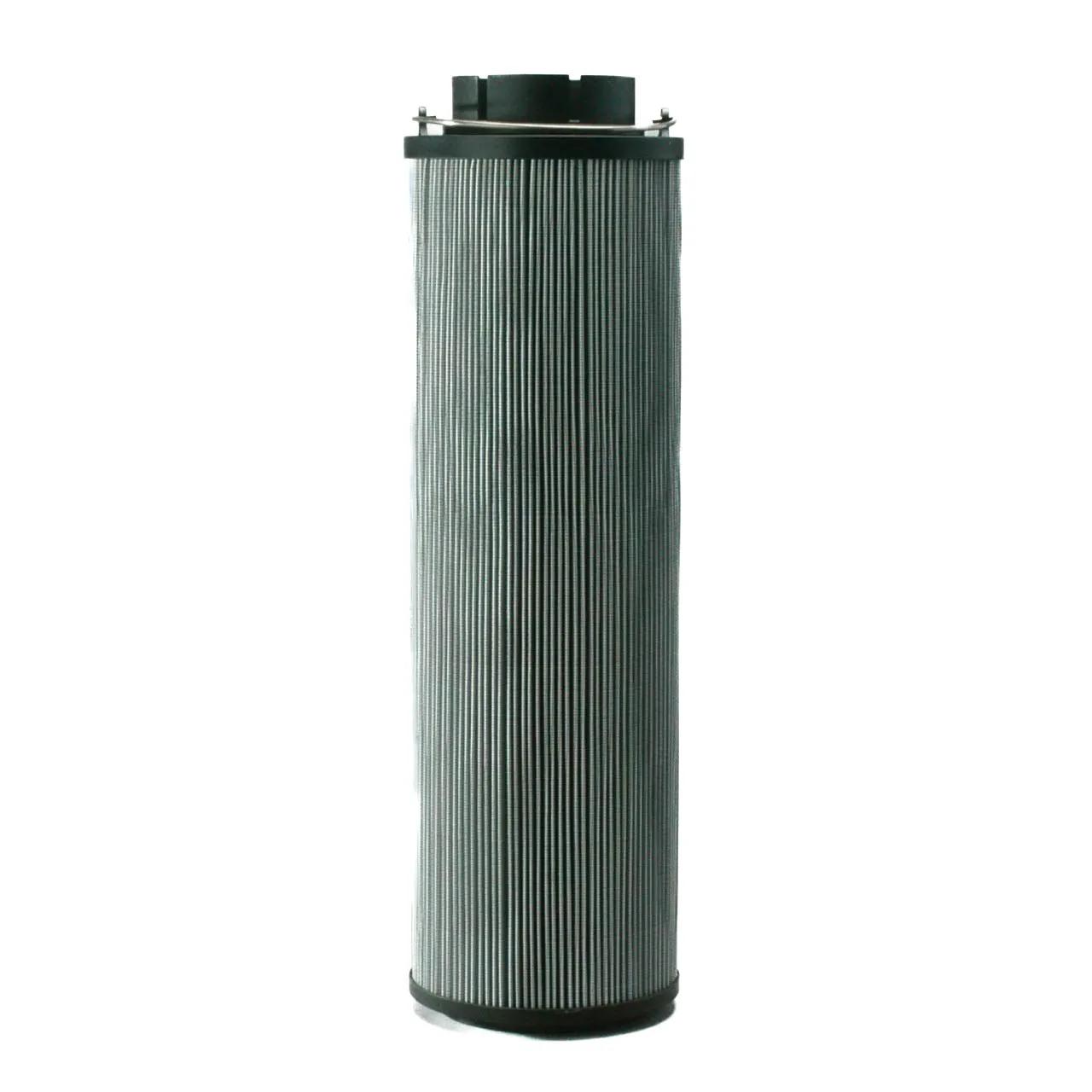

Hydraulic, Cartridge L: 36,26 in, OD: 5,72 in, ID: 3,77 in
#DONP570314
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 6 Micron |
| Efficiency Beta 1000 (Micron) | 6 Micron |
| Inner Diameter | 3.77 in (95.8 mm) |
| Length | 36-17/64 in (92.13 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 36.18 in (919 mm) |
| Length Range | 36 to 36.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570314 |
| DT2600R6XP |
| RHR2600G03B |
| RHR2600G03V |
| 2600R003BN3HC |
| 2600R003BN4HC |
| HC2296FKN36H |
| HC2296FKN36Z |
| HC2296FCN36H |
| HC2296FCN36Z |
| 2600 R003 BN3HC |
| HC2296FCN36HX321 |
| R44D03GV |
