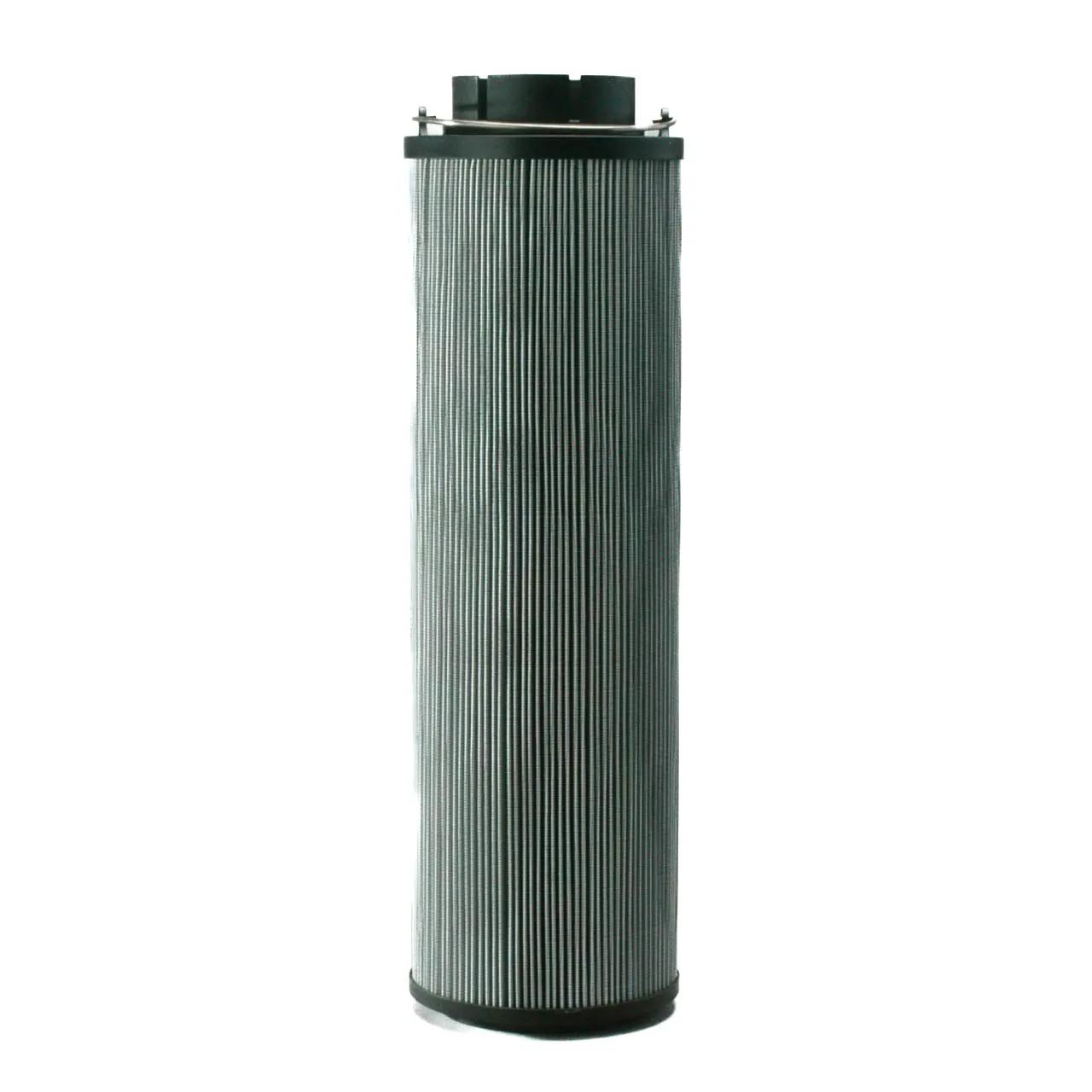

Hydraulic, Cartridge L: 36,26 in, OD: 5,72 in, ID: 3,78 in
#DONP567003
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 36-17/64 in (92.13 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 36.18 in (919 mm) |
| Length Range | 36 to 36.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP95RNL3612MB |
| HP95RNL3612MV |
| P567003 |
| PT23065MPG |
| DT2600R14UM |
| RHR2600G10B |
| RHR2600G10V |
| HF6901 |
| SH74116 |
| 2600R010ON |
| 2600R010BN4HX |
| 2062493 |
| 1268368 |
| 2600R010BN3HC |
| 2600R010BN4HC |
| 2600R010BNHC |
| 1263069 |
| 2060003 |
| 2067807 |
| 2600R010BN3HCV |
| 2600R010BN4HCV |
| 2600R010BN4HCVSO103H |
| 2600R010BNHCV |
| 2600R010ECONV |
| 2600R010ONV |
| 2600R010ONVSO103H |
| 2600R010PHCV |
| 2600R010BNHC2 |
| MP5064 |
| HC2295FDS36H |
| HC2296FDS36H |
| HC2296FDS36HX321 |
| HC2296FDS36Z |
| HC2296FDS36Z50 |
| HC2295FMS36H |
| HC2296FMS36H |
| HC2296FMS36HX321 |
| HC2296FMS36Z |
| HC2296FMS36Z50 |
| HC2296FKS36HX321 |
| 934234 |
| 2600EAR122F1 |
| SBF2600RZ10B |
| SBF2600RZ10V |
| RE600G10B |
| RE600G10V |
| RE600G10V2 |
| RE600N10V |
| 2600R010N |
| 2600R010NV |
| 15123612V |
| ER2602B8C10 |
| E2602V8C10 |
| V2602V8C10 |
| R44D10GV |
| DE2602V8C10 |
| BE95RNL3612MV |
| HC2295FKS36H |
| HC2296FKS36H |
| HC2296FKS36Z |
| HC2295FCS36H |
| HC2296FCS36H |
| HC2296FCS36Z |
| HC2295FCS36Z |
| HC2295FDS36Z |
| HC2295FKS36Z |
| HC2295FMS36Z |
| HC2295FUS36Z |
| HC2296FCS36Z50 |
| HC2296FKS36Z50 |
| H2600R012EB3V |
| HC2295FRS36H |
| HC2295FRS36Z |
| HC2296FRS36H |
| HC2296FRS36HX321 |
| HC2296FRS36Z |
| HC2296FRS36Z50 |
| HC2295FHS36H |
| HC2296FHS36 |
