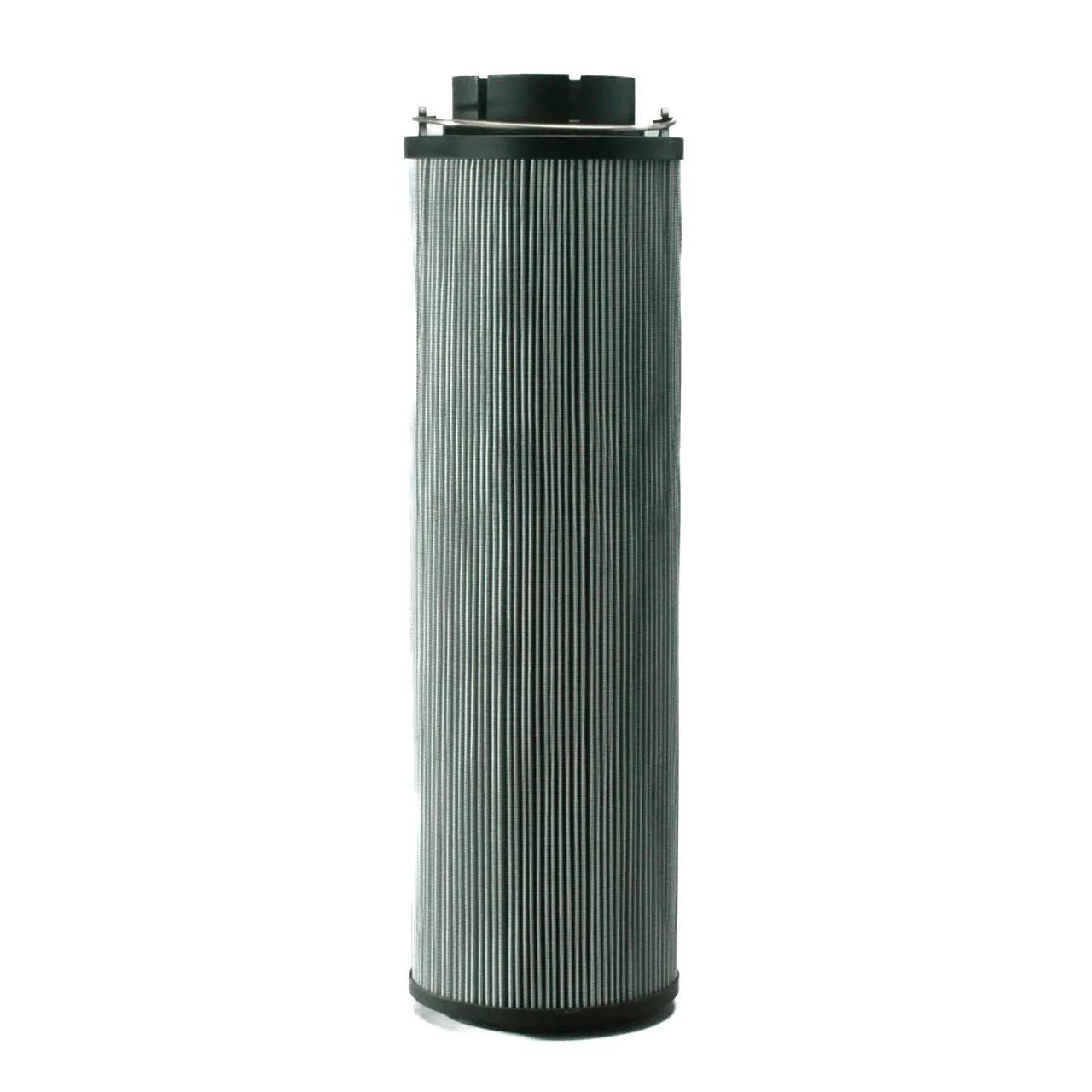

Hydraulic, Cartridge L: 36,26 in, OD: 5,72 in, ID: 3,78 in
#DONP570315
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Efficiency Beta 1000 (Micron) | 11 Micron |
| Inner Diameter | 3.78 in (96.1 mm) |
| Length | 36-17/64 in (92.13 cm) |
| Outer Diameter | 5-23/32 in (14.53 cm) |
| Overall Length | 36.18 in (919 mm) |
| Length Range | 36 to 36.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P570315 |
| DT2600R11XP |
| RHR2600G10V |
| 1263065 |
| 1263778 |
| 2600R010BN3HC |
| HC2296FDS36H50 |
| HC2296FDS36H50X321 |
| HC2296FMS36H50 |
| HC2296FMS36H50X321 |
| HC2296FKS36H50X321 |
| HC2296FKS36H |
| HC2296FKS36Z |
| HC2296FCS36H |
| HC2296FCS36Z |
| HC2296FKS36H50 |
| HC2296FCS36H50 |
| HC2296FHS36H50 |
| HC2296FHS36H50X321 |
| MP17059 |
| 2600 R010 BN3HC |
| HC2296FCS36HX321 |
| HC2296FCS36H50X321 |
| 2600R010BN3HCB6 |
| 2600R010BN4HC |
| RHR2600G10B |
| R44D10GV |
