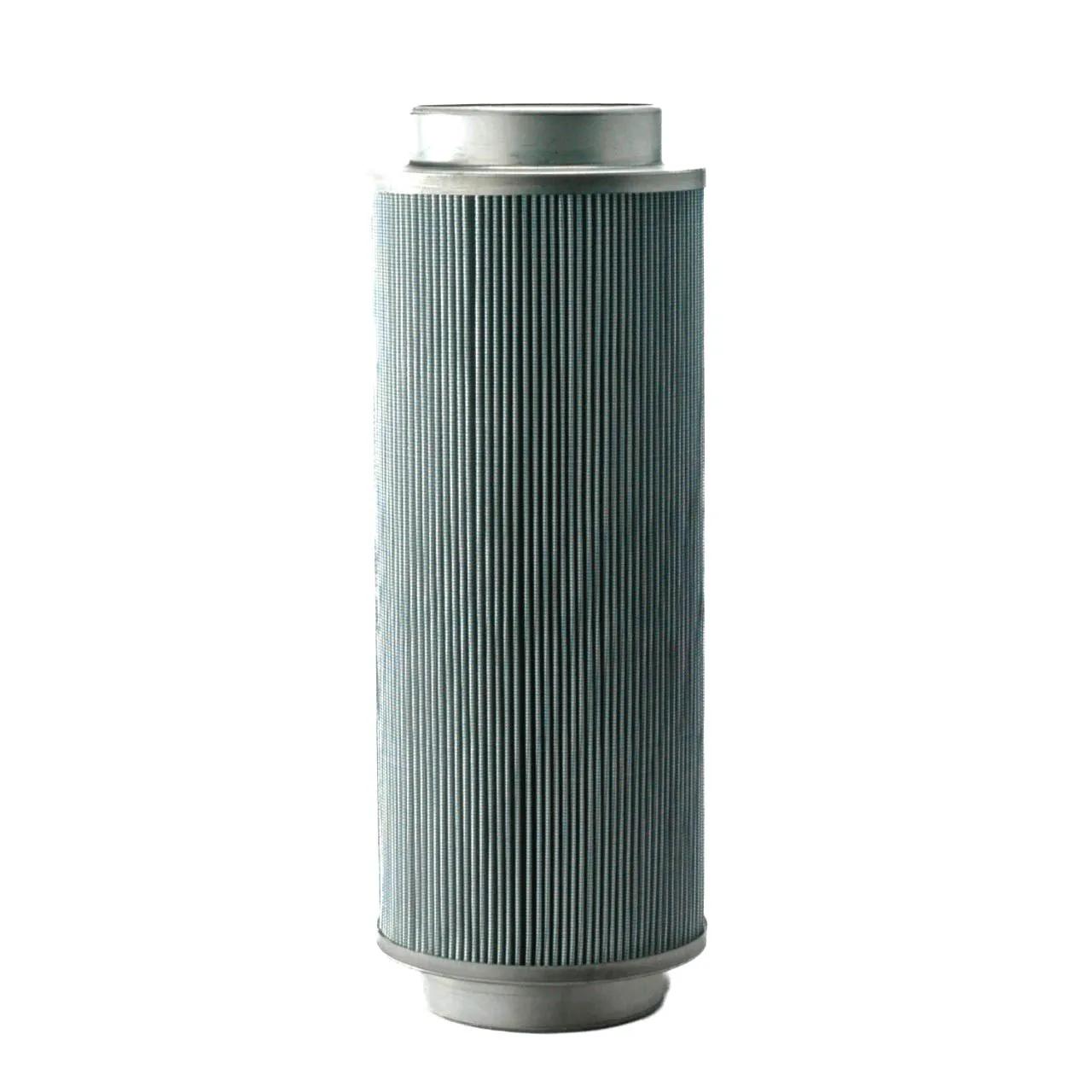

Hydraulic, Cartridge L: 37,95 in, OD: 5,94 in, ID: 4,12 in
#DONP566256
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 4.12 in (104.7 mm) |
| Length | 37-61/64 in (96.39 cm) |
| Outer Diameter | 5-15/16 in (15.09 cm) |
| Overall Length | 37.8 in (960.2 mm) |
| Series | W041 |
| Length Range | 37 to 37.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP8310L396MB |
| HP8310L396MV |
| P566256 |
| 1295 |
| P171050 |
| DT8310398UM |
| 168310XH6SLS000V |
| 168310XH6XLS000V |
| R831H3906H |
| F831039K6V |
| H831039005BN |
| A912075 |
| KM8310396V |
| KMP8310A06V39 |
| LH95600 |
| MP3408 |
| HC8310FDN39HX321 |
| HC8310FDN39ZX321 |
| HC8310FMN39H |
| HC8310FMN39HX321 |
| HC8310FMN39ZX321 |
| HC8310FKN39HX321 |
| HC8310FKN39ZX321 |
| 932873Q |
| 39QPMLZ5V |
| 39QPMLS3V |
| 8310396UM |
| 15033906V |
| V0411V8L05 |
| E0411B8L05 |
| E0411V8L05 |
| Y3906LND |
| R928016741 |
| DE0411V8L05 |
| BE8310L396MV |
| HC8310FDN39H |
| HC8310FDN39Z |
| HC8310FKN39H |
| HC8310FKN39Z |
| HC8310FUN39H |
| HC8310FUN39Z |
| HC8310FCN39H |
| HC8310FCN39Z |
| HC8310FMN39Z |
| DP83250HFV |
| 2831L06V39 |
| 3831DGEV39 |
| SF8310396UMV |
| HC8310FRN39Z |
| HC8310FRN39H |
| HC8310FHN39ZX321 |
| HC8310FCN39HX321 |
| HC8310FCN39ZX321 |
| PH73912CG |
| 7242025 |
| 7253757 |
| 02060845 |
| 11439D06BN |
| 11439D06BNV |
| 39QPML-Z5V |
| 39QZ5V |
| K |
| 2060845 |
| HPQ220275L406MV |
