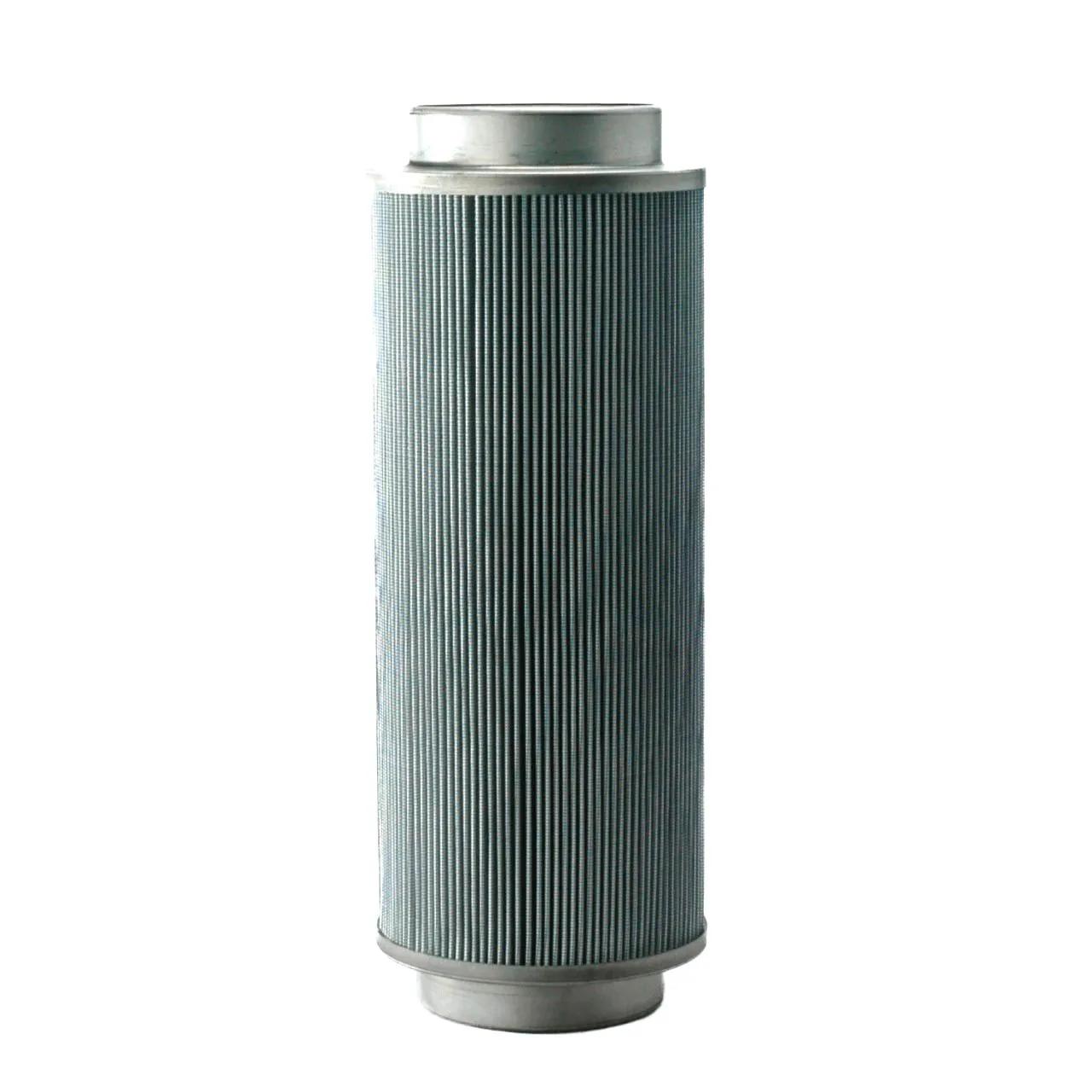

Hydraulic, Cartridge L: 37,95 in, OD: 5,94 in, ID: 4,12 in
#DONP566257
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 4.12 in (104.7 mm) |
| Length | 37-61/64 in (96.39 cm) |
| Outer Diameter | 5-15/16 in (15.09 cm) |
| Overall Length | 37.8 in (960.2 mm) |
| Series | W041 |
| Length Range | 37 to 37.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP83103912MB |
| HP8310L3912MV |
| P566257 |
| 7293 |
| R64C10GV |
| 557293 |
| 57293 |
| H8014 |
| H9014 |
| P171051 |
| DT83103914UM |
| 168310XH10SLS000V |
| 168310XH10XLS000V |
| R831H3912A |
| F831039K12V |
| R434G10 |
| R434G10V |
| HF30340 |
| HF30341 |
| 52YR90 |
| SH87030 |
| 2060639 |
| 2070199 |
| 10639D12BN |
| 11439D12BN |
| H831039010BN |
| 2071197 |
| 11439D12BNV |
| FFPAVL11132C1 |
| 05830010VG10BP39 |
| 301056 |
| A912079 |
| KM83103912V |
| KMP8310A12V39 |
| LH4565 |
| LH95069V |
| LH95610 |
| MP3209 |
| MP3409 |
| HC8310FDS39HX321 |
| HC8310FMS39HX321 |
| HC8310FMS39ZX321 |
| HC8310FKS39HX321 |
| 927946 |
| 928085 |
| 932874Q |
| PR3459 |
| R831H3912H |
| 9326798 |
| 9326832 |
| 39QPMLS7B |
| 39QPMLZ10V |
| SBF830039Z10B |
| SBF830039Z10V |
| 39QPMLS10V |
| 39QPMLS15V |
| 39QPMLS25V |
| 39QPMLS7V |
| SP300E010B |
| 83103912UM |
| 15033912V |
| V0411V8L10 |
| Y3912LND |
| R928016742 |
| 3I0616 |
| DE0411V8L10 |
| FFPAVL11132C10 |
| 165A205FY75 |
| BE8310L3912MV |
| 8636964 |
| HC8300FDS39Z |
| HC8310FDS39H |
| HC8310FDS39Z |
| HC8310FKS39H |
| HC8310FKS39Z |
| HC8310FUS39H |
| HC8310FUS39Z |
| HC8310FCS39H |
| HC8310FCS39Z |
| HC8310FMS39Z |
| DP83250KFV |
| 8830L12B39 |
| 2831L012V39 |
| 3831DGHV39 |
| SF83103912UMV |
| HF171045 |
| WGPS8339 |
| HC8310FRS39H |
| HC8310FRS39 |
| 2060846 |
