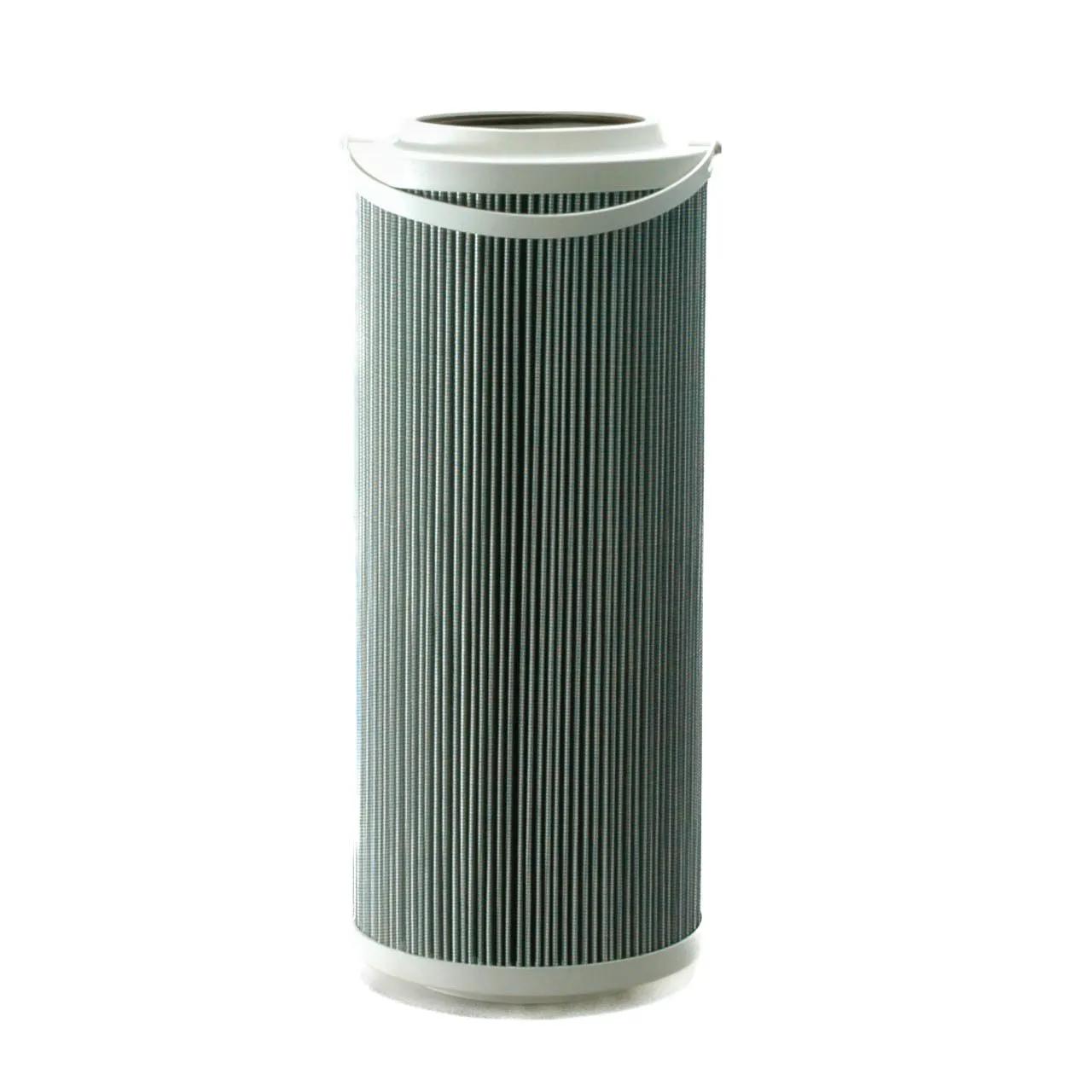

Hydraulic, Cartridge L: 38,25 in, OD: 3,99 in, ID: 2,53 in
#DONP566544
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2.53 in (64.3 mm) |
| Length | 38-1/4 in (97.16 cm) |
| Outer Diameter | 3-63/64 in (10.11 cm) |
| Length Range | 38 to 38.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566544 |
| DT8904395UM |
| C216G03 |
| LH95183 |
| LH95184 |
| HC8904FDP39HX321 |
| HC8904FMP39H |
| HC8904FMP39HX321 |
| HC8904FMP39Z |
| HC8904FKP39HX321 |
| SBF891439Z3B |
| SBF891439Z3V |
| 8915393UM |
| 8915393UMV |
| C31A03GV |
| HC8904FDP39H |
| HC8904FDP39Z |
| HC8904FKP39H |
| HC8904FKP39Z |
| HC8904FUP39H |
| HC8904FUP39Z |
| HC8904FCP39H |
| HC8904FCP39Z |
| HC8904FRP39Z |
| HC8904FRP39H |
| HC8904FHP39H |
| KMP8904AKF39V |
| HC8904FHP39HX321 |
| HC8904FHP39Z |
| KMP8904AKF39B |
| HC8904FCP39HX321 |
