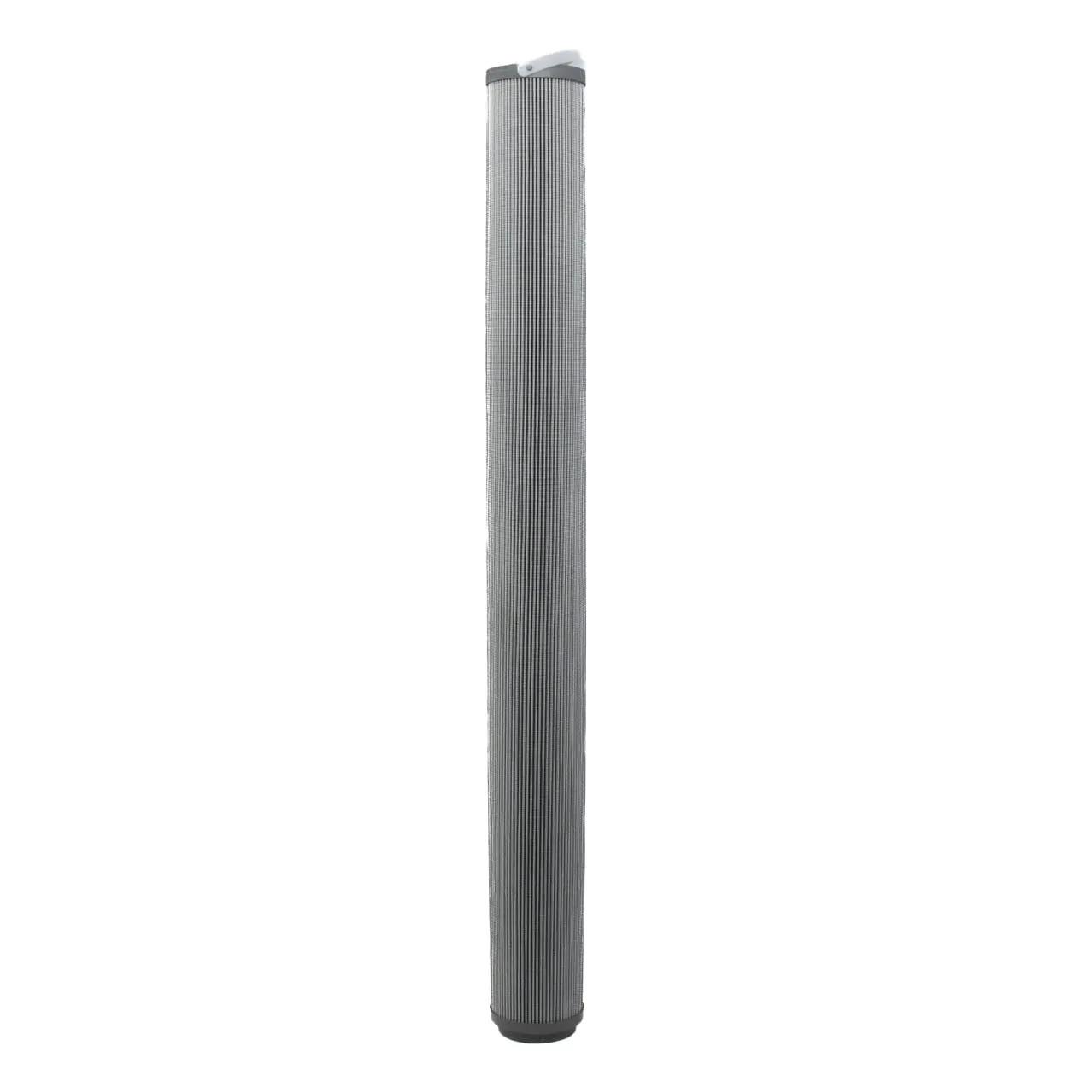

Hydraulic, Cartridge L: 38,25 in, OD: 3,99 in, ID: 2,53 in
#DONP566546
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 2.53 in (64.3 mm) |
| Length | 38-1/4 in (97.16 cm) |
| Outer Diameter | 3-63/64 in (10.11 cm) |
| Length Range | 38 to 38.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566546 |
| DT89043914UM |
| C216G10 |
| LH95181 |
| HC8904FDS39HX321 |
| HC8904FDS39ZX321 |
| HC8904FMS39H |
| HC8904FMS39HX321 |
| HC8904FMS39Z |
| HC8904FMS39ZX321 |
| HC8904FKS39HX321 |
| HC8904FKS39ZX321 |
| SBF891439Z10B |
| SBF891439Z10V |
| 89153912UM |
| 89153912UMV |
| C31A10GV |
| HC8904FDS39H |
| HC8904FDS39Z |
| HC8904FKS39H |
| HC8904FKS39Z |
| HC8904FUS39H |
| HC8904FUS39Z |
| HC8904FCS39H |
| HC8904FCS39Z |
| HC8904FRS39ZX321 |
| HC8904FRS39H |
| HC8904FRS39Z |
| HC8904FHS39H |
| KMP8904AKM39B |
| HC8904FHS39HX321 |
| HC8904FHS39Z |
| HC8904FHS39ZX321 |
| KMP8904AKM39V |
| HC8904FCS39HX321 |
| HC8904FCS39ZX321 |
