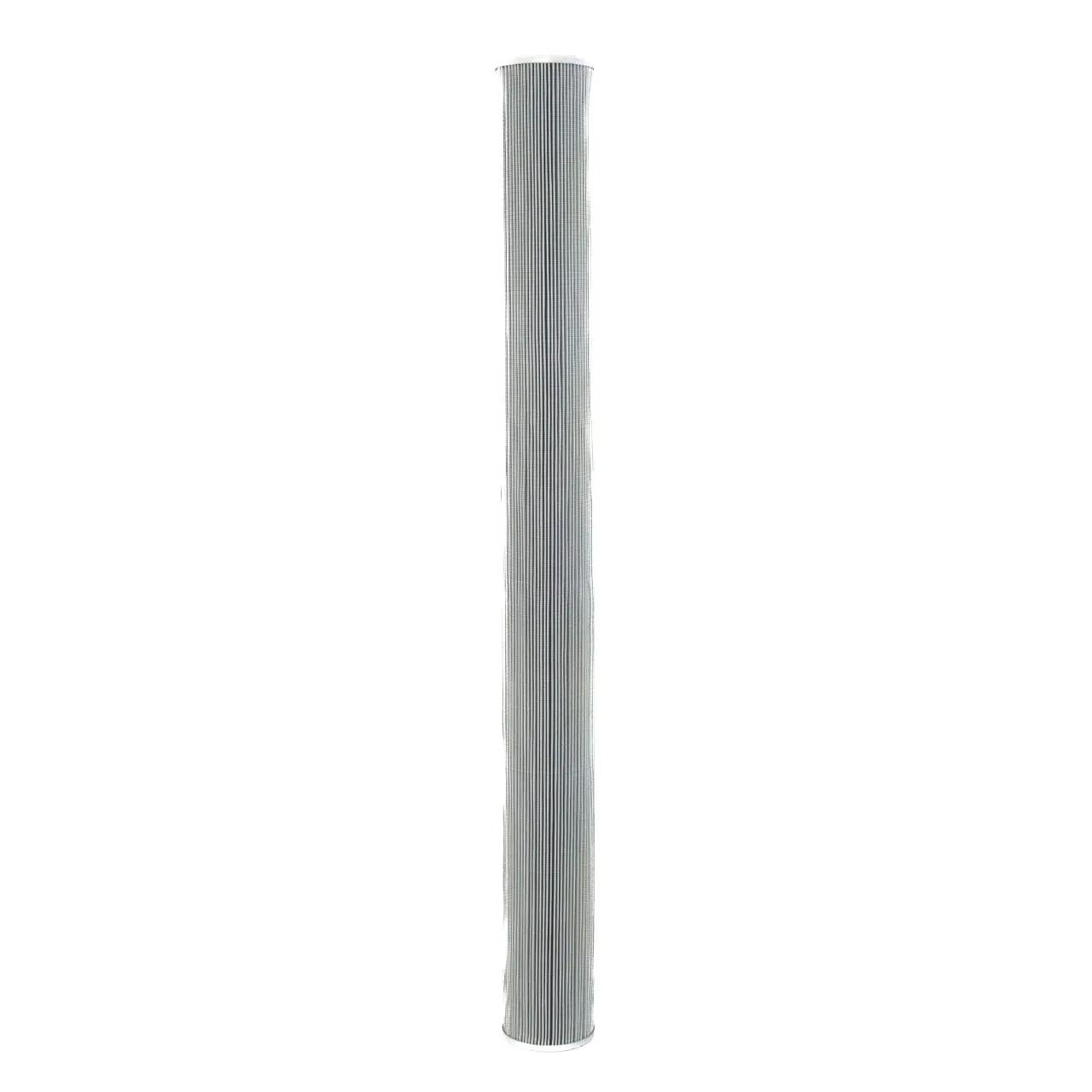

Hydraulic, Cartridge L: 38,7 in, OD: 3,79 in, ID: 2,11 in
#DONP566512
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 14 Micron |
| Inner Diameter | 2.11 in (53.6 mm) |
| Length | 38-45/64 in (98.3 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 38.72 in (983.5 mm) |
| Length Range | 38 to 38.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566512 |
| DT89003914UM |
| R890H3912H |
| 10839D12BN |
| H890039010BN |
| LH95021 |
| LH95021V |
| HC8900FDS39HX321 |
| HC8900FDS39ZX321 |
| HC8900FMS39H |
| HC8900FMS39HX321 |
| HC8900FMS39Z |
| HC8900FMS39ZX321 |
| HC8900FKS39HX321 |
| HC8900FKS39ZX321 |
| SBF890039Z10B |
| SBF890039Z10V |
| 89003912UM |
| 89003912UMV |
| HC8900FDS39H |
| HC8900FDS39Z |
| HC8900FKS39H |
| HC8900FKS39Z |
| HC8900FUS39H |
| HC8900FUS39Z |
| HC8900FCS39H |
| HC8900FCS39Z |
| HC8900FRS39H |
| HC8900FRS39HX321 |
| HC8900FRS39Z |
| HC8900FHS39H |
| HC8900FHS39HX321 |
| HC8900FHS39Z |
| HC8900FHS39ZX321 |
| KMP8900AKM39B |
| KMP8900AKM39V |
| HC8900FCS39HX321 |
| HC8900FCS39ZX321 |
| 1.08.39D12BN |
| SBF-8900-39Z10B |
| SBF-8900-39Z10V |
| SBF8900-39Z10B |
| SBF8900-39Z10V |
