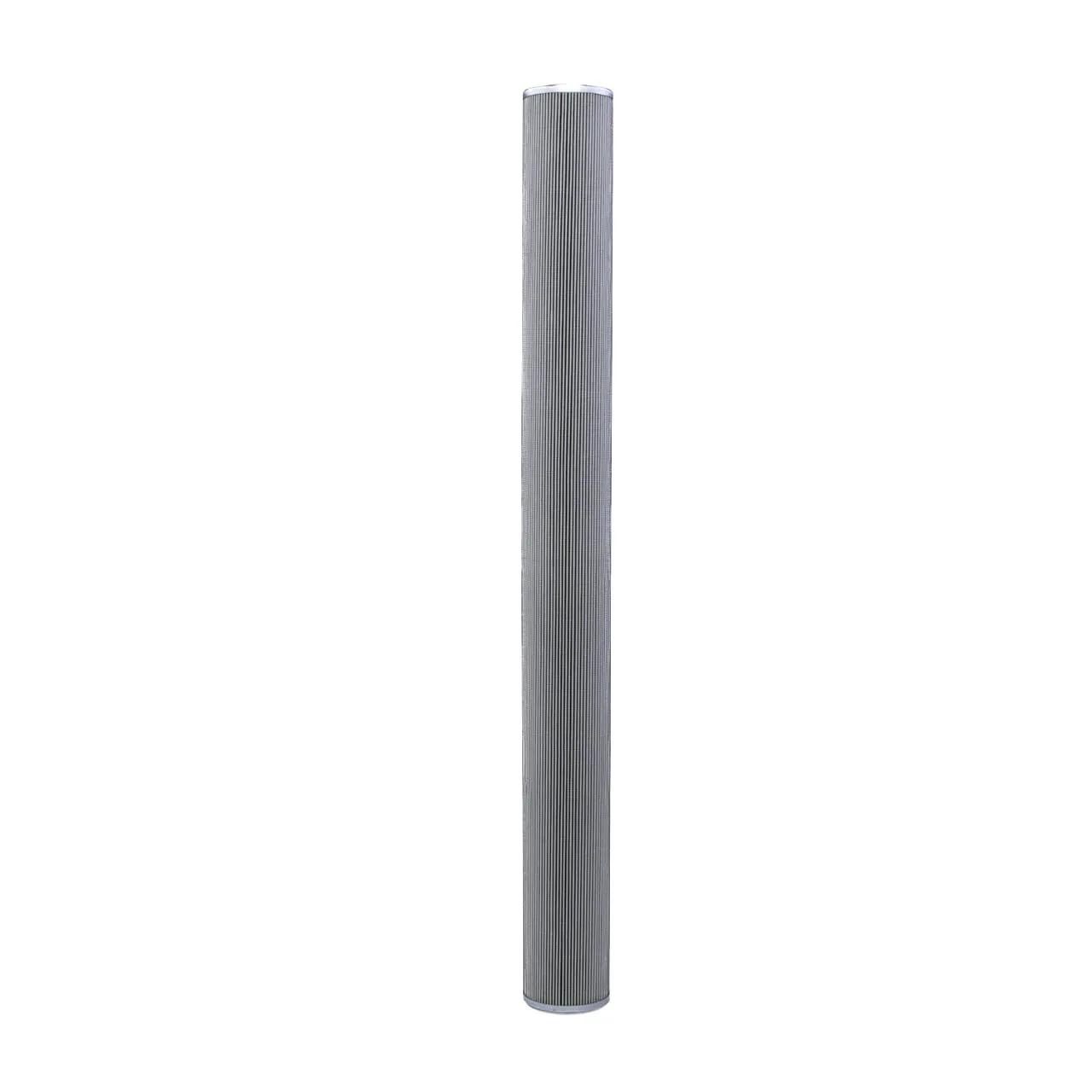

Hydraulic, Cartridge L: 38,9 in, OD: 3,79 in, ID: 2,17 in
#DONP566455
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 2.17 in (55.2 mm) |
| Length | 38-29/32 in (98.83 cm) |
| Outer Diameter | 3-51/64 in (9.65 cm) |
| Overall Length | 38.91 in (988.4 mm) |
| Length Range | 38 to 38.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP94L393MB |
| HP94L393MV |
| P566455 |
| P164591 |
| P171060 |
| DT9400395UM |
| R940H3903H |
| H9439MABL |
| H9439MAV |
| H9439MAVL |
| M69439MAB |
| M69439MABL |
| M69439MAV |
| M69439MAVL |
| D624G03V |
| FD624G03 |
| FD624G03V |
| SH57110 |
| SH57110V |
| 11039D03BN |
| H940039003BN |
| 1269104 |
| 2063105 |
| 11039D03BNV |
| H940039003BN3 |
| H940039003BN3V |
| H940039003BNV |
| 304764 |
| 0594003VG10BP39 |
| 3047643VG |
| LH95029 |
| LH95029V |
| 94393 |
| 933263Q |
| 933263 |
| R940H3903A |
| 9326732 |
| SBF940039S1 |
| SBF940039Z3B |
| SBF940039Z3V |
| SBF940039S1V |
| SP250E03V |
| 9400393UM |
| 9400393UMV |
| BE94003903A |
| BE94003903AV |
| R928016915 |
| R928016931 |
| 76119937 |
| P9400D39N3NBR |
| HC9400FDP39H |
| HC9400FDP39Z |
| HC9400FKP39H |
| HC9400FKP39Z |
| HC9400FUP39H |
| HC9400FUP39Z |
| HC9400FCP39H |
| HC9400FCP39Z |
| HC9400FMP39H |
| HC9400FMP39Z |
| 2940L03B39 |
| 2940L03V39 |
| 3940GGCB39 |
| 3940GGCV39 |
| 8940DGDB39 |
| 8940DGDV39 |
| 8940L03V39 |
| 15113903 |
| 15113903V |
| A912336 |
| A912339 |
| DT9400395 |
