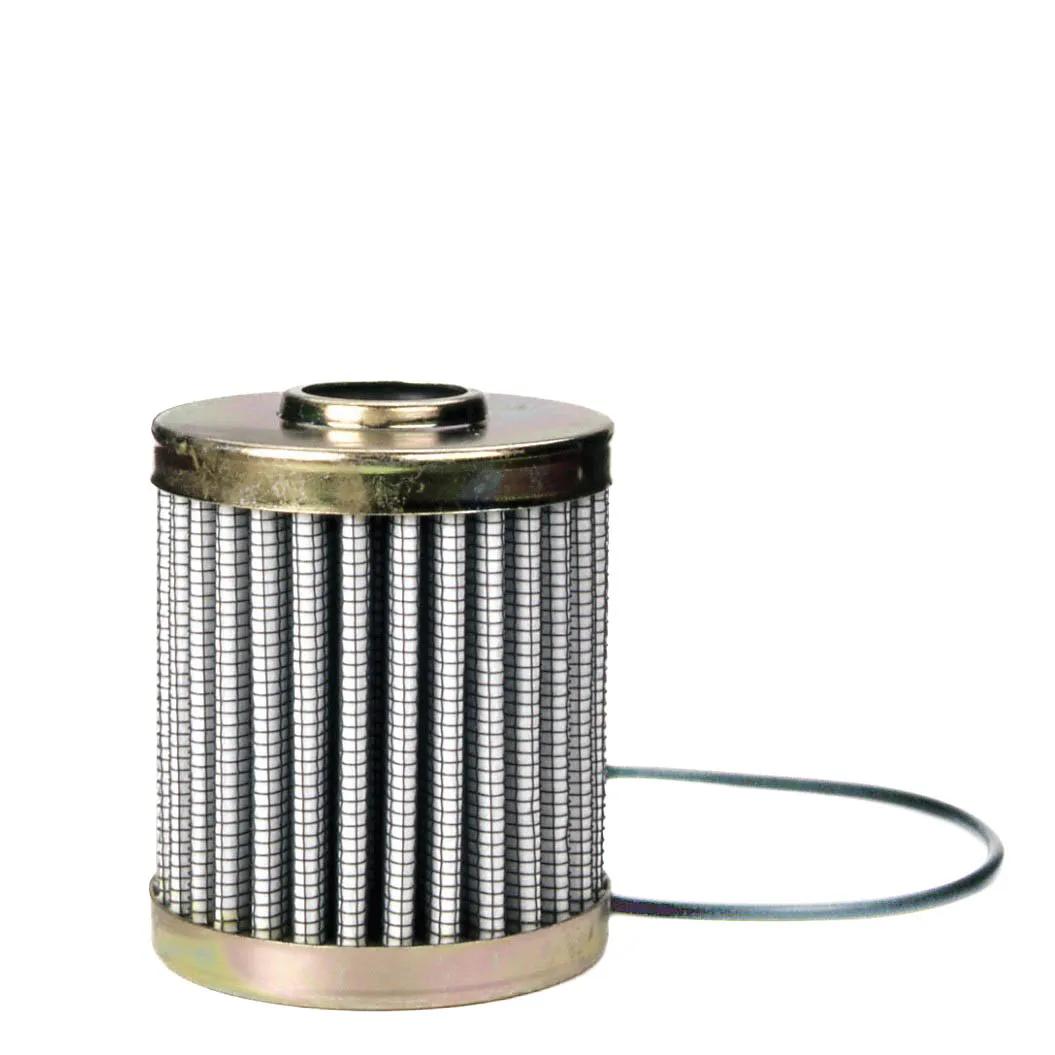

Hydraulic, Cartridge L: 4,02 in, OD: 2,9 in, ID: 1,24 in
#DONP567014
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.24 in (31.5 mm) |
| Length | 4-1/64 in (10.21 cm) |
| Outer Diameter | 2-29/32 in (7.39 cm) |
| Overall Length | 4.1 in (104.2 mm) |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP27L46MB |
| P567014 |
| AFKOVL936 |
| 40751 |
| DT027018UM |
| CHP271A06NA |
| 270L101A |
| 270Z101A |
| 270Z121 |
| 270Z121A |
| 270Z121H |
| 270L121A |
| FC5009F005BS |
| FC5009F005XS |
| FC5009Q005BS |
| FC5009Q005XS |
| FFKPVL150095ABS |
| 2062138 |
| 60204D05BN |
| H270Z1005BN |
| MP10301 |
| 935202 |
| SBF2701Z5B |
| 14600406 |
| E0272B1C05 |
| BE270406A |
| BE270406AV |
| DE0272B1C05 |
| BE27L46MB |
| F270015HFB |
| WGH9444 |
| DONP173028 |
| MF03-06499 |
| P173028 |
