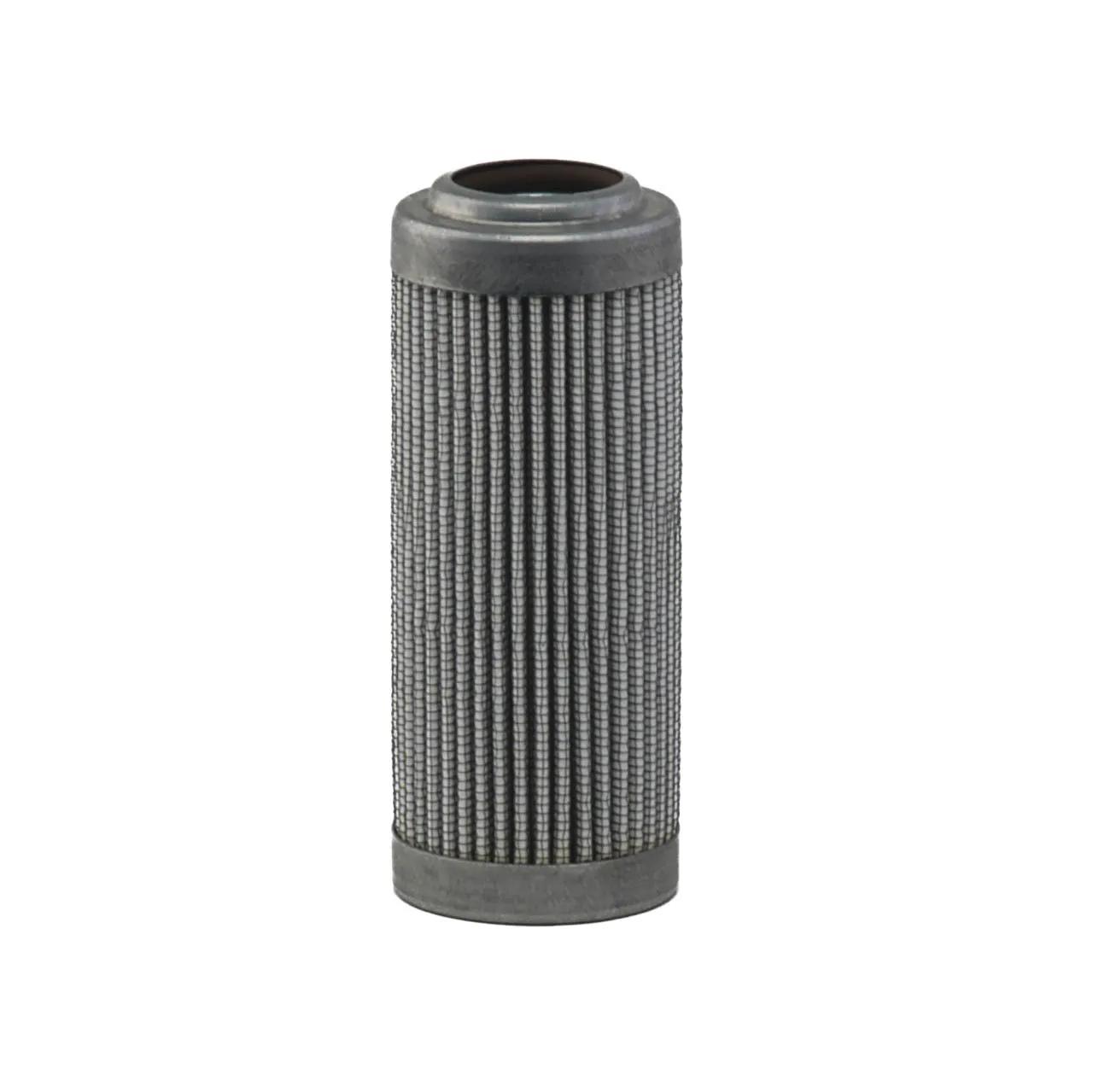

Hydraulic, Cartridge L: 4,41 in, OD: 1,77 in, ID: 0,96 in
#DONP566195
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Efficiency Beta 2 (Micron) | 7 Micron |
| Inner Diameter | 0.97 in (24.6 mm) |
| Length | 4-13/32 in (11.2 cm) |
| Outer Diameter | 1-3/4 in (4.45 cm) |
| Overall Length | 4-13/32 in (11.18 cm) |
| Series | HPK02. W440. FPK02 |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP20L43MB |
| HP20L43MV |
| P566195 |
| 7864 |
| 57864 |
| 84864 |
| DT902045UM |
| 169020RH3SLE000V |
| 169020RH3XLE000V |
| 2HF21H3SLA000V |
| R920H0403A |
| R920H0403H |
| R920Z0403H |
| F90204K3V |
| H9204MAV |
| H9204MAVL |
| M69204MAV |
| M69204MAVL |
| D111G03AV |
| FC7121F003VS |
| FC7121Q003VS |
| HF30382 |
| HF7040F |
| FD111G03AV |
| 1XPH8 |
| 52YR77 |
| SH87114 |
| 10704D03BN |
| H90204003BN3V |
| 0590203VG10EV4 |
| A912282 |
| KMP9020A03V04 |
| LHE282BTA3SB |
| HP0652A03ANP01 |
| HP0652A03AN |
| M1A03NV |
| 925582Q |
| 932610Q |
| G04738 |
| 928935 |
| 932610 |
| 928935Q |
| HF21L3VQ |
| SBF90204Z3B |
| SBF90204Z3V |
| 4YZ3V |
| SBF90204S1V |
| SP010E03V |
| 902043UM |
| 902043UMV |
| 14560403V |
| V3041V1C03 |
| V3041V1V03 |
| V3042V1V03 |
| D42A03GAV |
| G0403LN |
| BE9020403AV |
| ABZFEN0040031XVB |
| R928016864 |
| DE3041V1C03 |
| DE3041VU03 |
| BE20L43MV |
| 7808397 |
| 7817729 |
| 77817729 |
| 891011SM3 |
| P9020D04N3FPM |
| 07160313A |
| 07160313N |
| B645701A |
| CHP282F03XN |
| HC9020FDP4H |
| HC9020FDP4Z |
| HC9020FKP4H |
| HC9020FKP4Z |
| HC9020FUP4H |
| HC9020FUP4Z |
| HC9020FCP4H |
| HC9020FCP4Z |
| AC9999F12Z |
| HC9020FMP4Z |
| 2902L03V04 |
| 3902GGCV04 |
| 801BGC02V4 |
| 8902DGDV04 |
| 8902L03V04 |
| CH152FT12 |
| SF902043UMV |
| HC9020FRP4Z |
| HC9020FHP4Z |
| KMP9020AKF4V |
| M1A03NVP01 |
| 104029 |
| 020609 |
| 2060902 |
