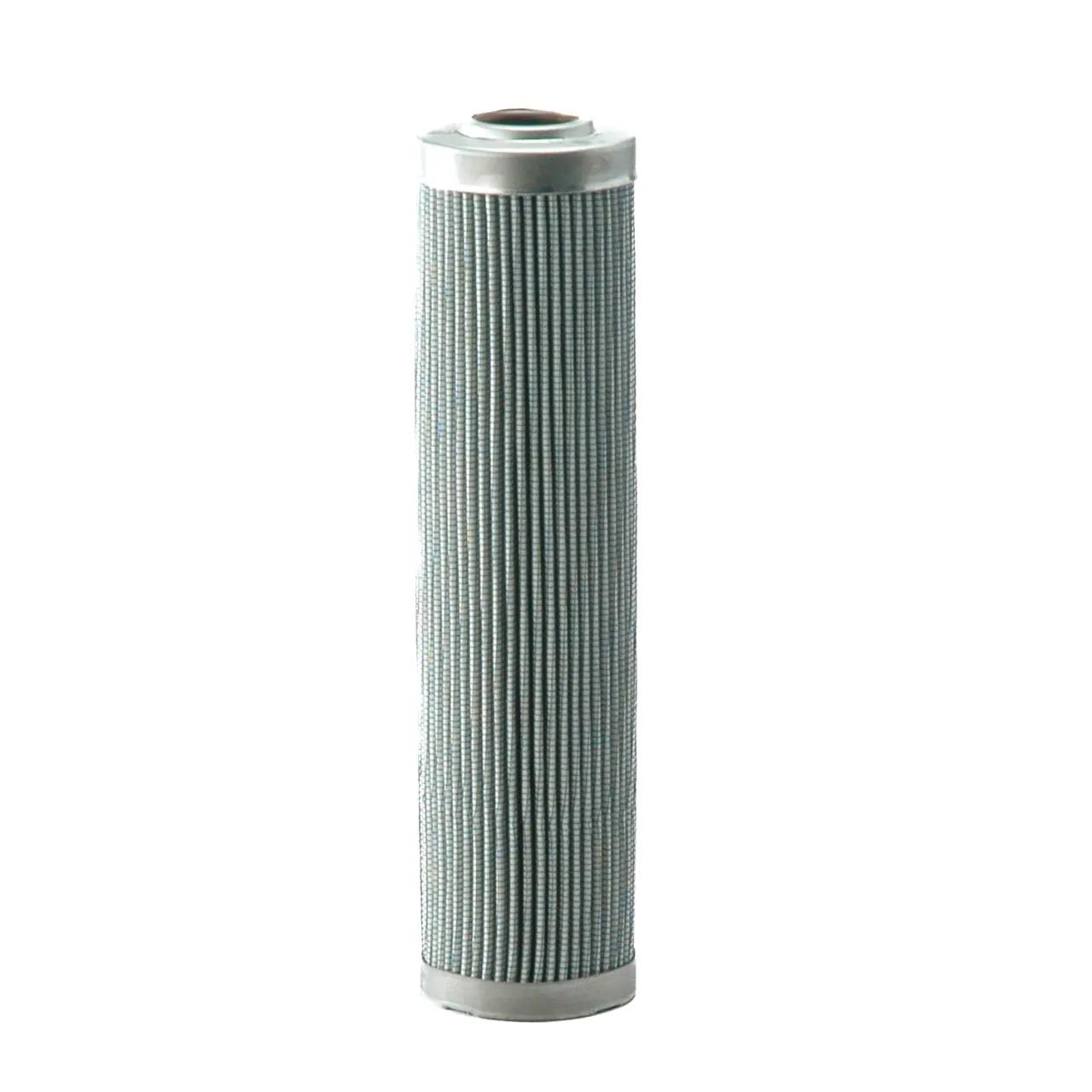

Hydraulic, Cartridge L: 4,61 in, OD: 1,97 in, ID: 0,94 in
#DONP566391
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Inner Diameter | 0.94 in (23.9 mm) |
| Length | 4-39/64 in (11.71 cm) |
| Outer Diameter | 1-31/32 in (5 cm) |
| Overall Length | 4.62 in (117.4 mm) |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566391 |
| DT980042UM |
| LH95288 |
| LH95288V |
| SBF98004Z1B |
| SBF98004Z1V |
| HC9800FDZ4H |
| HC9800FDZ4Z |
| HC9800FKZ4H |
| HC9800FKZ4Z |
| HC9800FUZ4H |
| HC9800FUZ4Z |
| HC9800FCZ4H |
| HC9800FCZ4Z |
| HC9800FRZ4H |
| HC9800FRZ4Z |
| HC9800FHZ4H |
| HC9800FHZ4Z |
| KMP9800AKC4B |
| KMP9800AKC4V |
| SBF9800-4Z1B |
| SBF9800-4Z1V |
