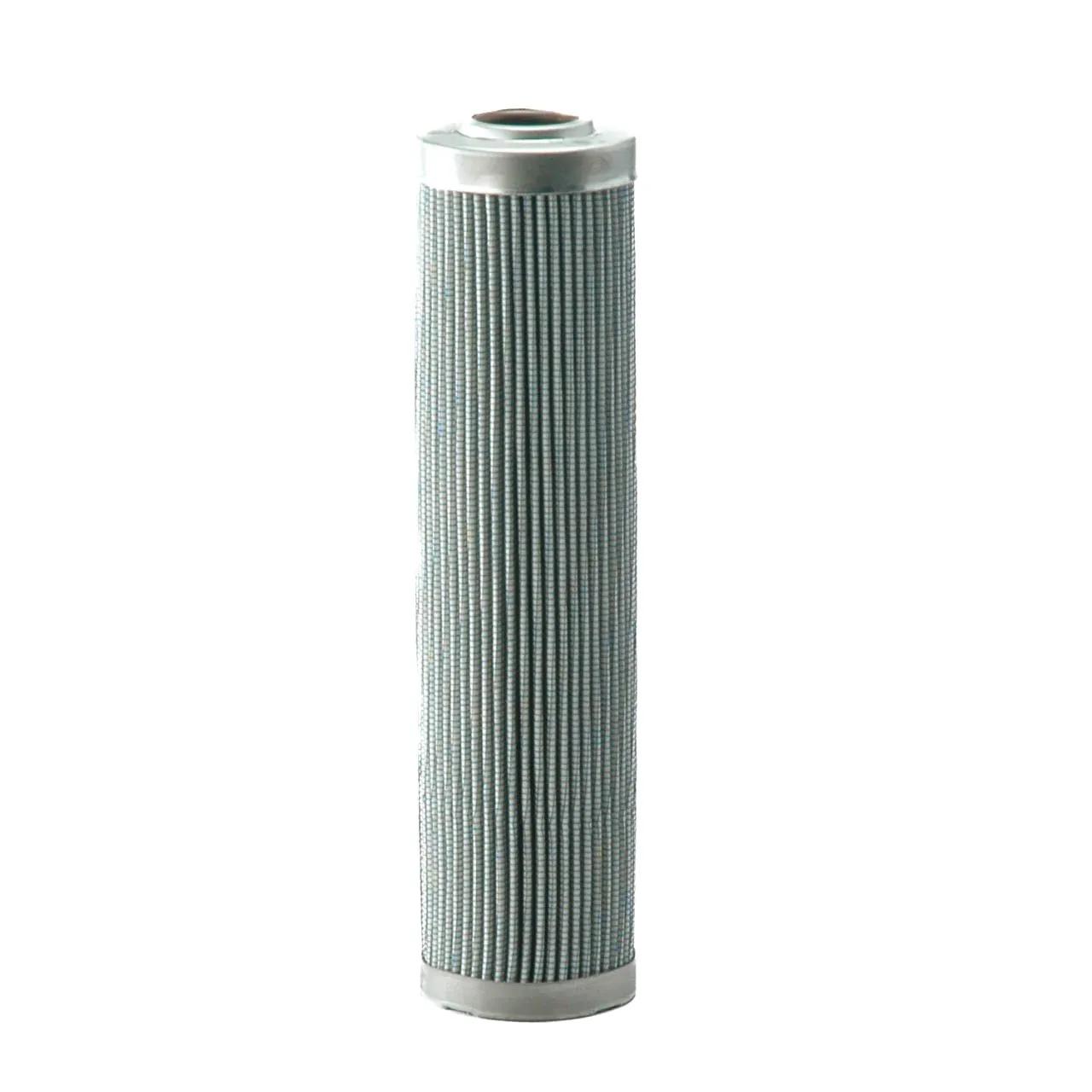

Hydraulic, Cartridge L: 4,61 in, OD: 1,97 in, ID: 0,95 in
#DONP566394
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 0.95 in (24.2 mm) |
| Length | 4-39/64 in (11.71 cm) |
| Outer Diameter | 1-31/32 in (5 cm) |
| Overall Length | 4.62 in (117.4 mm) |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566394 |
| D44A10GAV |
| PT9435MPG |
| DT9800414UM |
| R980H0412A |
| HF30197 |
| SH93131 |
| 11304D12BN |
| LHE421BTA10SB |
| HC9800FDDS4H |
| HC9800FDDS4Z |
| HC9800FDS4Z |
| HC9800FMDS4H |
| HC9800FMDS4Z |
| HC9800FMS4Z |
| 930190Q |
| SBF98004Z10B |
| SBF98004Z10V |
| 9800412UMV |
| EPB21NFC |
| E6011B1C10 |
| E6011V1C10 |
| S0410LN |
| CHP423F10XN |
| HC9800FDS4H |
| HC9800FKDS4H |
| HC9800FKDS4Z |
| HC9800FKS4H |
| HC9800FKS4Z |
| HC9800FUDS4H |
| HC9800FUDS4Z |
| HC9800FCDS4H |
| HC9800FCDS4Z |
| HC9800FCS4Z |
| HC9800FRDS4H |
| HC9800FRS4Z |
| HC9800FRDS4Z |
| HC9800FHDS4H |
| HC9800FHDS4Z |
| HC9800FHS4Z |
| KMP9800AKM4V |
| 02060946 |
| 1.13.04D12BN |
| HC9800FCS4H |
| SBF-9800-4Z10B |
| SBF-9800-4Z10V |
| SBF9800-4Z10B |
| SBF9800-4Z10V |
| 9800412UM |
| 2060946 |
