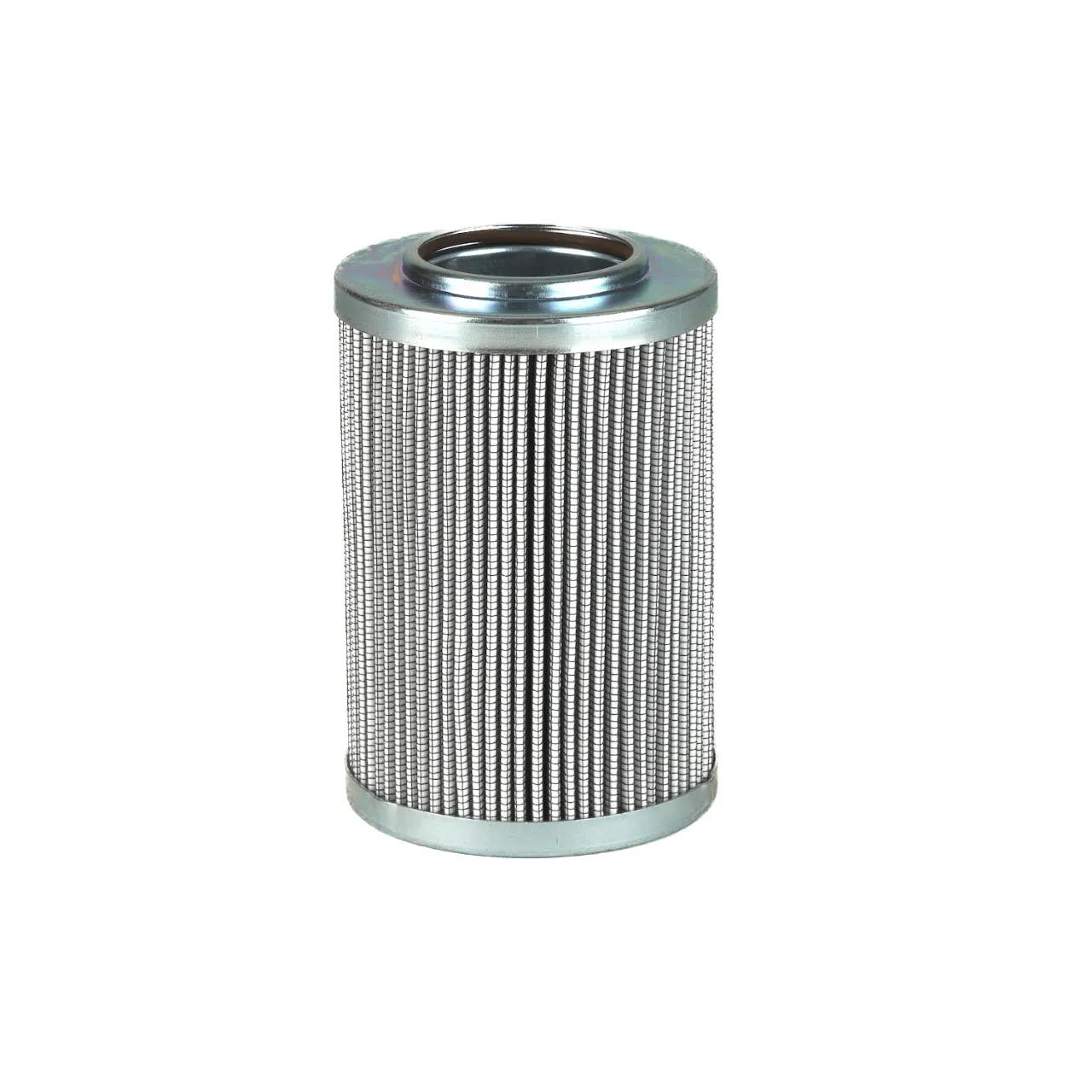

Hydraulic, Cartridge L: 4,61 in, OD: 3,1 in, ID: 1,62 in
#DONP566206
Product Overview
HYDRAULIC FILTER, CARTRIDGE DT
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.62 in (41.2 mm) |
| Length | 4-39/64 in (11.71 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 4.65 in (118.2 mm) |
| Series | W061. W350. FPK04. W620 |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP60L46MB |
| HP60L46MV |
| P566206 |
| DT960048UM |
| 169600RH6SLE000V |
| 169600RH6XLE000V |
| R960H0406A |
| F96004K6V |
| H9604MCV |
| H9604MCVL |
| M69604MCV |
| M69604MCVL |
| D140G06AV |
| FC7005F005VK |
| FC7005Q005VK |
| FD140G06AV |
| 52YR84 |
| 1XPJ7 |
| SH87148V |
| 11104D06BN |
| 2077923 |
| 11104D06BNV |
| H96004005BN3V |
| 0596006VG10EV4 |
| A912418 |
| KM960046V |
| KMP9600A06V04 |
| LH95087V |
| MP5233 |
| AC9600FDN4Z |
| AC9600FMN4Z |
| AC9600FKN4Z |
| 926841Q |
| 932647Q |
| 932650Q |
| 932647 |
| 932650 |
| G04048 |
| G04048Q |
| G04191 |
| G04191Q |
| R960H0406H |
| R960Z0406H |
| 9600L051F1 |
| 9600L062F1 |
| SBF96004Z5B |
| SBF96004Z5V |
| 960046UM |
| 960046UMV |
| EPB31NFB |
| 14840406V |
| V6021V1C05 |
| E6021B1C05 |
| E6021V1C05 |
| W0406LN |
| BE9600406AV |
| R928016964 |
| DE6021V1C05 |
| 383012096C |
| BE60L46MV |
| 891016SM6 |
| P9600D04N6FPM |
| CHP625F06XN |
| HC9600FDN4H |
| HC9600FDN4Z |
| HC9600FKN4H |
| HC9600FKN4Z |
| HC9600FUN4H |
| HC9600FUN4Z |
| HC9600FCN4H |
| HC9600FCN4Z |
| AC9600FUN4Z |
| HC9600FMN4Z |
| HF3015HFV |
| 2960L06V04 |
| 3960GGEV04 |
| 8960DGGV04 |
| 8960L06V04 |
| CH801FC12 |
| AC9600FRN4Z |
| AC9600FCN4Z |
| AC9600FHN4Z |
| 02060935 |
| 1.11.04D06BN |
| 383012 |
| 2060935 |
