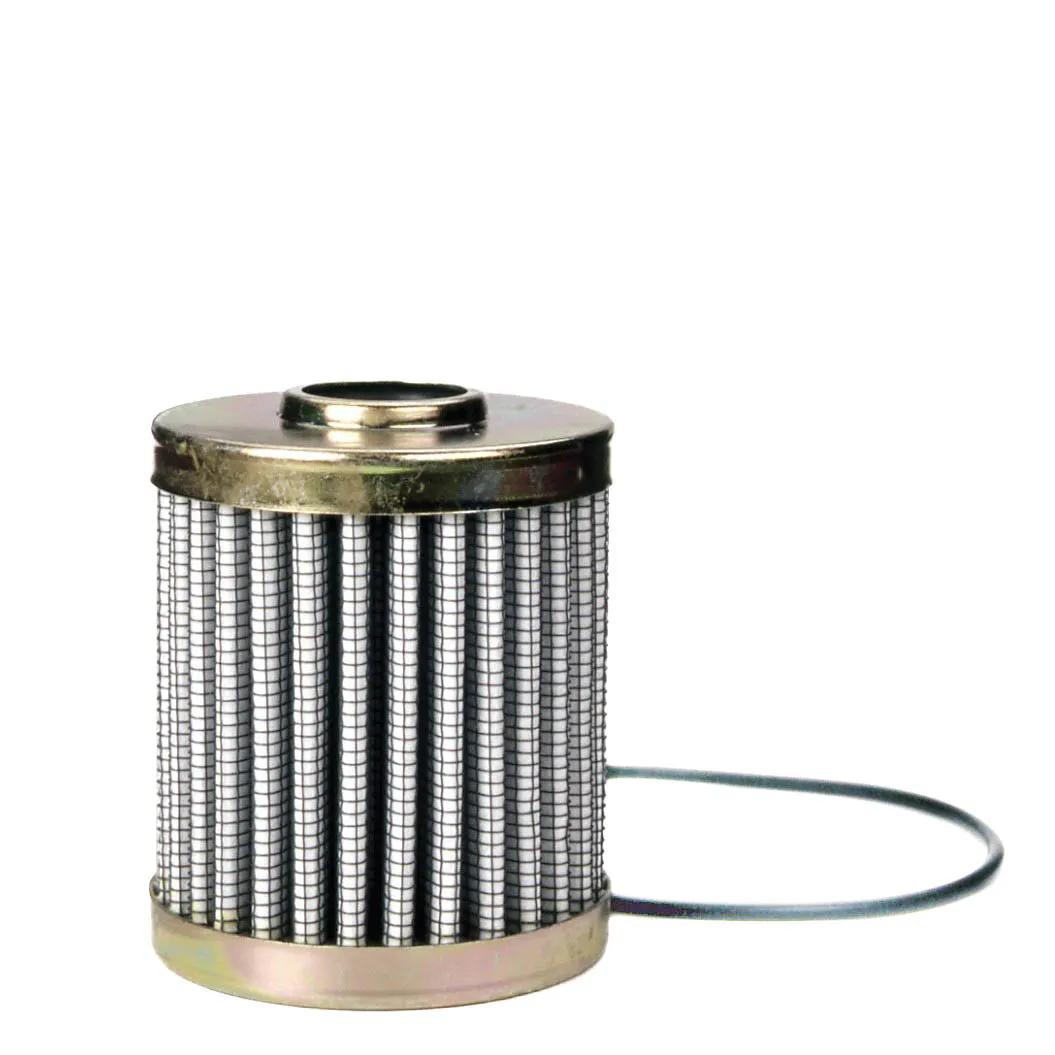

Hydraulic, Cartridge L: 4,8 in, OD: 2,2 in, ID: 0,77 in
#DONP567009
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 0.77 in (19.6 mm) |
| Length | 4-51/64 in (12.19 cm) |
| Outer Diameter | 2-13/64 in (5.59 cm) |
| Overall Length | 4.83 in (122.7 mm) |
| Length Range | 4 to 4.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P567009 |
| DT017025UM |
| CHP172A03NA |
| 170L220A |
| 170Z220 |
| 170Z220A |
| 170Z220H |
| D911G03A |
| 60106D03BN |
| SBF1702Z3B |
| V0172B2C03 |
| E0172B2C03 |
| F170030HFB |
| HP17L43MB |
