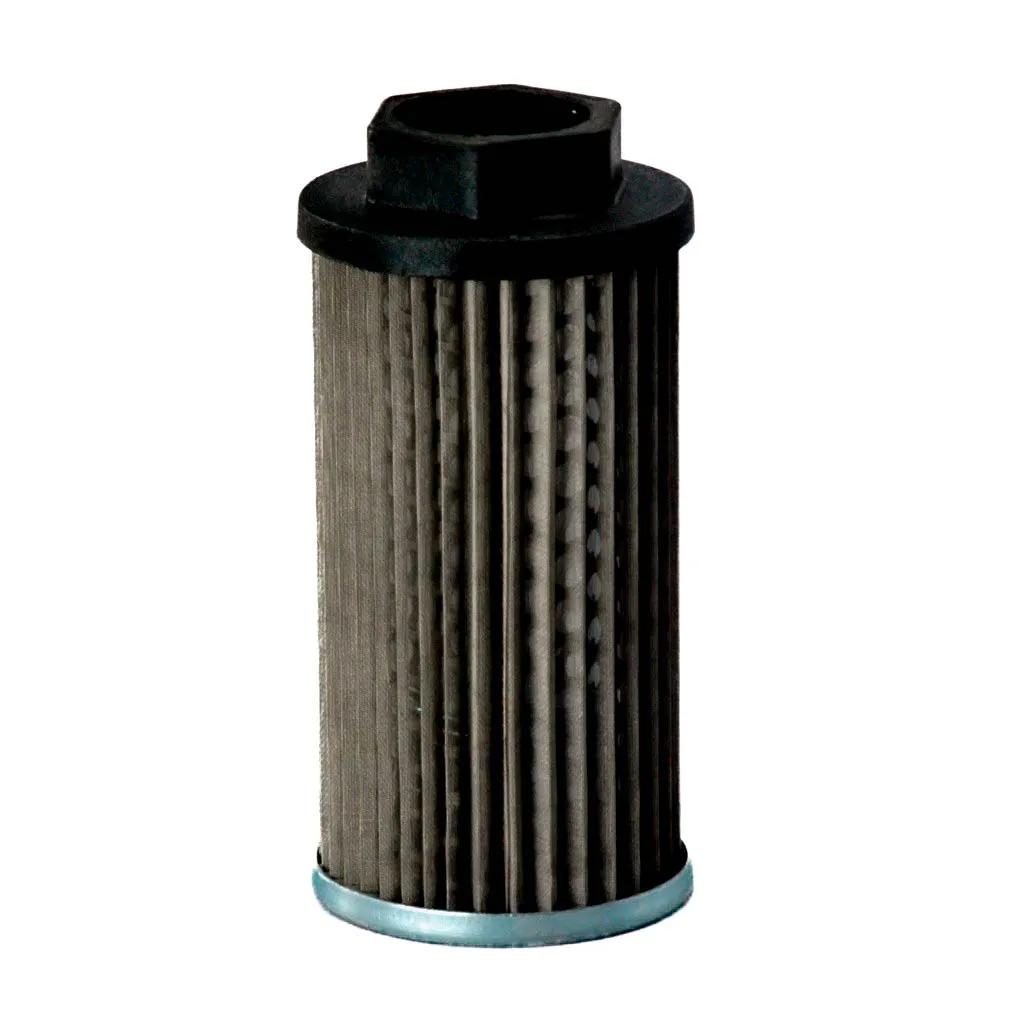

Hydraulic, Cartridge L: 5,1 in, OD: 2,7 in, ID: 1,6 in
#DONP562227
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.91 psi (0.2 bar) |
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 2 | 150 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Inner Diameter | 1.6 in (40.7 mm) |
| Length | 5-3/32 in (12.93 cm) |
| Outer Diameter | 2-45/64 in (6.86 cm) |
| Length Range | 5 to 5.99 in |
| Style | Strainer |
| Thread Size | 1 NPT |
Interchanges & Equivalent parts:
| P562227 |
| SH77643 |
| 2055400 |
| SFE50G125A10BYP |
| PEC101100RV3 |
| P101100RV3 |
| SFE50G74A10BYP |
| DN P562227 |
| MF0423596 |
| 2191-P562227 |
| DONP562227 |
| F98B125TB |
| SFE50G125A10 |
