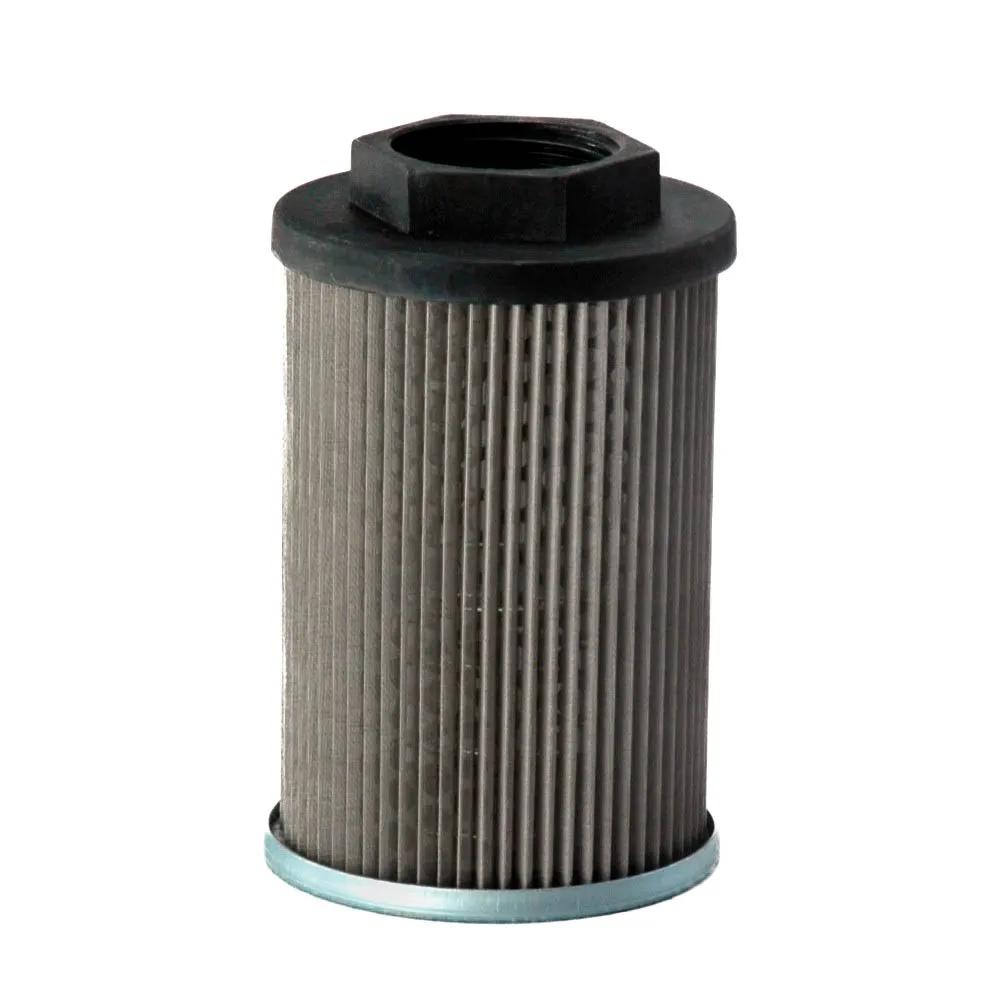

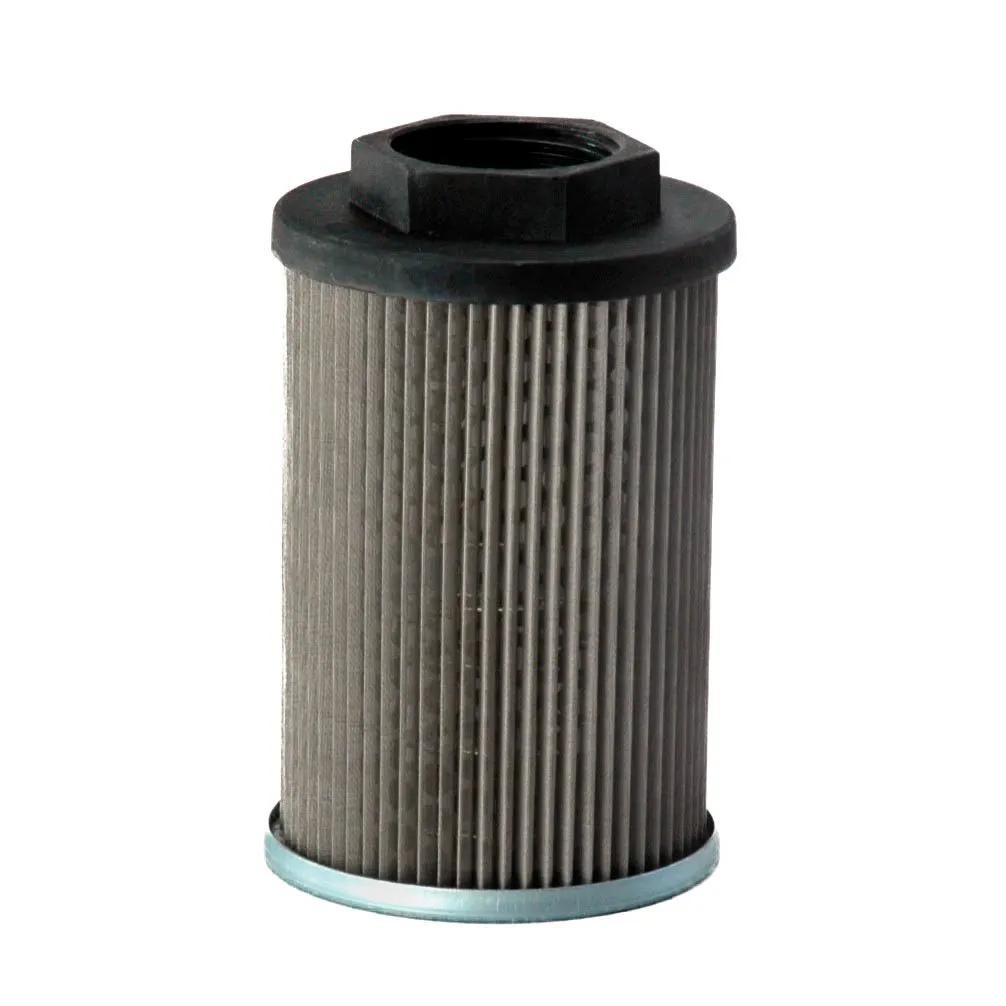

Hydraulic, Cartridge L: 5,1 in, OD: 3,4 in, ID: 2 in
#DONP562229
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 2.91 psi (0.2 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 149 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 5-3/32 in (12.93 cm) |
| Outer Diameter | 3-13/32 in (8.66 cm) |
| Length Range | 5 to 5.99 in |
| Style | Strainer |
| Thread Size | 1 1/4 NPT |
Interchanges & Equivalent parts:
| P562229 |
| SH77638 |
| PEC20114100RV3 |
| PEC2014100RV3 |
| P20114100RV3 |
| F99B125N6TB |
| SFE80G74A10BYP |
| DN P562229 |
| MF0423676 |
| 2191-P562229 |
| DONP562229 |
