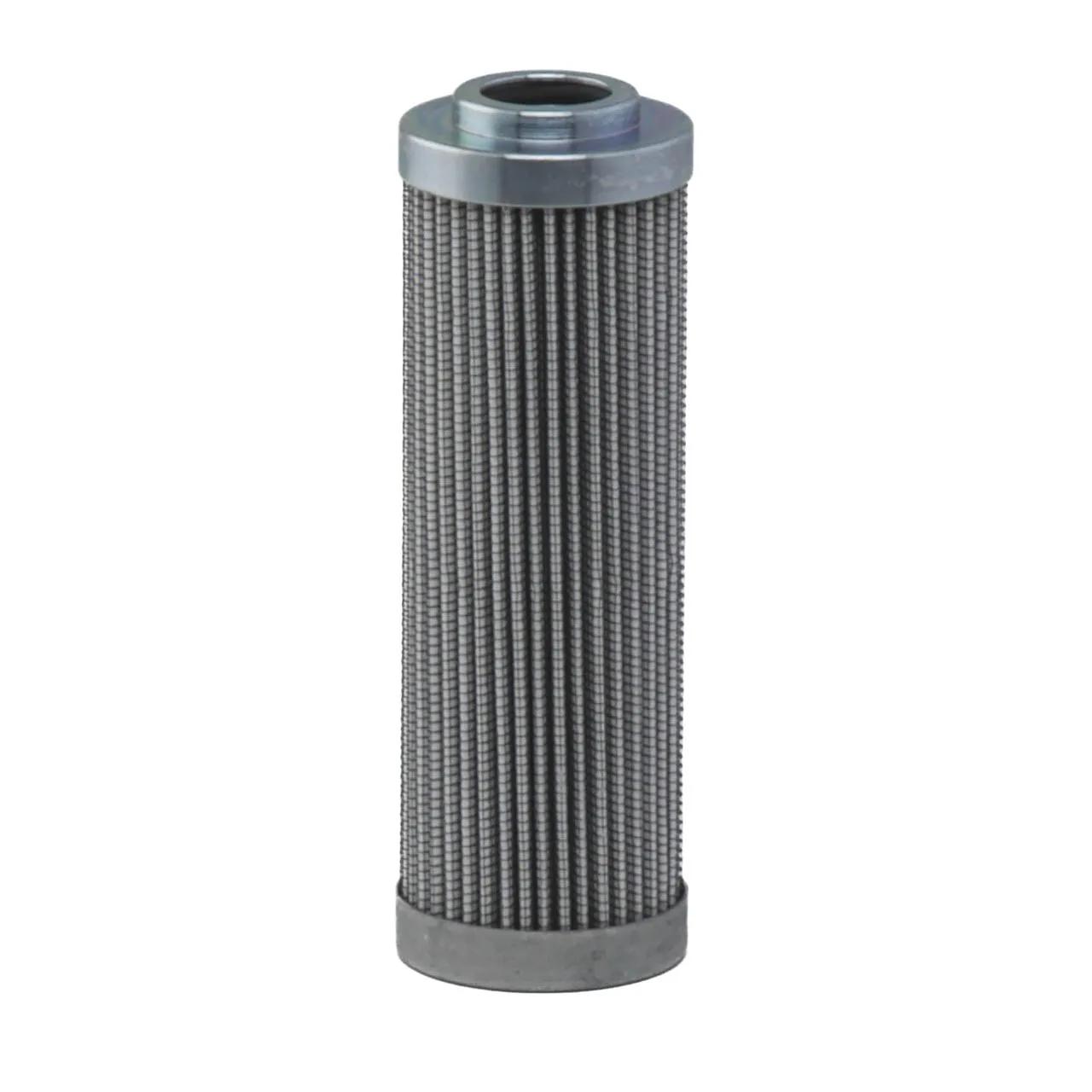

Hydraulic, Cartridge L: 5,28 in, OD: 1,73 in, ID: 0,71 in
#DONP567065
Product Overview
HYDRAULIC FILTER, CARTRIDGE DT
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Gasket ID | 0.74 in (18.8 mm) |
| Gasket OD | 0.94 in (23.9 mm) |
| Inner Diameter | 0.71 in (18.1 mm) |
| Length | 5-9/32 in (13.41 cm) |
| Outer Diameter | 1-47/64 in (4.39 cm) |
| Overall Length | 5.28 in (134.2 mm) |
| Length Range | 5 to 5.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HPNL53MB |
| HPNL53MV |
| P567065 |
| DTN15UM |
| WG568 |

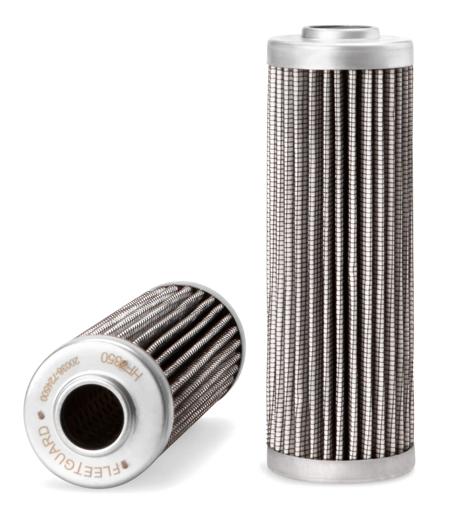

| HF7350 |
| NS3 |
| NZ3 |
| NZ3V |
| NS1 |
| NS1V |
| 15970503 |
| 15970503V |
| E3051B1C03 |
| E3051V1C03 |
| BENL53MB |
| BENL53MV |
| 1108720 |
