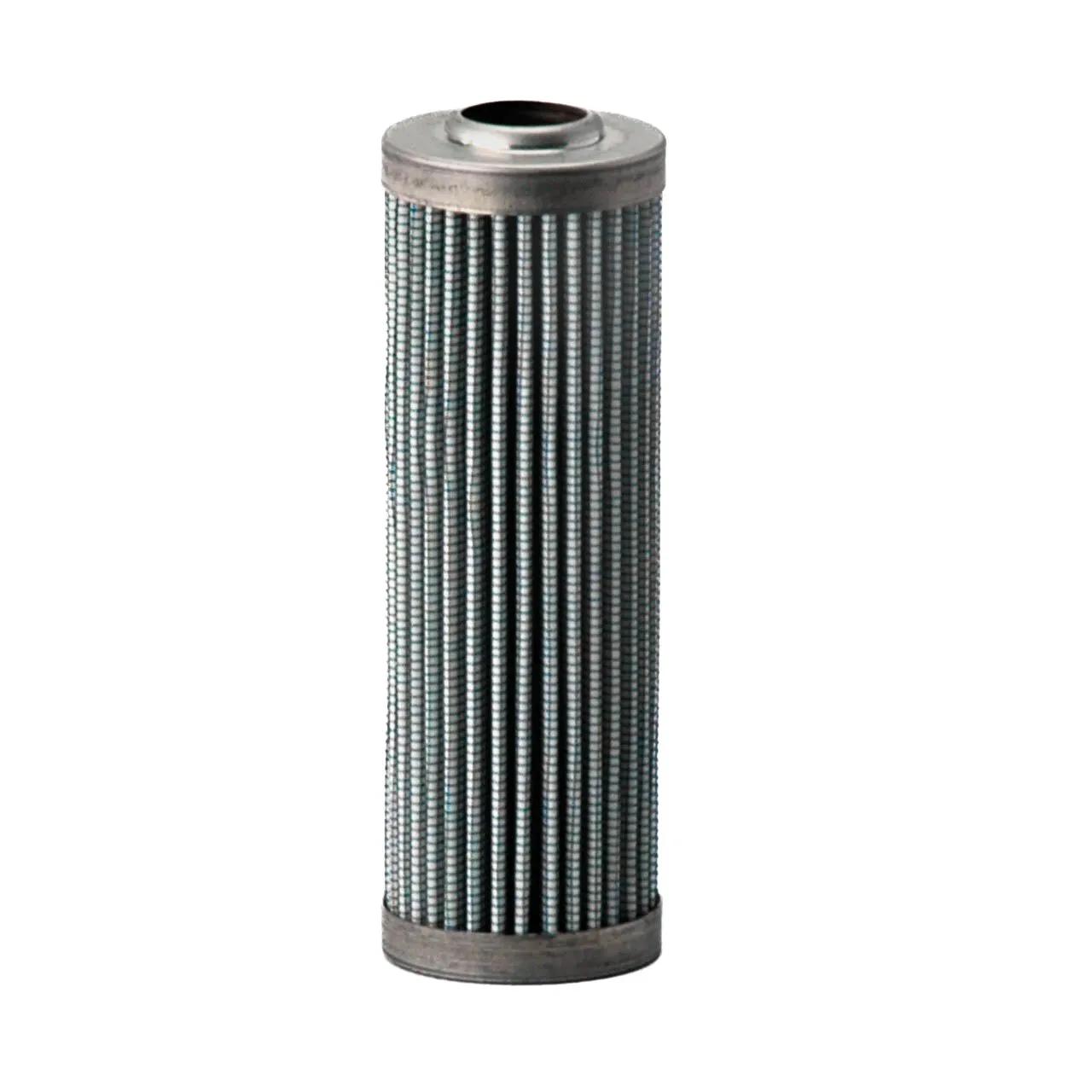

Hydraulic, Cartridge L: 5,28 in, OD: 1,74 in, ID: 0,77 in
#DONP567066
Product Overview
HYDRAULIC FILTER, CARTRIDGE DT
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Gasket ID | 0.74 in (18.8 mm) |
| Gasket OD | 0.94 in (23.9 mm) |
| Inner Diameter | 0.77 in (19.6 mm) |
| Length | 5-9/32 in (13.41 cm) |
| Outer Diameter | 1-47/64 in (4.39 cm) |
| Overall Length | 5.27 in (133.9 mm) |
| Length Range | 5 to 5.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HPNL56MB |
| HPNL56MV |
| P567066 |
| DTN18UM |
| NZ5 |
| NZ5V |
| NS3V |
| 15970506 |
| 15970506V |
| E3051B1C05 |
| E3051V1C05 |
| 365820 |
| BENL56MB |
| BENL56MV |
| 521551 |
| 0521551 |
