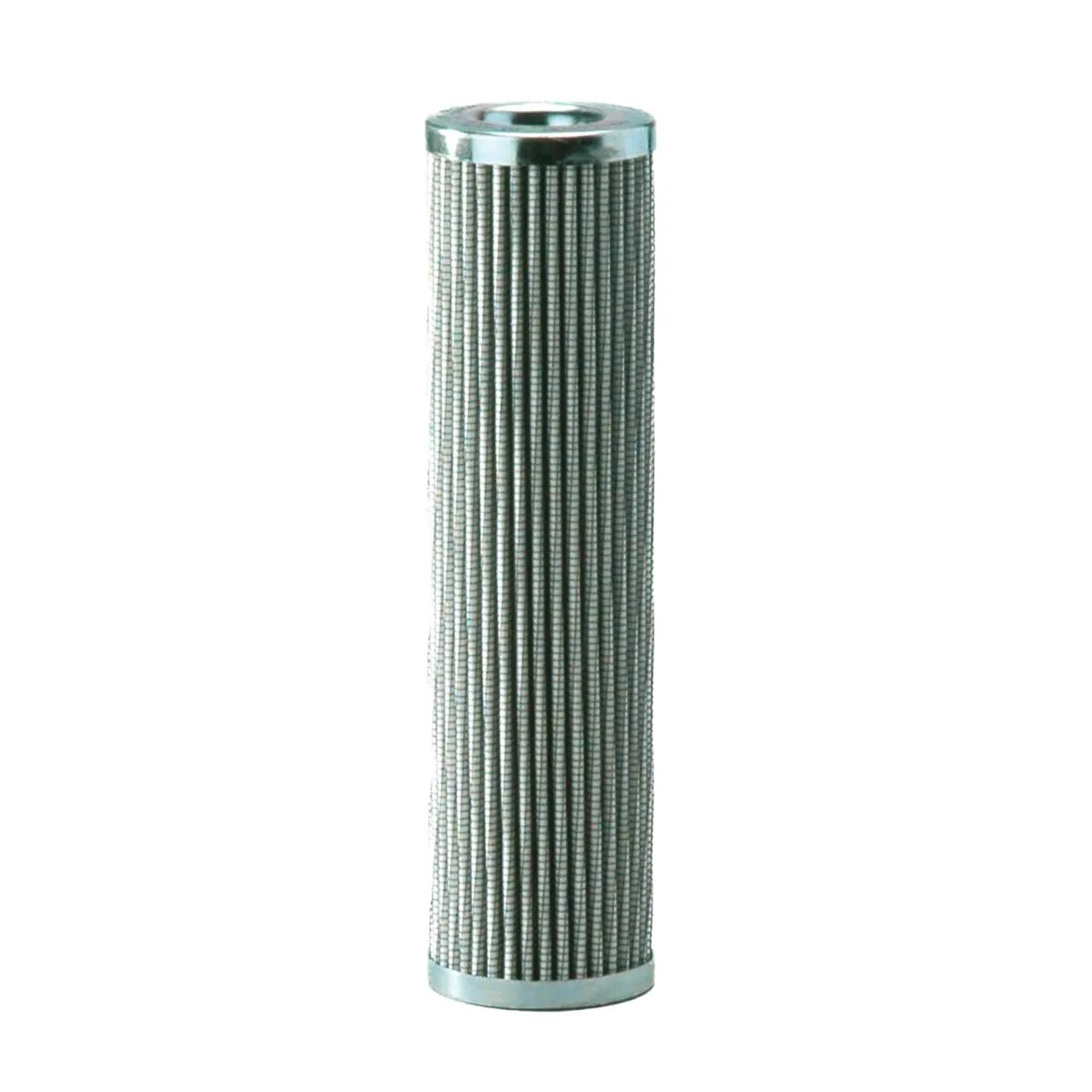

Hydraulic, Cartridge L: 5 in, OD: 2,44 in, ID: 1,02 in
#DONP567044
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 1.02 in (26 mm) |
| Length | 5 in (12.7 cm) |
| Outer Diameter | 2-7/16 in (6.2 cm) |
| Overall Length | 5.38 in (136.7 mm) |
| Length Range | 5 to 5.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP170L525MB |
| HP170L525MV |
| P567044 |
| DT25P125UM |
| D720G25AV |
| HF7813 |
| MP11015 |
| HC2256FDT6H |
| HC2256FMT6H |
| 922924 |
| 932016 |
| GO1284 |
| SBF10505Z25V |
| HC2256FKT6H |
| HC2256FCT6H |
| HC2256FHT6H |
| HC2256FRT6H |
| MP11015P01 |
| 933135Q |
| SBF1050-5Z25V |
