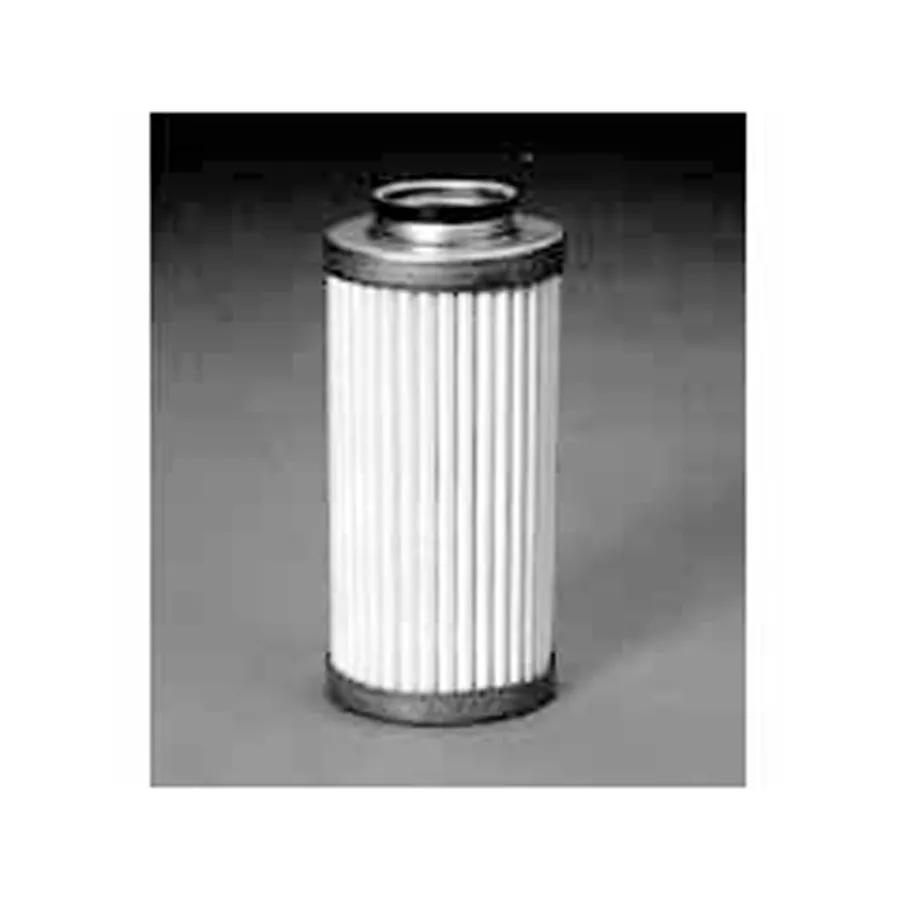

Hydraulic, Cartridge L: 5 in, OD: 2,44 in, ID: 1 in
#DONP164556
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
Diameter Range | 2 to 3 in |
Efficiency Beta 1000 | 26 Micron |
Efficiency Beta 1000 (Micron) | 26 Micron |
Efficiency Beta 2 | 9 Micron |
Efficiency Beta 2 (Micron) | 9 Micron |
Inner Diameter | 1 in (25.4 mm) |
Length | 5 in (127 mm) |
Outer Diameter | 2.44 in (61.98 mm) |
Length Range | 5 to 6 in |
Style | Cartridge |
Interchanges & Equivalent parts:
3I1860, HF7739, PT8887, 1046Z357, 2191-P164556, 922625, DN P164556, DN P164556, DONP164556, LH4998, 14530525V, 30P0EAM202F1, 30P0EAM251F1, 30P0EAM252F1, 926625, 933135, BE170525AV, BE922624, BE922625, BE933135Q, D01B25CAV, D720C25AV, G01303, G01934, G01934Q, HC2256FCT6Z, HC2256FDT6Z, HC2256FKT6Z, HC2256FMT6Z, HC2256FUT6Z, HFR87739, HP170L525MB, HP170L525MV, MP3811, PT887, SH51283, V30PV1C20, WGH1898, MF0059606, BE170L525MV, 22024, HF164556, 810985
