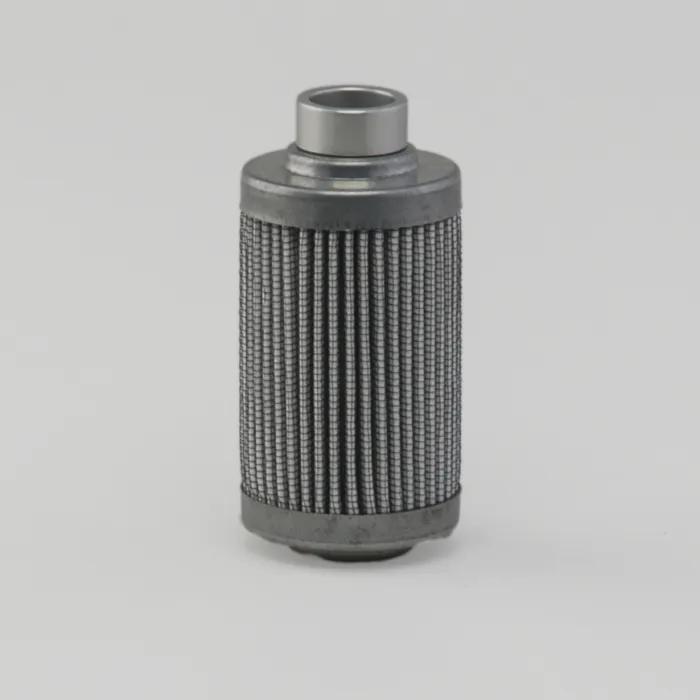

Hydraulic, Cartridge L: 6,29 in, OD: 1,88 in, ID: 0,87 in
#DONP566966
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 43.52 psi (3 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 0.87 in (22.1 mm) |
| Length | 6-19/64 in (16 cm) |
| Outer Diameter | 1-7/8 in (4.78 cm) |
| Overall Length | 6.69 in (170 mm) |
| Length Range | 6 to 6.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP06RNL76MB |
| HP06RNL76MV |
| P566966 |
| P173161 |
| DT0110R8UM |
| RHR110G05B |
| RHR110G05V |
| FRHR110G05B |
| SH74064 |
| 0110R005BN |
| 0110R005BN3HC |
| 0110R005BN4HC |
| 0110R005BNHC |
| 1262944 |
| 1262948 |
| 2059095 |
| 2067159 |
| 2084472 |
| 0110R005BN3HCV |
| 0110R005BN4HCV |
| 0110R005BN4HCVSO103H |
| 0110R005BNHC2 |
| 0110R005BNHCV |
| 0110R005ON |
| 0110R005ONV |
| 0110R005ONVSO103H |
| 0110R005PHC |
| 0110R005PHCV |
| 324834 |
| 020110R6VG30HCSP |
| 3248346VG |
| 6730257140 |
| HD6141 |
| 893974 |
| DC1101C06ANPXX |
| DK230A005ANCPXX |
| HC2196FDN6H |
| HC2196FDN6H50 |
| HC2196FDN6Z |
| HC2196FDN6Z50 |
| HC2208FDN6H |
| HC2208FDN6Z |
| HC2196FMN6H |
| HC2196FMN6H50 |
| HC2196FMN6Z |
| HC2196FMN6Z50 |
| HC2208FMN6H |
| HC2208FMN6Z |
| PR3257 |
| 0110EAR062F1 |
| 0110EAR062N1 |
| SBF0110RZ5B |
| SBF0110RZ5V |
| SBF0110RZ05 |
| SBF0110RZ05B |
| SBF0110RZ05V |
| HY13169 |
| RE030E05B |
| RE030G05B |
| RE030G05B2 |
| RE030G05V |
| 110R005N |
| 110R005NV |
| 15250706 |
| 15250706V |
| ER112B2C05 |
| ER112V2C05 |
| VR112B2C05 |
| VR112V2C05 |
| R38D05GV |
| DER112B2C05 |
| DER112V2C05 |
| BE06RNL76MB |
| BE06RNL76MV |
| HC2196FKN6H |
| HC2196FKN6Z |
| HC2196FCN6H |
| HC2196FCN6Z |
| HC2208FCN6H |
| HC2196FCN6H50 |
| HC2196FCN6Z50 |
| HC2196FKN6H50 |
| HC2196FKN |
