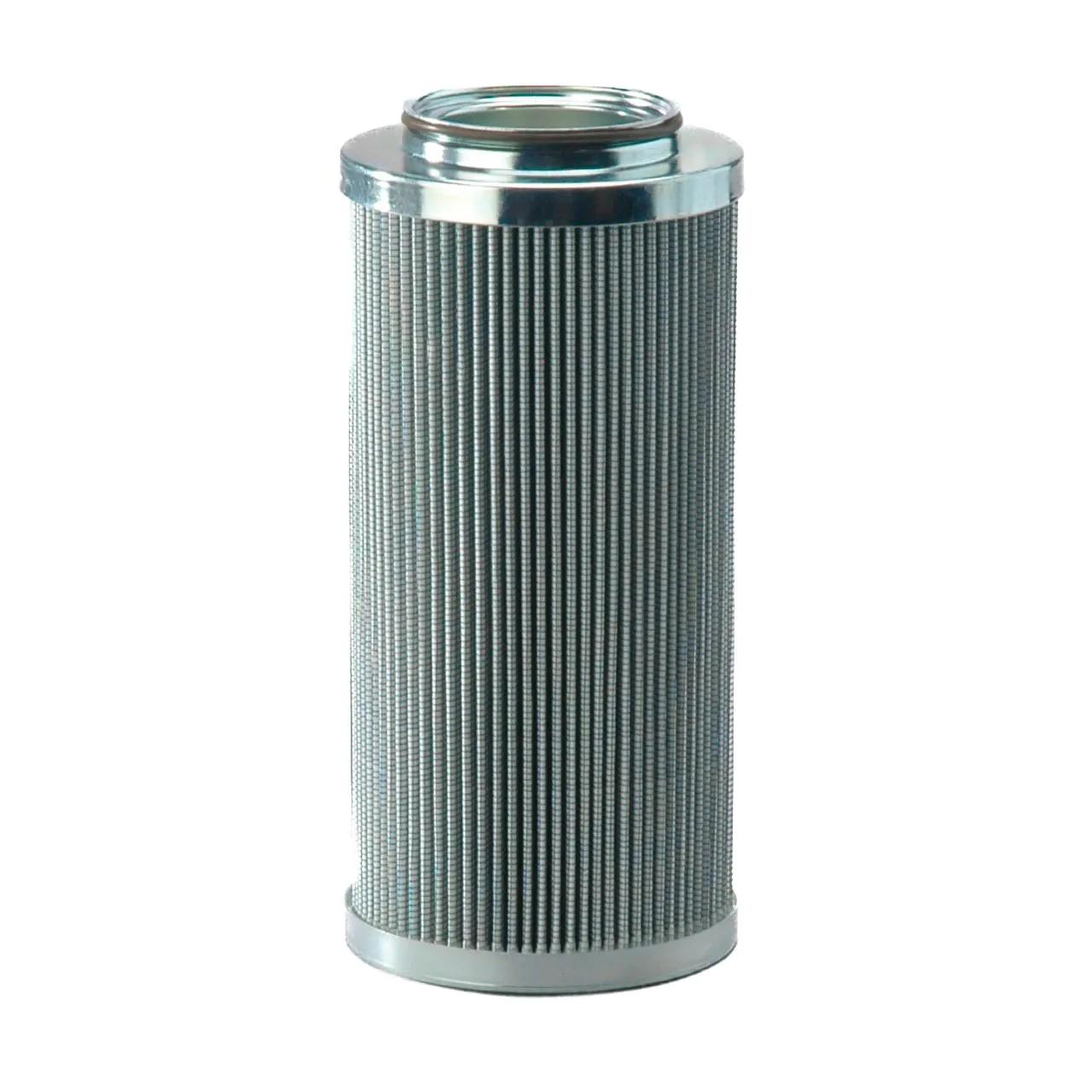

Hydraulic, Cartridge L: 7,4 in, OD: 3,6 in, ID: 2,18 in
#DONP567050
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 2.18 in (55.4 mm) |
| Length | 7-13/32 in (18.82 cm) |
| Outer Diameter | 3-19/32 in (9.12 cm) |
| Overall Length | 7.79 in (197.9 mm) |
| Length Range | 7 to 7.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P567050 |
| 7886 |
| 57886 |
| DT031P8UM |
| MF0059694 |
| MP4048 |
| 932635Q |
| 976191 |
| G01069 |
| SBF10007Z5B |
| SBF10007Z5V |
| HC2253FDN8H |
| HC2253FKN8H |
| HC2253FUN8H |
| HC2253FCN8H |
| HC2253FRN8H |
| HC2253FHN8H |
| HP310L86MB |
| SBF1000-7Z5B |
| SBF1000-7Z5V |
