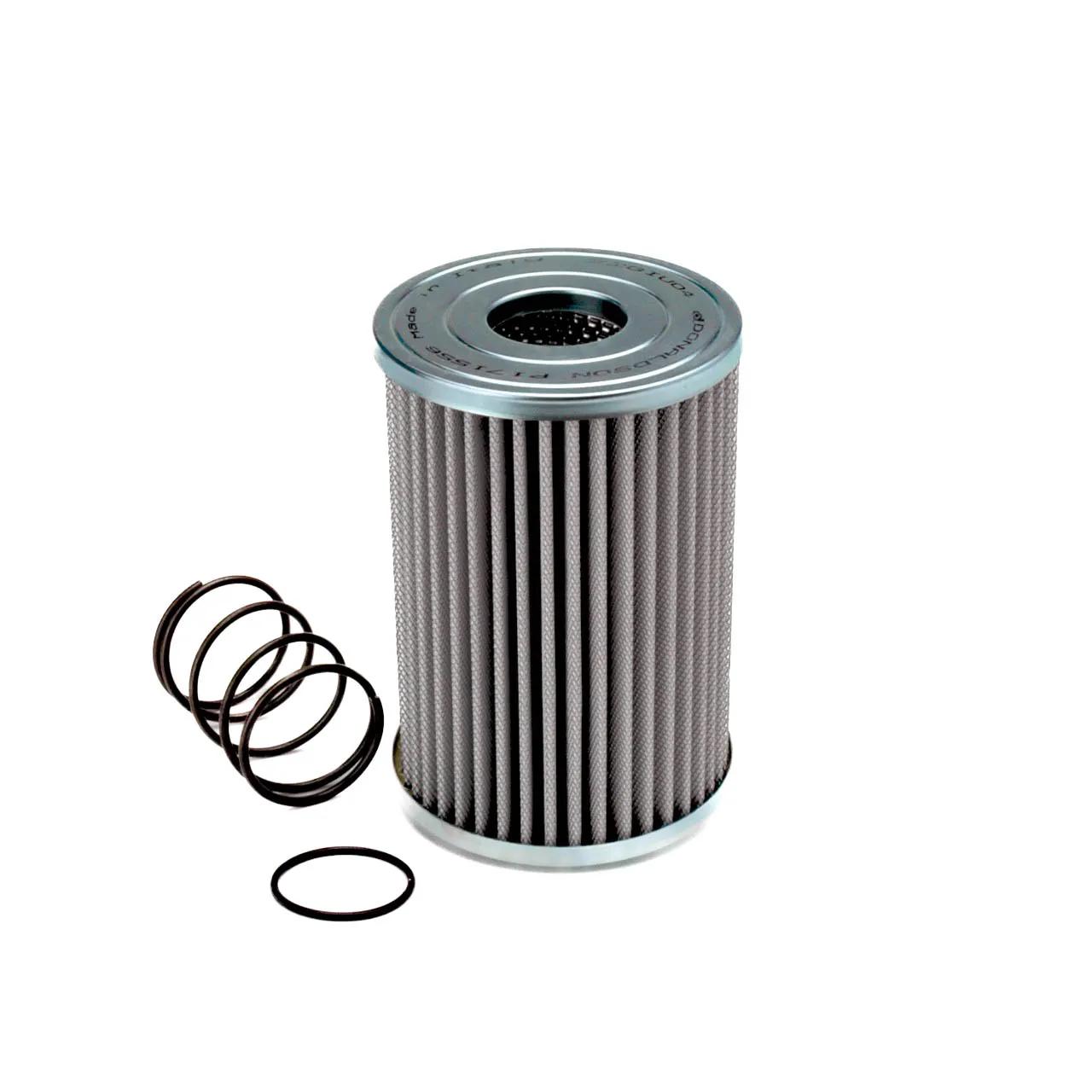

Hydraulic, Cartridge L: 7,98 in, OD: 5,52 in, ID: 2,05 in
#DONP171556
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 2.05 in (52.1 mm) |
| Length | 7-63/64 in (20.27 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Series | FIK |
| Length Range | 7 to 7.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| R25C25GB |
| K070071 |
| K070327 |
| CR32503 |
| R151G25B |
| 140120 |
| RE80FV1 |
| 2191-P171556 |
| CR325/03 |
| DONP171556 |
| F33A25 |
| DN P171556 |
| DN P171556 |
