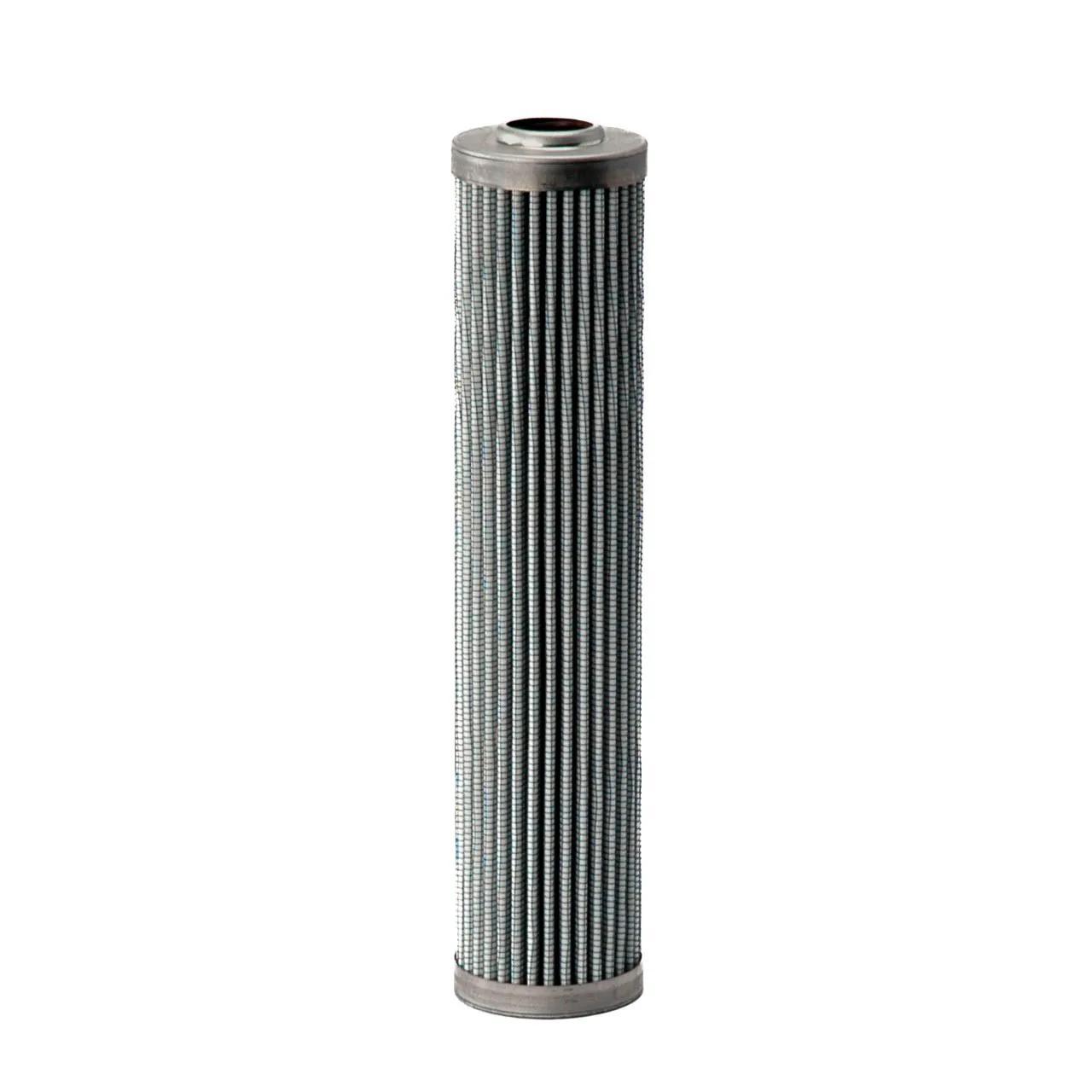

Hydraulic, Cartridge L: 7,99 in, OD: 1,75 in, ID: 0,78 in
#DONP567070
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Gasket ID | 0.74 in (18.8 mm) |
| Gasket OD | 0.94 in (23.9 mm) |
| Inner Diameter | 0.78 in (19.9 mm) |
| Length | 7-63/64 in (20.27 cm) |
| Outer Diameter | 1-3/4 in (4.45 cm) |
| Overall Length | 8.02 in (203.8 mm) |
| Length Range | 7 to 7.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P567070 |
| E3051B2C05 |
| E3051V2C05 |
| MF0614305 |
| HPNL106MB |
| HPNL106MV |
| NNZ5 |
| NNZ5V |
| D10H10CAV |
