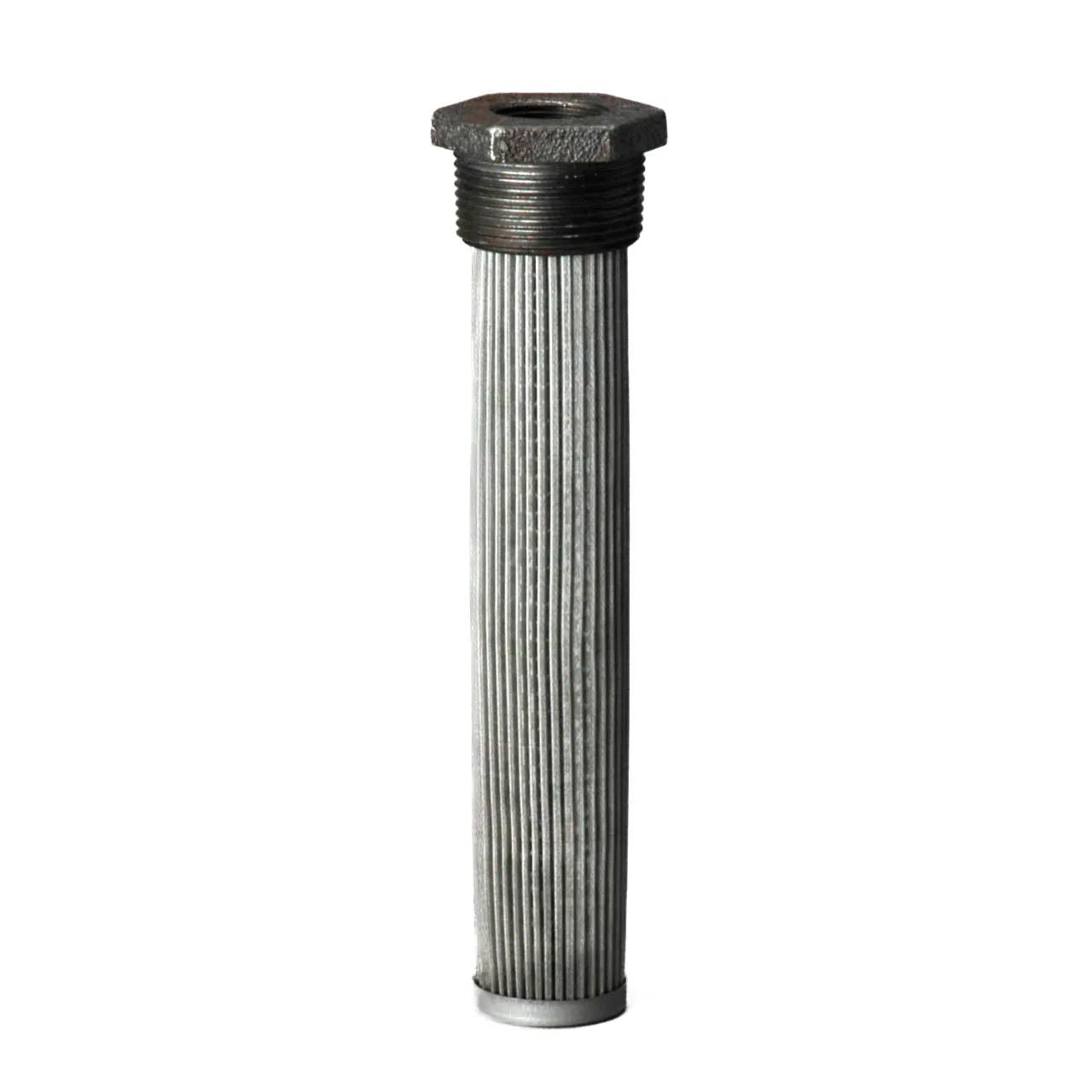

Hydraulic, Cartridge L: 8,18 in, Thread : 3/4 NPT , OD: 1,36 in
#DONP562257
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 5.81 psi (0.4 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 2 | 149 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Length | 8-3/16 in (20.8 cm) |
| Outer Diameter | 1-23/64 in (3.45 cm) |
| Length Range | 8 to 8.99 in |
| Style | Strainer |
| Thread Size | 3/4 NPT |
Interchanges & Equivalent parts:
| P562257 |
| TM10100RV5 |
| HTMSNPT34100RV5 |
| 2191-P562257 |
| DONP562257 |
| DN P562257 |
| F32C150B5 |
